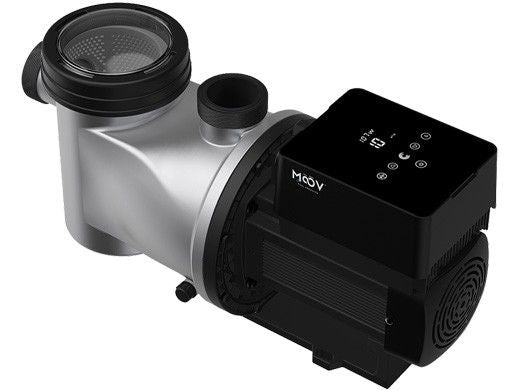

Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THPMoov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV In stock$1,09900
Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP
Shop all Moov

Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV

Ask a questionMPN MP15AIDV
$1,09900
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Wi-Fi built in The Wi-Fi is part of the pump, not a bolt on module or a separate gateway.
  • Two ways to run it Regular mode sets the pump by percentage, and Flow mode controls it by flow instead.
  • PMSM inverter motor A permanent magnet motor under inverter control, which is the design behind the running cost of a variable speed pump.
  • TEFC enclosure Totally enclosed fan cooled, so the windings are shut away from everything else on the equipment pad.
  • Dual voltage Wired for 220/240V at either 50 or 60 Hz.
  • Ready to connect Ships with a 10' pre-wired power cord, on a 56 frame motor with a Viton seal.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV, SKU MOV-10-1001. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV
Moov

Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV

$1,09900
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz
Balboa Instruments

Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz

$30999
Pentair HydroBoost Booster Pump 115/230V 60Hz, 360526
Pentair

HydroBoost Booster Pump 115/230V 60Hz, 360526

$53199
Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S
Balboa

Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S

$33899
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$81799 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,29399 Hayward Power-Flo Matrix W3SP15932S 1.5 HP two speed above ground pool pump with switch Hayward Power-Flo Matrix 1.5 HP 2 Speed with Switch, W3SP15932S$62900 Web Price
Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Pentair 011066 IntelliFlo3 VSF 1.5HP variable speed and flow pool pump Pentair IntelliFlo3 VSF Variable Speed and Flow Pool Pump with Relay Board, 1.5HP 115/208-230V, 011066$1,47799 Hayward Max-Flo XL 1.0 HP max-rated inground pool pump Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$74900 Web Price Waterway PD-270 Power Defender 2.7 HP 230V variable speed pool pump Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270$1,52899 Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,36399 CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010 CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010$74900 Web Price Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001$1,28799 Hayward W3SP1593 Power-Flo Matrix 1.5 HP above ground pool pump with cord Hayward Power-Flo Matrix 1.5HP Pump with 6' Cord, W3SP1593$52900 Web Price Hayward W3SP1592 PowerFlo Matrix 1 HP above ground pool pump with cord Hayward PowerFlo Matrix 1 HP Above Ground Pool Pump with Cord, W3SP1592$50900 Web Price Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$49699

Product details

The Moov MP15AIDV is an Ai Inverter variable speed pool pump rated 1.25 THP, built on a permanent magnet PMSM motor in a TEFC enclosure, with Wi-Fi built into the pump itself.

Two control modes

Regular mode runs the pump by percentage, which is the familiar way to set a variable speed pump. Flow mode controls by flow instead, so the pump targets the flow you want rather than a speed you have guessed at.

The motor

A PMSM motor under inverter control is what makes a variable speed pump worth having, because power draw falls away sharply as speed comes down. The motor is a 56 frame, totally enclosed fan cooled, running a Viton seal.

Power and installation

It is dual voltage, wired for 220/240V at 50 or 60 Hz, and it arrives with a 10 ft pre-wired power cord. Confirm the supply at your equipment pad before ordering, since this is not a 115V pump.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Moov
Manufacturer part number MP15AIDV
UPC 628425350090
Type Ai Inverter variable speed pool pump
Total horsepower 1.25THP
Also listed as 1.25HP
Voltage 220/240V, dual voltage
Frequency 50/60Hz
Motor PMSM, variable speed
Motor enclosure TEFC
Frame 56
Seal Viton
Control modes Regular Mode by percentage, Flow Mode by flow
Connectivity Wi-Fi built in
Power cord 10' pre-wired
Shipping weight 43 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Does the Wi-Fi need a separate module?
No. Wi-Fi is built into the pump.
What voltage does it run on?
220/240V. It is a dual voltage pump and runs at either 50 or 60 Hz.
What is the difference between Regular mode and Flow mode?
Regular mode sets the pump by percentage of speed. Flow mode controls it by flow instead.
Does it come with a power cord?
Yes, a 10' pre-wired cord.
