Waterway PD-270 Power Defender 2.7 HP 230V variable speed pool pumpWaterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270 In stock$1,52899

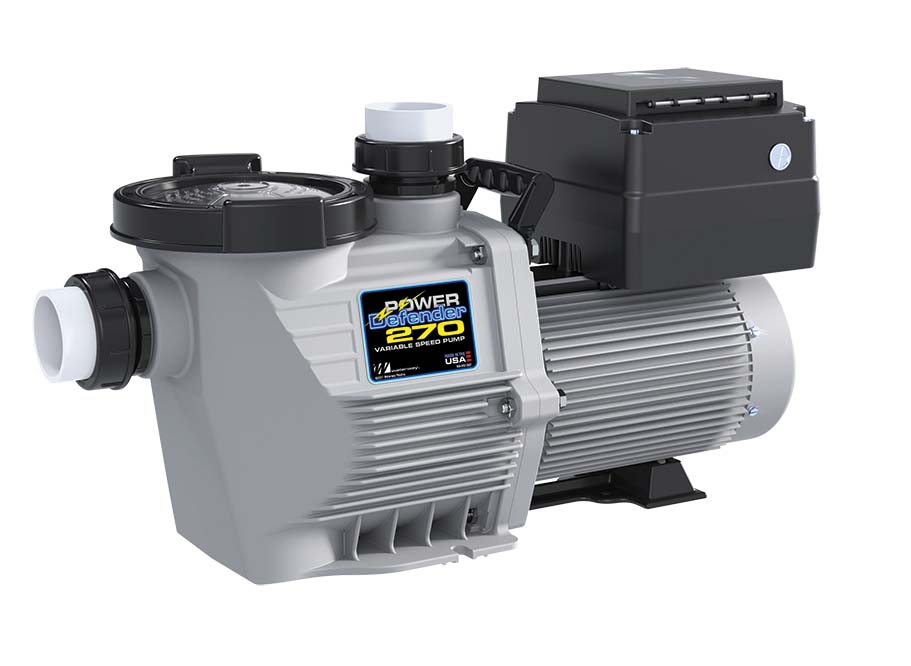

Waterway PD-270 Power Defender 2.7 HP 230V variable speed pool pump
Shop all Waterway

Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270

Ask a questionMPN PD-270
$1,52899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Variable speed, 2.7 HP Programmable speeds let the pump turn over the water slowly for filtering and step up when a cleaner or spa jet needs the flow.
  • Rated to 50 PSI Waterway pressure rates the Power Defender up to 50 PSI.
  • Totally enclosed motor An external fan pulls heat away while the enclosed housing keeps dirt and moisture off the motor.
  • Base for IntelliFlo included The pump comes with a base for IntelliFlo, which simplifies dropping it onto an existing pad.
  • Two self-aligning unions Both unions are in the box, so the plumbing lines up without fighting the pipe.
  • Runs a second device You can wire and program an additional load such as a booster pump or a chlorine generator through the pump.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270, SKU WWP-10-5060. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270
Waterway

2.7 HP 230V Power Defender VSP Champion Pump, PD-270

$1,52899
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$81799 Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,29399
Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV$1,09900 Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Pentair 011533 WhisperFlo VST 2.6 THP variable speed pool pump Pentair WhisperFlo VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, TradeGrade, 011533$1,76699 Pentair 011066 IntelliFlo3 VSF 1.5HP variable speed and flow pool pump Pentair IntelliFlo3 VSF Variable Speed and Flow Pool Pump with Relay Board, 1.5HP 115/208-230V, 011066$1,47799 AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,36399 Hayward W3SP2303VSP MaxFlo VS 1.65 HP 230V variable speed pool pump Hayward MaxFlo VS 1.65 HP 230V Variable Speed Pool Pump, W3SP2303VSP$1,74900 Web Price Hayward W3VSP23420 MaxFlo VS 420 variable speed pump with Omnix control Hayward MaxFlo VS 420 Variable Speed Pump with Omnix, W3VSP23420$1,79900 Web Price Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001$1,28799

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

The Waterway PD-270 Power Defender is a 2.7 HP variable speed in-ground pool pump that runs on 230V. Speeds are programmed at the pump, so it can idle through a long filtration cycle and step up only when a cleaner, a spa or a water feature calls for real flow.

How it is built

The motor is totally enclosed and cooled by an external fan, which keeps dirt and moisture out while holding running temperature down. The shaft seal uses silicon carbide with Viton for wear and chemical resistance, and the pump is pressure rated up to 50 PSI. Built in freeze protection watches for cold weather, and the display stays readable in bright sun or at night.

On the pad

It arrives with a base for IntelliFlo and two self-aligning pump unions, so it can take the place of an existing pump without rebuilding the plumbing around it. The controls can be mounted off board if the pad layout calls for it.

Running other equipment

The Power Defender can install and program an additional load, so a booster pump or a chlorine generator can be tied to the pump schedule instead of a separate timer. The pump is D.O.E. and C.E.C. compliant.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Waterway
Manufacturer part number PD-270
UPC 806105646811
Type Variable speed in-ground pool pump
Horsepower 2.7 HP
Voltage 230V
Maximum pressure 50 PSI
Motor construction Totally enclosed with external cooling fan
Shaft seal Silicon carbide with Viton
Freeze protection Built in
Controls User friendly programming, optional off-board mounting
Compliance D.O.E. and C.E.C. compliant
Included Base for IntelliFlo, 2 self-aligning pump unions
Shipping weight 53 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What power does this pump need?
It is a 230V pump, so the circuit at the equipment pad has to be wired for 230 volts.
Will it go where an IntelliFlo was mounted?
It ships with a base for IntelliFlo, and two self-aligning unions are included to help line the plumbing back up.
Can it control a booster pump or a salt cell?
Yes. The Power Defender lets you install and program an additional load such as a booster pump or a chlorine generator.
Is it protected if the temperature drops?
It has built in freeze protection. The totally enclosed motor with its external fan also keeps moisture and debris away from the windings.
Ask your own question
