Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pumpWaterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S In stock$74599
Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump
Shop all Waterway

Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S

Ask a questionMPN 520-5147-6S
$74599
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete system filter tank, cartridge and pump come together on one base, ready to plumb to the pool.
  • 100 sq ft cartridge plenty of filter area for an above ground pool, so cleanings are further apart.
  • 1.5 HP single speed pump 0.95 total horsepower, a straightforward pump with no programming.
  • 3 ft cord with NEMA plug plugs into a standard outlet, no hard wiring.
  • Cartridge, not sand no backwashing and no sand to change; rinse the cartridge and put it back.
  • Waterway build a long-standing pool equipment manufacturer that also supplies the fittings and valves on most pads.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S, SKU WWP-05-2090. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S
Waterway

100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S

$74599
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5199
Subtotal

Similar products

Other products people compare with this one.

Pentair EC-160317 Clean & Clear Plus 150 sq ft cartridge pool filter Pentair Clean & Clear Plus 150 sq ft Cartridge Pool Filter, EC-160317$90900 Web Price Hayward Swim Clear C200S 200 sq ft cartridge pool filter Hayward Swim Clear Cartridge Filter 200 sq ft C200S$93499 Waterway ProClean Plus PCCF-100 100 sq ft cartridge pool filter Waterway ProClean Plus Cartridge Filter PCCF-100, 100 Sq Ft$46099 AquaStar PipeLine PLF27000 cartridge filter for pools up to 27,000 gallons AquaStar PipeLine Cartridge Filter for Pools up to 27,000 Gallons, PLF27000$93000 Web Price Hayward StarClear C500 50 square foot cartridge filter with 1.5 inch FPT connections Hayward StarClear 50 Sq Ft Cartridge Filter, 1.5" FPT, W3C500$42900 Web Price Waterway 570-0425-07 Crystal Water 425 sq ft cartridge pool filter Waterway Crystal Water Cartridge Pool Filter, 425 sq ft, 570-0425-07$1,22899 Pentair Clean & Clear Plus 320 sq ft cartridge pool filter EC-160340 Pentair Clean & Clear Plus 320 sqft Cartridge Pool Filter, EC-160340$1,43900 Hayward SwimClear W3C3030 325 sq. ft. cartridge pool filter Hayward SwimClear Cartridge Filter 325 sq. ft., W3C3030$1,59900 Web Price Pentair Clean & Clear Plus 420 sq ft cartridge pool filter, EC-160301 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,61900 Web Price Hayward SwimClear W3C4030 425 sq ft cartridge filter Hayward SwimClear Cartridge Filter 425 sqft, W3C4030$1,81900 Web Price
Pentair Clean & Clear Plus 520 sq ft cartridge pool filter, EC-160332 Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,94299 Pentair Quad DE filter, 100 sq ft, EC-188594 Pentair Quad DE Filter 100 sqft, EC-188594$2,10900 Hayward SwimClear 525 sq ft cartridge pool filter Hayward SwimClear Cartridge Filter, 525 sq ft, W3C5030$2,24900 Web Price Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,57299 Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,37900 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900 Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

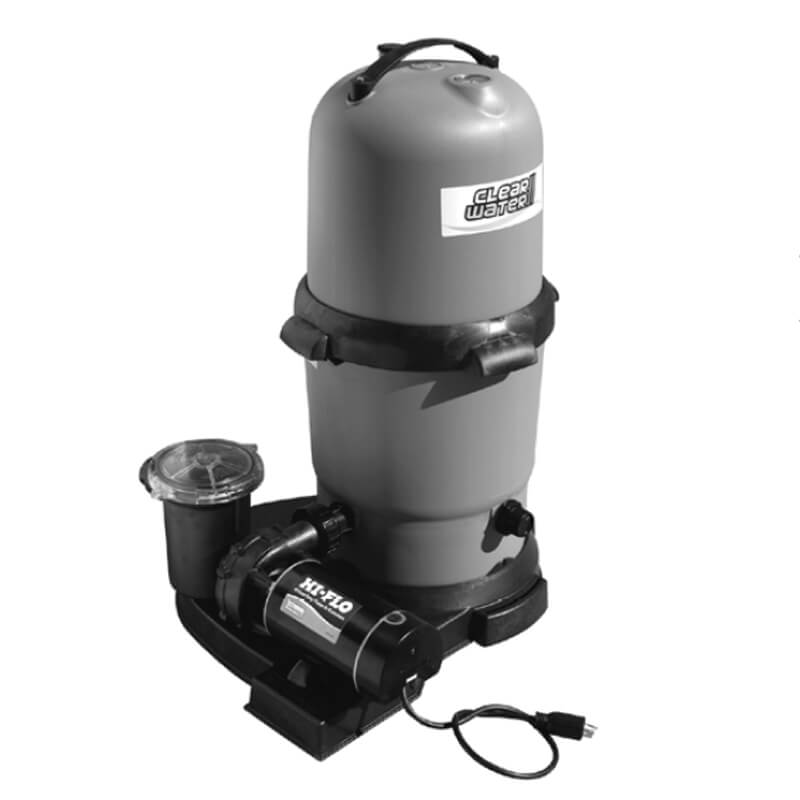

The Waterway ClearWater II 520-5147-6S pairs a 100 sq ft cartridge filter with a 1.5 HP single speed pump as one assembled system for above ground pools. It arrives ready to set beside the pool and connect to the skimmer and return.

Simple to run

The pump is a single speed with a 3 ft cord and NEMA plug, so there is no programming and no hard wiring. Rated at 0.95 total horsepower, it is a straightforward match for the filter. The cartridge design means no backwash valve and no sand: when the gauge climbs, rinse the cartridge and reinstall it.

Before you order

Check that your pool plumbing matches the system connections and that you have a properly protected outdoor outlet within reach of the cord.

Specifications
Brand Waterway
Manufacturer part number 520-5147-6S
UPC 806105406057
Series ClearWater II
Filter area 100 sq ft
Filter type Cartridge
Pump 1.5 HP, 1 speed
Total horsepower 0.95 THP
Cord 3 ft with NEMA plug
Pool type Above ground
Shipping weight 60 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699 Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999
Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699 Waterway 400-9230 pump union, 2 inch nut with 1-1/2 inch slip or 2 inch spigot Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230$799

Questions and answers

What people ask about this product, answered by our pool techs.

Is the pump included?
Yes. This is the complete system: the 100 sq ft ClearWater II cartridge filter and a 1.5 HP single speed pump, mounted together.
Does it need to be hard wired?
No. The pump has a 3 ft cord with a NEMA plug, so it plugs into a suitable outdoor outlet. Follow the manufacturer instructions and local electrical code for the circuit and GFCI protection.
How do I clean it?
Cartridge filters do not backwash. When the pressure gauge rises above its clean starting point, shut the pump off, open the tank, rinse the cartridge with a hose and reinstall it.
What does 0.95 THP mean?
Total horsepower is the motor rating multiplied by its service factor, and it is the number used for pump regulations in many states. The 1.5 HP label is the nameplate rating; 0.95 THP is the same pump expressed the regulatory way.
Ask your own question
