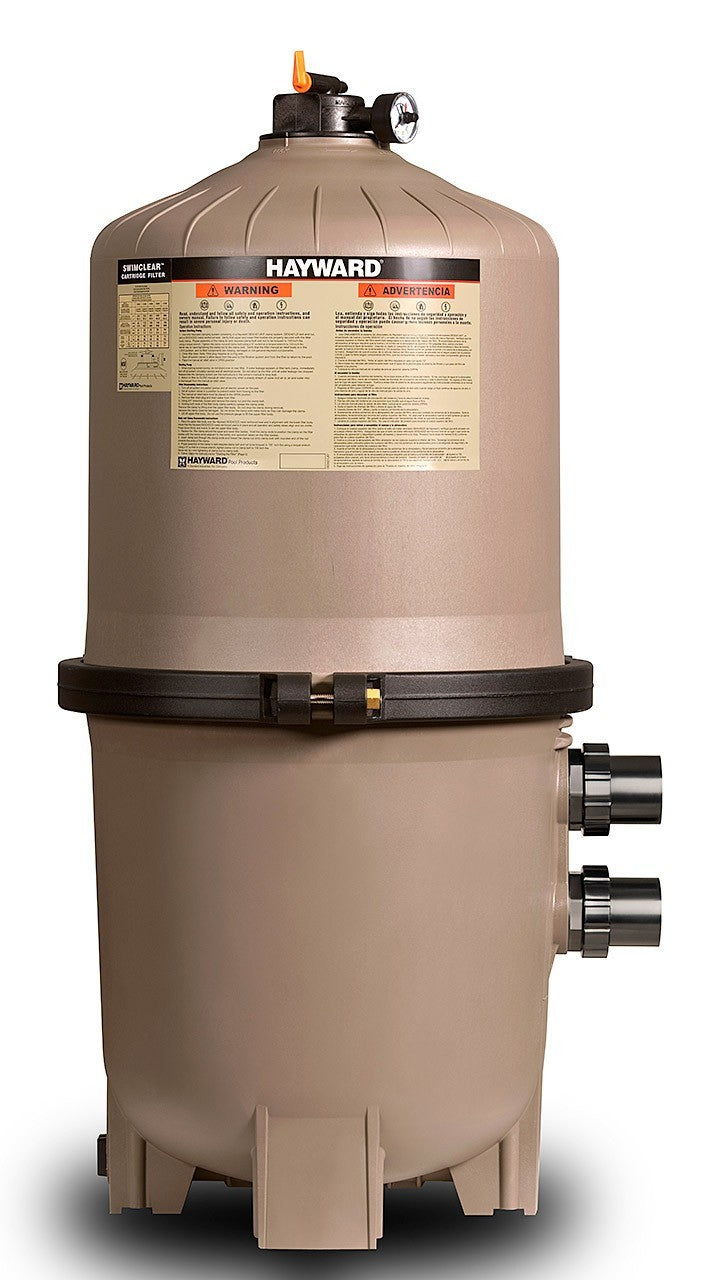

Hayward SwimClear 525 sq ft cartridge pool filterHayward SwimClear Cartridge Filter, 525 sq ft, W3C5030 In stock$2,24900 Web Price
Hayward SwimClear 525 sq ft cartridge pool filter
Shop all Hayward

Hayward SwimClear Cartridge Filter, 525 sq ft, W3C5030

Ask a questionMPN W3C5030
$2,24900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Four cartridges included Ships with four CX1280XRE elements in Hayward quad cluster arrangement.
  • Reinforced co-polymer tank Hayward builds the SwimClear tank from new, stronger reinforced co-polymer for strength, durability and long life.
  • One piece clamp A heavy duty, tamper proof, one piece clamp holds the tank together, with self aligned tank top and bottom.
  • Cleaning cycle gauge A pressure and cleaning cycle indicator gauge shows when the cartridges are due for a clean.
  • Easy to service A full size 1-1/2 inch integral drain and manual air relief make opening and emptying the tank straightforward.
  • Plumbing CPVC union coupling connection with Noryl bulkhead fittings, on a uniform low profile tank base.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward SwimClear Cartridge Filter, 525 sq ft, W3C5030, SKU HAY-05-825. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward SwimClear Cartridge Filter, 525 sq ft, W3C5030
Hayward

SwimClear Cartridge Filter, 525 sq ft, W3C5030

$2,24900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20299
Hayward SwimClear C225SC 225 Sq Ft Filter Cartridge CX225XREM
Hayward

SwimClear C225SC 225 Sq Ft Filter Cartridge CX225XREM

$26999
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5199
Subtotal

Similar products

Other products people compare with this one.

Pentair Clean & Clear Plus 420 sq ft cartridge pool filter, EC-160301 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,61900 Web Price Pentair Clean & Clear Plus 520 sq ft cartridge pool filter, EC-160332 Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,94299 Pentair Clean & Clear Plus 320 sq ft cartridge pool filter EC-160340 Pentair Clean & Clear Plus 320 sqft Cartridge Pool Filter, EC-160340$1,43900 Pentair Quad DE filter, 100 sq ft, EC-188594 Pentair Quad DE Filter 100 sqft, EC-188594$2,10900 Hayward SwimClear W3C3030 325 sq. ft. cartridge pool filter Hayward SwimClear Cartridge Filter 325 sq. ft., W3C3030$1,59900 Web Price Hayward SwimClear W3C4030 425 sq ft cartridge filter Hayward SwimClear Cartridge Filter 425 sqft, W3C4030$1,81900 Web Price Waterway 570-0425-07 Crystal Water 425 sq ft cartridge pool filter Waterway Crystal Water Cartridge Pool Filter, 425 sq ft, 570-0425-07$1,22899 Hayward Swim Clear C200S 200 sq ft cartridge pool filter Hayward Swim Clear Cartridge Filter 200 sq ft C200S$93499 AquaStar PipeLine PLF27000 cartridge filter for pools up to 27,000 gallons AquaStar PipeLine Cartridge Filter for Pools up to 27,000 Gallons, PLF27000$93000 Web Price Pentair EC-160317 Clean & Clear Plus 150 sq ft cartridge pool filter Pentair Clean & Clear Plus 150 sq ft Cartridge Pool Filter, EC-160317$90900 Web Price
Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway ProClean Plus PCCF-100 100 sq ft cartridge pool filter Waterway ProClean Plus Cartridge Filter PCCF-100, 100 Sq Ft$46099 Hayward StarClear C500 50 square foot cartridge filter with 1.5 inch FPT connections Hayward StarClear 50 Sq Ft Cartridge Filter, 1.5" FPT, W3C500$42900 Web Price Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,57299 Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,37900 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900 Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward SwimClear is a 525 sq ft cartridge filter, one of the larger residential cartridge tanks Hayward builds. The extra area means longer runs between cleanings and lower resistance on the pump, which is what makes a big cartridge filter worth the space it takes on the pad.

The tank

Hayward makes the SwimClear tank from a new, stronger reinforced co-polymer for strength, durability and long life. The top and bottom halves are self aligned and clamped by a single heavy duty, tamper proof, one piece clamp, on a uniform low profile tank base. Plumbing is a CPVC union coupling connection with Noryl bulkhead fittings.

Cartridges

Four CX1280XRE cartridges come with the filter, arranged as quad cluster elements under a top manifold. Because all four sit in the tank together, the cleaning interval is measured in months rather than weeks on a typical residential pool.

Servicing

A pressure and cleaning cycle indicator gauge tells you when the elements have loaded up. There is manual air relief for restarting after service and a full size 1-1/2 inch integral drain so you can empty the tank before lifting the top off.

Specifications
Brand Hayward
Manufacturer part number W3C5030
Also listed as C5030
UPC 0610377387927
Series SwimClear
Type Cartridge filter
Filter area 525 SQFT
Cartridges Four CX1280XRE, quad-cluster cartridge elements
Tank New, stronger reinforced co-polymer, high-strength
Manifold Top manifold
Clamp Heavy-duty, tamper-proof, one-piece
Drain Full-size 1-1/2 inch integral drain
Gauge Pressure and cleaning-cycle-indicator
Connections CPVC union coupling connection, Noryl bulkhead fittings
Air relief Manual
Base Uniform low-profile tank base design
Shipping weight 80 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Does it come with cartridges?
Yes. Four CX1280XRE cartridges are included.
What is the difference between W3C5030 and C5030?
They refer to the same 525 sq ft SwimClear filter. The part number on this listing is W3C5030 and the same filter is also catalogued as C5030.
How do I know when to clean it?
The tank carries a pressure and cleaning cycle indicator gauge. A rise over the clean starting pressure is the signal to pull the cartridges.
How does the tank open for service?
A heavy duty one piece clamp holds the tank together, and there is manual air relief plus a full size 1-1/2 inch integral drain to empty it before you lift the top.
