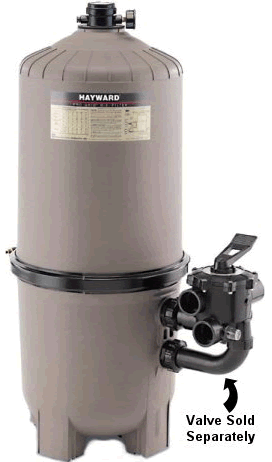

Hayward W3DE6020 Pro-Grid 60 sq ft vertical grid DE pool filter, valve not includedHayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020 In stock$1,70900 Web Price
Hayward W3DE6020 Pro-Grid 60 sq ft vertical grid DE pool filter, valve not included
Shop all Hayward

Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020

Ask a questionMPN W3DE6020
$1,70900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 60 sq ft of grid area Sized for large residential and commercial pools and spas.
  • 150 GPM Residential flow rating, with 2 in. full flow internal piping for low resistance.
  • Valve not included Takes the SP0740DE Selecta-Flo 2 in. SKT, SP0710XR50 Vari-Flo 1-1/2 in. NPT, SP0715XR50 Vari-Flo 2 in. NPT or SP0410X502S 2 in. slide valve.
  • Quick access A one piece, tamper proof flange clamp opens the tank without disturbing the plumbing.
  • Easy grid service Self aligning tank halves, integral lift handles and a low profile base make lifting the grid nest out simple.
  • Quick air relief A high capacity manual air relief valve bleeds air with a quarter turn of the lever.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020, SKU HAY-05-814. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Hayward

Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020

$1,70900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Hayward 2 in. SKT, 2-1/2 in. Slip SelectaFlo High Efficiency D.E. Filter Valve, SP0425
Hayward

2 in. SKT, 2-1/2 in. Slip SelectaFlo High Efficiency D.E. Filter Valve, SP0425

$18799
Hayward Vari-Flo 2 in. DE Filter Valve, SP0715XR50
Hayward

Vari-Flo 2 in. DE Filter Valve, SP0715XR50

$29899
Hayward OEM 48 sqft DE Filter Element Cluster Assembly, DEX4800DC
Hayward

OEM 48 sqft DE Filter Element Cluster Assembly, DEX4800DC

$78288
Hayward DE2420 Filter Element Cluster Assembly, DEX2420DC
Hayward

DE2420 Filter Element Cluster Assembly, DEX2420DC

$55599
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5299
Subtotal

Similar products

Other products people compare with this one.

Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,40199 Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900 Hayward Pro-Grid W3DE4820 48 sq ft vertical grid DE pool filter Hayward Pro-Grid 48 Sq Ft DE Pool Filter, Valve Not Included, W3DE4820$1,55900 Web Price Hayward W3EC65A Perflex Extended-Cycle 34 sqft D.E. pool filter Hayward Perflex Extended-Cycle 34 sqft D.E. Pool Filter, W3EC65A$1,14900 Web Price Hayward W3EC40AC Perflex Extended-Cycle 20 sq ft DE pool filter with clamp lid Hayward Perflex Extended-Cycle 20 SQFT DE Pool Filter, W3EC40AC$56900 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,62199 Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$92799 Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price Pentair Clean & Clear Plus 420 sq ft cartridge pool filter, EC-160301 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,61900 Web Price
Pentair Clean & Clear Plus 520 sq ft cartridge pool filter, EC-160332 Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,94299 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$76899 Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,06499 Pentair Tagelus TA100D 30 in. top mount sand filter with 2 in. multiport valve, almond Pentair Tagelus TA100D Top Mount 30 in. Pool Sand Filter with 2 in. Multiport Valve, EC-145240$1,75999 Pentair Clean & Clear Plus 320 sq ft cartridge pool filter EC-160340 Pentair Clean & Clear Plus 320 sqft Cartridge Pool Filter, EC-160340$1,45399 Pentair EC-160317 Clean & Clear Plus 150 sq ft cartridge pool filter Pentair Clean & Clear Plus 150 sq ft Cartridge Pool Filter, EC-160317$90900 Web Price Pentair Sand Dollar SD80 26 in. sand filter with top mount 1-1/2 in. multiport valve Pentair Sand Dollar SD80 26" Pool Sand Filter with Top Mount 1-1/2" Multiport Valve, EC-145333$80079 Pentair Clean & Clear 100 sq ft cartridge pool filter EC-160316 Pentair Clean & Clear 100 sqft Cartridge Pool Filter, EC-160316$76900 Web Price Pentair FNS Plus 36 sq. ft. vertical grid DE filter FNSP36, part EC-180007 Pentair FNS Plus 36 sq. ft. DE Filter FNSP36, EC-180007$1,22900 Web Price

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward Pro-Grid W3DE6020 is the 60 square foot model in the Pro-Grid vertical grid DE filter line, sized for large residential pools, in-ground spas and pool and spa combinations, and light commercial work. It is sold here without a valve, so you can pair it with the multiport or slide valve that suits your plumbing.

Flow and filtration

Internal piping is 2 in. full flow for minimal resistance, and the residential flow rating is 150 GPM. The grid elements are built for up-flow filtration and top-down backwashing, and an inlet diffuser elbow spreads unfiltered water and fresh DE evenly across all of them.

Built for service

The tank is reinforced thermoplastic, rated for tough conditions including in-floor cleaning systems. A one piece, tamper proof flange clamp holds the tank top to the bottom and opens without disturbing the piping. The halves self align, the base is low profile and the grid nest has integral lift handles, so getting the elements out to hose them down is quick. A high capacity manual air relief valve bleeds air with a quarter turn.

Choosing a valve

The filter accepts four Hayward valves: SP0740DE Selecta-Flo 2 in. socket, SP0710XR50 Vari-Flo 1-1/2 in. NPT, SP0715XR50 Vari-Flo 2 in. NPT, or the SP0410X502S 2 in. socket slide valve. Match the valve to your pipe size and to whether you want a full multiport or a simple push-pull backwash.

Specifications
Brand Hayward
Manufacturer part number W3DE6020
UPC 0610377387897
Type Vertical grid DE filter
Filter area 60 sq. ft.
Flow rate 150 GPM residential
Internal piping 2 in. full flow
Tank Reinforced thermoplastic
Clamp One piece flange clamp
Application In-ground pools, in-ground spas and pool/spa combinations
Compatible valves SP0740DE (Selecta-Flo 2 in. SKT), SP0710XR50 (Vari-Flo 1-1/2 in. NPT), SP0715XR50 (Vari-Flo 2 in. NPT), SP0410X502S (Slide Valve 2 in. SKT)
Valve Not included
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Does it come with a valve?
No. The filter ships without a backwash valve. It accepts the Hayward SP0740DE Selecta-Flo 2 in. socket valve, the SP0710XR50 Vari-Flo 1-1/2 in. NPT valve, the SP0715XR50 Vari-Flo 2 in. NPT valve or the SP0410X502S 2 in. slide valve, each sold separately.
What size pool is it for?
With 60 sq ft of grid area and a 150 GPM residential flow rating it is the largest Pro-Grid, meant for big residential pools, pool and spa combinations and commercial installations.
How do I get at the grids?
Release the one piece flange clamp and lift the tank top off. The tank halves self align, the base is low profile and the grid nest has lift handles, so the elements come out without touching the plumbing.
Can it run with an in-floor cleaning system?
Yes. The reinforced thermoplastic tank is rated for the higher pressures in-floor cleaning systems put on a filter.
