Hayward SP0715XR50 Vari-Flo XL 2 in. multiport DE filter valveHayward Vari-Flo 2 in. DE Filter Valve, SP0715XR50 In stock$29899
Hayward SP0715XR50 Vari-Flo XL 2 in. multiport DE filter valve
Shop all Hayward

Hayward Vari-Flo 2 in. DE Filter Valve, SP0715XR50

Ask a questionMPN SP0715XR50
$29899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Six functions Filter, backwash, waste, rinse, closed and recirculate, all selected at the handle.
  • Lever action handle An easy to use lever dials in the position you want.
  • Integral sight glass Lets you see when the backwashing cycle has finished.
  • PermaGlass XL body Made from the Hayward PermaGlass XL material used across the Vari-Flo XL range.
  • Engineered for flow The Vari-Flo XL control valve is built for maximum flow.
  • 2 in. size This is the 2 in. version, listed for Hayward Micro-Clear and Pro-Grid DE filters.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Vari-Flo 2 in. DE Filter Valve, SP0715XR50, SKU HAY-06-241. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Vari-Flo 2 in. DE Filter Valve, SP0715XR50
Hayward

Vari-Flo 2 in. DE Filter Valve, SP0715XR50

$29899
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$599
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2599
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

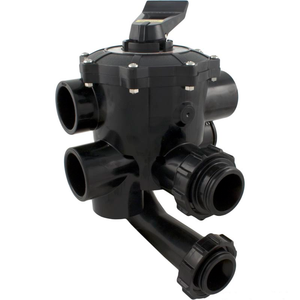

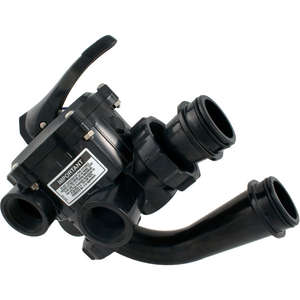

Hayward SP0710XR50 Vari-Flo XL 1.5 in. multiport backwash valve for DE filters Hayward Vari-Flo Backwash Valve 1.5" (DE Filters), SP0710XR50$18099 Hayward SP0425 SelectaFlo high efficiency D.E. filter valve, 2 in. socket by 2-1/2 in. slip Hayward 2 in. SKT, 2-1/2 in. Slip SelectaFlo High Efficiency D.E. Filter Valve, SP0425$18199 Hayward SP0740DE complete 2 inch 4-way multiport D.E. filter valve Hayward Complete 2" 4-Way Multiport D.E. Valve, SP0740DE$30099 Hayward SP0410X502S 2 inch SKT slide valve assembly Hayward Slide Valve Assembly, 2" SKT, SP0410X502S$14599

Product details

The Hayward Vari-Flo XL is the 2 in. multiport control valve for DE pool filters, part SP0715XR50. It is made from the Hayward PermaGlass XL material and engineered for maximum flow.

Six positions on one handle

An easy to use lever action handle dials up six filter functions: filter, backwash, waste, rinse, closed and recirculate. That covers normal running, cleaning the filter, sending water to waste, settling the media after a backwash, isolating the filter and bypassing it altogether.

Sight glass

An integral sight glass is built into the valve so you can watch the discharge during a backwash and stop when the water runs clear, instead of guessing at the time.

Part numbers

This valve appears in our source data as both SP0715XR50 and SP715XR50. Check the number stamped on your old valve or listed in your filter paperwork before ordering, and confirm your filter takes the 2 in. valve rather than the 1.5 in. version.

Specifications
Brand Hayward
Manufacturer part number SP0715XR50
Alternate part number SP715XR50
UPC 610377044769
Type Vari-Flo XL multiport filter control valve
Port size 2 in.
Material Plastic
Body material PermaGlass XL
Valve positions Filter, backwash, waste, rinse, closed, recirculate
Features Integral sight glass, lever action handle
Fits Hayward Micro-Clear and Pro-Grid DE filters
Shipping weight 7.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What are the six valve positions?
Filter, backwash, waste, rinse, closed and recirculate, chosen with the lever handle.
Is the part number SP0715XR50 or SP715XR50?
Both numbers appear for this valve in our source data, so we carry both. Match the number on your old valve or your filter documentation before ordering.
What is the sight glass for?
It shows the water leaving the valve during a backwash. When the water runs clear, the backwash cycle is done.
Which filters does it suit?
It is the 2 in. Vari-Flo XL control valve for Hayward DE filters, listed under the Micro-Clear and Pro-Grid DE filter families.
