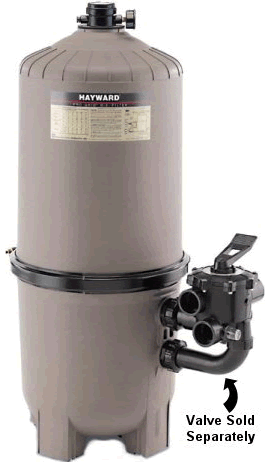

Hayward Pro-Grid W3DE4820 48 sq ft vertical grid DE pool filterHayward Pro-Grid 48 Sq Ft DE Pool Filter, Valve Not Included, W3DE4820 In stock$1,55900 Web Price
Hayward Pro-Grid W3DE4820 48 sq ft vertical grid DE pool filter
Shop all Hayward

Hayward Pro-Grid 48 Sq Ft DE Pool Filter, Valve Not Included, W3DE4820

Ask a questionMPN W3DE4820
$1,55900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Vertical grid DE filtration Diatomaceous earth on vertical grids, the finest of the three common filter types.
  • 48 sq ft of area Rated at a 120 GPM residential flow rate and sized for large residential and commercial use.
  • Valve sold separately Compatible with SP0740DE, SP0710XR50, SP0715XR50 and SP0410X5025, none of which are included.
  • Reinforced thermoplastic tank Built for hard duty and harsh conditions, including in floor cleaning systems.
  • One piece flange clamp A heavy duty tamper proof clamp opens the tank without disturbing the plumbing.
  • Fast air bleed The high capacity manual air relief valve clears air with a quarter turn of the lever.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Pro-Grid 48 Sq Ft DE Pool Filter, Valve Not Included, W3DE4820, SKU HAY-05-813. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Pro-Grid 48 Sq Ft DE Pool Filter, Valve Not Included, W3DE4820
Hayward

Pro-Grid 48 Sq Ft DE Pool Filter, Valve Not Included, W3DE4820

$1,55900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Hayward 2 in. SKT, 2-1/2 in. Slip SelectaFlo High Efficiency D.E. Filter Valve, SP0425
Hayward

2 in. SKT, 2-1/2 in. Slip SelectaFlo High Efficiency D.E. Filter Valve, SP0425

$18199
Hayward Vari-Flo 2 in. DE Filter Valve, SP0715XR50
Hayward

Vari-Flo 2 in. DE Filter Valve, SP0715XR50

$28999
Hayward OEM 48 sqft DE Filter Element Cluster Assembly, DEX4800DC
Hayward

OEM 48 sqft DE Filter Element Cluster Assembly, DEX4800DC

$78599
Hayward DE2420 Filter Element Cluster Assembly, DEX2420DC
Hayward

DE2420 Filter Element Cluster Assembly, DEX2420DC

$53899
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5199
Subtotal

Similar products

Other products people compare with this one.

Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,37900 Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900 Hayward W3DE6020 Pro-Grid 60 sq ft vertical grid DE pool filter, valve not included Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020$1,70900 Web Price Hayward W3EC65A Perflex Extended-Cycle 34 sqft D.E. pool filter Hayward Perflex Extended-Cycle 34 sqft D.E. Pool Filter, W3EC65A$1,14900 Web Price Hayward W3EC40AC Perflex Extended-Cycle 20 sq ft DE pool filter with clamp lid Hayward Perflex Extended-Cycle 20 SQFT DE Pool Filter, W3EC40AC$56900 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,57299 Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price Pentair Clean & Clear Plus 420 sq ft cartridge pool filter, EC-160301 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,61900 Web Price
Pentair Clean & Clear Plus 520 sq ft cartridge pool filter, EC-160332 Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,94299 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 Pentair Tagelus TA100D 30 in. top mount sand filter with 2 in. multiport valve, almond Pentair Tagelus TA100D Top Mount 30 in. Pool Sand Filter with 2 in. Multiport Valve, EC-145240$1,70699 Pentair Clean & Clear Plus 320 sq ft cartridge pool filter EC-160340 Pentair Clean & Clear Plus 320 sqft Cartridge Pool Filter, EC-160340$1,43900 Pentair EC-160317 Clean & Clear Plus 150 sq ft cartridge pool filter Pentair Clean & Clear Plus 150 sq ft Cartridge Pool Filter, EC-160317$90900 Web Price Pentair Sand Dollar SD80 26 in. sand filter with top mount 1-1/2 in. multiport valve Pentair Sand Dollar SD80 26" Pool Sand Filter with Top Mount 1-1/2" Multiport Valve, EC-145333$80599 Pentair Clean & Clear 100 sq ft cartridge pool filter EC-160316 Pentair Clean & Clear 100 sqft Cartridge Pool Filter, EC-160316$76900 Web Price Pentair FNS Plus 36 sq. ft. vertical grid DE filter FNSP36, part EC-180007 Pentair FNS Plus 36 sq. ft. DE Filter FNSP36, EC-180007$1,22900 Web Price

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward Pro-Grid is a vertical grid diatomaceous earth filter, and this is the 48 sq. ft. size with a 120 GPM residential flow rate. It is built for inground pools, inground spas and pool and spa combinations, and Hayward positions the 48 sq. ft. model for both commercial work and large residential pools. The valve is not included.

How it is built

The tank is reinforced thermoplastic, chosen to hold up to hard duty and harsh conditions including in floor cleaning systems. A heavy duty tamper proof one piece flange clamp holds the top and bottom together and lets you open the filter without disturbing the piping. Inside, high impact grid elements are laid out for up flow filtration and top down backwashing, and an inlet diffuser elbow spreads unfiltered water and fresh D.E. evenly across all of the grids. Plumbing is 2" full flow throughout for less resistance.

Servicing

The tank top and bottom are self aligning, and the uniform low profile base with integral lift handles is there so the grid nest comes out in one piece rather than fighting you. A high capacity rapid release manual air relief valve bleeds trapped air with a quarter turn of the lever.

Choosing the valve

Because the valve is a separate purchase, decide on it with the filter. Hayward lists SP0740DE, the Selecta-Flo 2" SKT, and SP0710XR50, the Vari-Flo 1 1/2" NPT, as compatible, with SP0715XR50 in Vari-Flo 2" NPT and SP0410X5025 slide valve in 2" SKT as further options.

Specifications
Brand Hayward
Manufacturer part number W3DE4820
Also listed as DE4820
UPC 0610377387880
Type Vertical grid D.E. filter
Series Pro-Grid
Filter area 48 sq. ft.
Flow rate 120 GPM residential flow rate
Internal piping 2" full-flow internal piping
Tank material Reinforced thermoplastic
Clamp Heavy duty tamper proof one piece flange clamp
Air relief High capacity rapid release manual air relief valve, quarter turn lever
Valve Sold separately, not included
Compatible valves SP0740DE (Selecta-Flo 2" SKT), SP0710XR50 (Vari-Flo 1 1/2" NPT), SP0715XR50 (Vari-Flo 2" NPT, optional), SP0410X5025 (Slide Valve 2" SKT, optional)
Applications In-ground pools, in-ground spas, in-ground pool and spa combinations
Shipping weight 75 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Does this filter come with a valve?
No. The valve is sold separately. Hayward lists SP0740DE (Selecta-Flo 2" SKT) and SP0710XR50 (Vari-Flo 1 1/2" NPT) as compatible, with SP0715XR50 (Vari-Flo 2" NPT) and SP0410X5025 (Slide Valve 2" SKT) as options.
How big a pool will 48 sq ft handle?
Hayward rates this filter at a 120 GPM residential flow rate and positions the 48 sq. ft. size for both commercial and large residential pools.
Is the part number DE4820 or W3DE4820?
The product record carries both. W3DE4820 is the manufacturer part number listed for this filter and DE4820 appears in the same record, so match whichever number your paperwork or old filter shows.
How hard is it to service the grids?
The tank top and bottom self align and the one piece flange clamp opens the tank without touching the plumbing. The low profile base and integral lift handles are there to get the grid nest out in one piece.
