AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000 In stock$1,000⁰⁰

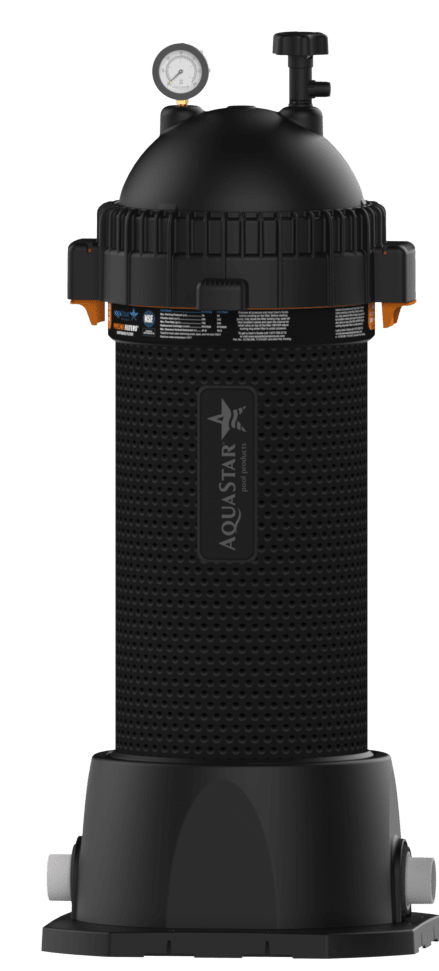

AquaStar PLF35000 PipeLine cartridge filter

AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000

Name: AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000
Brand: AquaStar
SKU: API-05-0001
Price: 1000.00 USD
Availability: InStock

Ask a questionMPN PLF35000

$1,000⁰⁰

FREE Delivery

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Sized for 35,000 gallons rated for pools up to 35,000 gallons.
Cartridge filtration no sand to change and no backwash valve to plumb; the cartridge comes out for rinsing.
AquaStar PipeLine series the PLF35000 is the 35,000 gallon model in the PipeLine line.
Inground use built for inground pool pads.
Model PLF35000 order by this number to match the size.
Check your volume compare your pool volume against the 35,000 gallon rating before ordering.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000

AquaStar

PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000

$1,000⁰⁰

Select

Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$51⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,069⁰⁰ Web Price

Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter

Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$649⁰⁰ Web Price

Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353

Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,049⁰⁰ Web Price

Pentair Clean & Clear 100 sqft Cartridge Pool Filter, EC-160316$769⁰⁰ Web Price

Pentair EC-160355 Clean & Clear RP 150 sq ft cartridge filter

Pentair Clean & Clear RP Cartridge Filter 150 sq ft, EC-160355$899⁰⁰ Web Price

Hayward W3C12002 Star-Clear Plus 120 sq ft cartridge filter, 2 in. socket

Hayward StarClear Plus Cartridge Filter 120 sq ft, 2" SKT, W3C12002$879⁰⁰ Web Price

Waterway Plastics ProClean Plus PCCF-150 150 sq ft single cartridge pool filter

Waterway Plastics ProClean Plus Single Cartridge Filter, 150 Sq Ft, PCCF-150$781⁹⁹

Waterway Pro-Clean Cartridge 200 Sq Ft Filter | PCCF-200

Waterway ProClean Plus Cartridge Filter, 200 sq ft, 150 GPM, 2 inch FPT Ports, PCCF-200$829⁹⁹

Pentair Sta-Rite System 2 Modular Media Cartridge Filter, 150 sq ft, PLM150$991⁹⁹

Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6215-6S

Waterway ProClean Plus Inground Cartridge Filter System with 1.5 HP Hi-Flo II 2-Speed Pump, 125 sq ft, 522-6215-6S$750⁹⁹

Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6000-6S$577⁹⁹

Waterway Crystal Water Cartridge Filter 525 Sq Ft | 570-0525-07$1,534⁹⁹

Waterway 502-5010 50 SQFT top load cartridge filter with 2 inch bypass

Waterway 50 SQFT Top Load Filter, 2" with Bypass, 502-5010$151⁹⁹

Waterway Top-Load Cartridge Pool Filter with 2 in. In/Out and Bypass Valve, 100 Sq. Ft., 502-9910$90⁹⁹

Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210

Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,549⁰⁰

Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008

Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,385⁹⁹

Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump

Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$899⁹⁹

Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter

Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,509⁰⁰

Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,619⁰⁰ Web Price

Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,942⁹⁹

Product details

The AquaStar PipeLine PLF35000 is a cartridge filter with 250 square feet of filter area and a maximum flow rate of 200 GPM, certified to NSF/ANSI/CAN 50. It is the larger of the two PipeLine models, with the PLF27000 below it.

Capacity

AquaStar rates the PLF35000 by turnover. That is 35,640 gallons on a 6 hour public pool turnover, 47,520 gallons on an 8 hour turnover, and 144,000 gallons on a 12 hour residential turnover. The residential design filtration flow rate is 200 GPM and the public design flow rate is 99 GPM. Local codes may specify lower flow rates, so check them against your pool.

Plumbing and clearances

The filter connects with PVC unions that are included, 2 inch female slip socket inside and 2-1/2 inch male spigot outside. The maximum working pressure is 50 psi and must never be exceeded, even during hydrostatic pressure tests. It needs 76 inches of vertical clearance to lift the cartridge out and 6 inches of horizontal clearance. The replacement cartridge is model PF35000.

Cleaning

Clean the filter when the gauge reads 10 psi above the clean starting pressure. The filter has no multiport valve and no backwash. You open it, lift the cartridge out and rinse it.

Specifications
Brand	AquaStar
Manufacturer part number	PLF35000
UPC	0883612101095
Type	PipeLine cartridge filter
Pool size	Up to 35,000 gallons
Pool type	Inground
Filter area	250 square feet
Maximum flow rate	200 GPM
Maximum working pressure	50 psi
Union connections	2 inch female slip socket and 2-1/2 inch male spigot, unions included
Replacement cartridge	PF35000
Minimum vertical clearance	76 inches
Certification	NSF/ANSI/CAN 50
Shipping weight	70 lb
Ships	Parcel
