Hayward W3C12002 Star-Clear Plus 120 sq ft cartridge filter, 2 in. socketHayward StarClear Plus Cartridge Filter 120 sq ft, 2" SKT, W3C12002 In stock$87900 Web Price

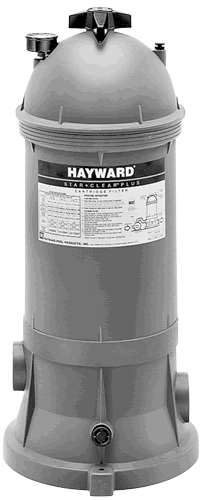

Hayward W3C12002 Star-Clear Plus 120 sq ft cartridge filter, 2 in. socket
Shop all Hayward

Hayward StarClear Plus Cartridge Filter 120 sq ft, 2" SKT, W3C12002

Ask a questionMPN W3C12002
$87900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 120 sq ft a single extra large cartridge with an extruded core for strength and maximum flow.
  • 2 in. socket this version is plumbed with 2 in. slip connections. Hayward also makes it in 1-1/2 in. and 2 in. threaded.
  • One knob, no clamps a single locking knob holds the head to the tank, with no bolts or band clamp.
  • Rotating head turn the head to put the pressure gauge and manual air relief where you can see them.
  • Tough tank glass reinforced co-polymer with a one piece molded base and body, rated for in-floor cleaning systems.
  • Clean debris sump the elevated water collector and debris sump keep heavy debris from bypassing to the pool when the cartridge is out.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward StarClear Plus Cartridge Filter 120 sq ft, 2" SKT, W3C12002, SKU HAY-05-820. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward StarClear Plus Cartridge Filter 120 sq ft, 2" SKT, W3C12002
Hayward

StarClear Plus Cartridge Filter 120 sq ft, 2" SKT, W3C12002

$87900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5299
Subtotal

Similar products

Other products people compare with this one.

Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,06499 Pentair Clean & Clear 100 sq ft cartridge pool filter EC-160316 Pentair Clean & Clear 100 sqft Cartridge Pool Filter, EC-160316$76900 Web Price Pentair EC-160355 Clean & Clear RP 150 sq ft cartridge filter Pentair Clean & Clear RP Cartridge Filter 150 sq ft, EC-160355$89900 Web Price Waterway Plastics ProClean Plus PCCF-150 150 sq ft single cartridge pool filter Waterway Plastics ProClean Plus Single Cartridge Filter, 150 Sq Ft, PCCF-150$77099 Pentair Sta-Rite System 2 Modular Media Cartridge Filter 150 Sq Ft | PLM150 Pentair Sta-Rite System 2 Modular Media Cartridge Filter 150 Sq Ft | PLM150$95899 Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6215-6S Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6215-6S$91499 Waterway Pro-Clean Cartridge 125 Sq Ft Filter | PCCF-125 Waterway Pro-Clean Cartridge 125 Sq Ft Filter | PCCF-125$59899
Waterway Pro-Clean Cartridge 200 Sq Ft Filter | PCCF-200 Waterway Pro-Clean Cartridge 200 Sq Ft Filter | PCCF-200$79999 Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6000-6S Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6000-6S$59599 Waterway Pro-Clean Cartridge 75 Sq Ft Filter | PCCF-075 Waterway Pro-Clean Cartridge 75 Sq Ft Filter | PCCF-075$39299 Waterway Crystal Water Cartridge Filter 525 Sq Ft | 570-0525-07 Waterway Crystal Water Cartridge Filter 525 Sq Ft | 570-0525-07$1,43999 Waterway 502-5010 50 SQFT top load cartridge filter with 2 inch bypass Waterway 50 SQFT Top Load Filter, 2" with Bypass, 502-5010$14899 Waterway Top-Load Cartridge Pool Filter with 2 in. In/Out and Bypass Valve, 100 Sq. Ft., 502-9910 Waterway Top-Load Cartridge Pool Filter with 2 in. In/Out and Bypass Valve, 100 Sq. Ft., 502-9910$9099 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,62199 Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,40199 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$92799 Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward W3C12002 is the Star-Clear Plus cartridge filter with 120 sq ft of filter area and 2 in. socket connections. It is built for in-ground pools and in-ground pool and spa combinations, and it is the version to buy when your equipment pad is plumbed in 2 in. PVC that glues straight in.

Tank and head

The tank is glass reinforced co-polymer with the base and body molded as a single piece, which gives it the strength for the toughest applications, including in-floor cleaning systems, without corrosion. A single locking knob fastens the head to the tank, so there are no bolts or clamps to fight, and the head rotates so the pressure gauge and manual air relief can face wherever is convenient.

Inside

The extra large cartridge rides on a precision extruded core for strength and maximum flow. An elevated filtered water collector and debris sump keep heavy debris from bypassing to the pool while the cartridge is out for cleaning. The replacement cartridge is the PA120.

Before you order

This is the 2 in. socket version. Hayward also offers Star-Clear Plus filters with 1-1/2 in. and 2 in. FIP threaded connections, so match the port to your plumbing. The drain is 1/2 in. FIP and accepts a standard spigot valve.

Specifications
Brand Hayward
Manufacturer part number W3C12002
UPC 0610377387828
Series Star-Clear Plus
Filter area 120 sq ft
Connections 2 in. SKT
Application In-ground pools, in-ground pool and spa combinations
Tank material Glass reinforced co-polymer
Head attachment Single locking knob
Drain 1/2 in. FIP
Replacement cartridge PA120
Shipping weight 30 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What connections does it have?
2 in. socket, also called slip or SKT, so 2 in. PVC glues straight in. The same filter is offered in 1-1/2 in. and 2 in. threaded versions if your plumbing is different.
What replacement cartridge does it take?
The PA120.
Can it handle an in-floor cleaning system?
Yes. The tank is built to meet the demands of in-floor cleaning systems and the toughest applications.
How does the head come off for cleaning?
Loosen the single locking knob and lift the head. There are no bolts or clamps, and the head can be rotated when you put it back so the gauge and air relief face where you want.
Ask your own question
