Pentair Sta-Rite System 2 Modular Media Cartridge Filter 150 Sq Ft | PLM150
Shop all Pentair

Pentair Sta-Rite System 2 Modular Media Cartridge Filter, 150 sq ft, PLM150

Ask a questionMPN PLM150
$99199
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • PLM Series The PLM150 is the 150 sq ft model of the System 2 modular media filter line.
  • Balanced flow design The balanced flow design first used in the System 3 filter is built into the smaller System 2.
  • Two piece ABS tank The tank housing is rugged ABS thermoplastic with a Posi-Ring locking ring for access to the internals.
  • Shallow pleats Complete media coverage with shallow pleats holds more dirt for longer filter cycles.
  • Large drain 2 in NPT drain ports include a reducer bushing and a 1-1/2 in drain plug.
  • Flow range Rated for 56 to 150 gpm with 2 in plumbing.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Sta-Rite System 2 Modular Media Cartridge Filter, 150 sq ft, PLM150, SKU STA-05-186. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Sta-Rite System 2 Modular Media Cartridge Filter, 150 sq ft, PLM150
Pentair

Sta-Rite System 2 Modular Media Cartridge Filter, 150 sq ft, PLM150

$99199
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5199
Subtotal

Similar products

Other products people compare with this one.

Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 Pentair Clean & Clear 100 sq ft cartridge pool filter EC-160316 Pentair Clean & Clear 100 sqft Cartridge Pool Filter, EC-160316$76900 Web Price Pentair EC-160355 Clean & Clear RP 150 sq ft cartridge filter Pentair Clean & Clear RP Cartridge Filter 150 sq ft, EC-160355$89900 Web Price Hayward W3C12002 Star-Clear Plus 120 sq ft cartridge filter, 2 in. socket Hayward StarClear Plus Cartridge Filter 120 sq ft, 2" SKT, W3C12002$87900 Web Price Waterway Plastics ProClean Plus PCCF-150 150 sq ft single cartridge pool filter Waterway Plastics ProClean Plus Single Cartridge Filter, 150 Sq Ft, PCCF-150$78199 Waterway Pro-Clean Cartridge 200 Sq Ft Filter | PCCF-200 Waterway ProClean Plus Cartridge Filter, 200 sq ft, 150 GPM, 2 inch FPT Ports, PCCF-200$82999 Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6215-6S Waterway ProClean Plus Inground Cartridge Filter System with 1.5 HP Hi-Flo II 2-Speed Pump, 125 sq ft, 522-6215-6S$75099
Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6000-6S Waterway ProClean Plus Inground Pool Single Cartridge System | 522-6000-6S$57799 Waterway Crystal Water Cartridge Filter 525 Sq Ft | 570-0525-07 Waterway Crystal Water Cartridge Filter 525 Sq Ft | 570-0525-07$1,53499 Waterway 502-5010 50 SQFT top load cartridge filter with 2 inch bypass Waterway 50 SQFT Top Load Filter, 2" with Bypass, 502-5010$15199 Waterway Top-Load Cartridge Pool Filter with 2 in. In/Out and Bypass Valve, 100 Sq. Ft., 502-9910 Waterway Top-Load Cartridge Pool Filter with 2 in. In/Out and Bypass Valve, 100 Sq. Ft., 502-9910$9099 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,65799 Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,38599 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900 Pentair Clean & Clear Plus 420 sq ft cartridge pool filter, EC-160301 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,61900 Web Price Pentair Clean & Clear Plus 520 sq ft cartridge pool filter, EC-160332 Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,94299

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

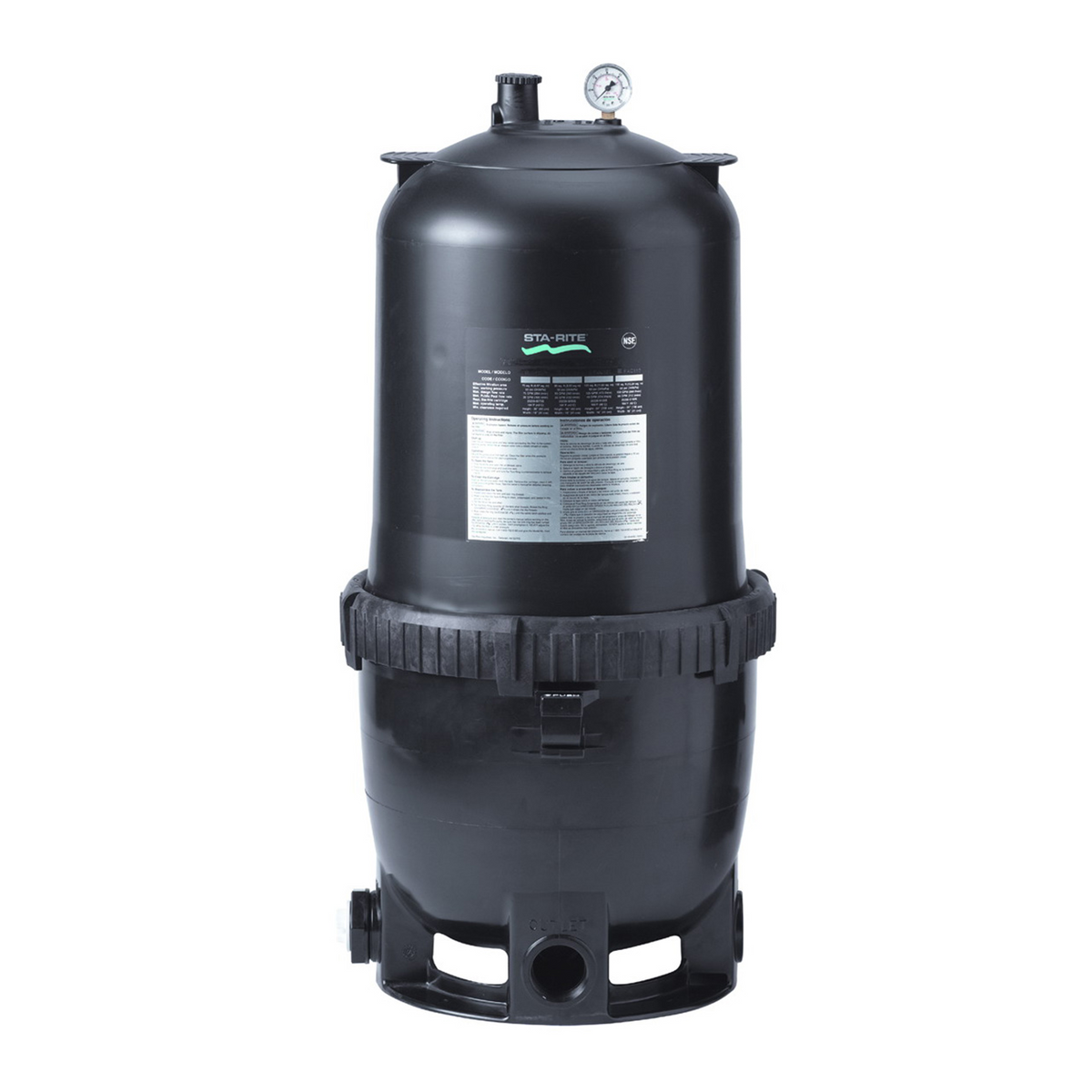

The Pentair Sta-Rite PLM150 is the System 2 modular media cartridge filter with 150 sq ft of filter area, made for small inground and above ground pools and inground hot tubs.

How it works

The System 2 filter uses the balanced flow design first introduced with the System 3 modular media filter, with complete media coverage and shallow pleats that give greater dirt holding capacity, longer filter cycles and less cleaning. The manufacturer states that the modular media design offers dirt-loading capability up to 15 times greater than sand filters of equivalent size. The tank is a two piece housing in rugged ABS thermoplastic, finished in matte black.

Service and plumbing

A Posi-Ring locking ring gives fast access to the tank internals, and the split tank allows a simple rinse-in-place cleaning. The PLM150 has 2 in plumbing and is rated for 56 to 150 gpm. Two 2 in NPT drain ports are supplied with a reducer bushing and a 1-1/2 in drain plug. Its compact footprint suits tight installations.

Before you order

Match the filter area and flow range to your pump and plumbing. The PLM150 is the 150 sq ft model of the PLM Series.

Specifications
Brand Pentair
Manufacturer part number PLM150
UPC 022315205901
Series Sta-Rite System 2 PLM Series modular media filter
Type Cartridge filter, in-ground
Filter area 150 sq ft
Flow range 56 to 150 gpm
Plumbing 2 in
Tank Two piece ABS thermoplastic housing with Posi-Ring lock
Drain ports 2 in NPT with reducer bushing and 1-1/2 in drain plug
Color Black
Typical installation Aboveground pools, inground pools and inground hot tubs
Shipping weight 40 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29899 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What pools is the Pentair PLM150 filter made for?
It is made for small inground and above ground pools and for inground hot tubs.
What flow rate does the PLM150 handle?
It is rated for 56 to 150 gpm with 2 in plumbing.
How do I get into the PLM150 to clean the cartridge?
The Posi-Ring locking ring gives fast access to the tank internals, and the split tank design allows a simple rinse-in-place cleaning.
How much filter area does the Sta-Rite PLM150 have?
It has 150 sq ft of filter area.
