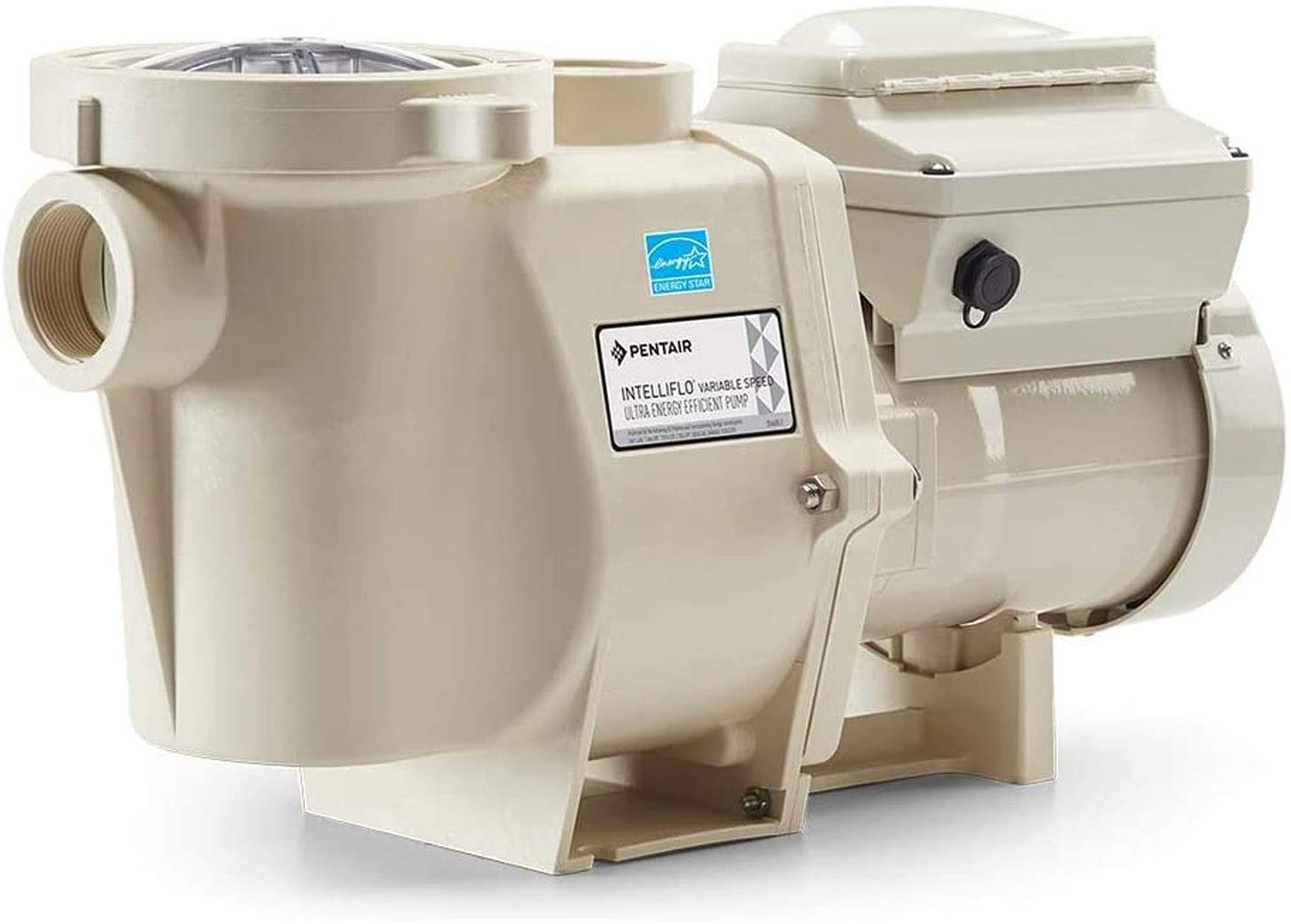

Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057 In stock$2,39900
Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057
Shop all Pentair

Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057

Ask a questionMPN EC-011057
$2,39900 $2,979.00 19% OFF
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built-in SVRS the Safety Vacuum Release System detects drain blockage and shuts the pump off automatically.
  • Variable speed run slow for filtration and fast for cleaning, with the speeds programmed on the pump.
  • Permanent magnet motor the same motor technology used in hybrid cars, quieter and more efficient than induction.
  • Up to 90% energy savings compared with a single speed pump, per Pentair, with the conditions noted below.
  • Onboard digital intelligence schedules and speeds set at the pump, no external controller required.
  • Eco Select brand choice one of Pentair's most efficient designations.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057, SKU PUR-10-3101. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057

$2,39900
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair Rubber Impeller Washer Gasket, 075713
Pentair

Rubber Impeller Washer Gasket, 075713

$599
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Hayward W3SP3206VSP TriStar VS 950 2.7 HP variable speed pool pump, front view Hayward TriStar VS 950 Variable Speed Pool Pump, 2.7 HP 115V-230V, W3SP3206VSP$2,69900 Web Price Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,21199 Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price Pentair WhisperFlo XF 5HP three phase pool pump, part 022019 Pentair WhisperFlo XF 5HP 3PH Pump, 022019$3,01799 Pentair 011533 WhisperFlo VST 2.6 THP variable speed pool pump Pentair WhisperFlo VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, TradeGrade, 011533$1,76699 Pentair 011066 IntelliFlo3 VSF 1.5HP variable speed and flow pool pump Pentair IntelliFlo3 VSF Variable Speed and Flow Pool Pump with Relay Board, 1.5HP 115/208-230V, 011066$1,42199
Moov MP165AIDV Ai Inverter variable speed pool pump with Wi-Fi Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.65THP, MP165AIDV$1,29900 Web Price AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Waterway PD-270 Power Defender 2.7 HP 230V variable speed pool pump Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270$1,46299 Pentair 022035 WhisperFloXF VS 5HP variable speed commercial pool pump Pentair WhisperFloXF 5HP Variable Speed Pool Pump, 208-230/277-460V 1-Phase / 208-460V 3-Phase, 022035$3,22299 Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,29299 Hayward W3SP2303VSP MaxFlo VS 1.65 HP 230V variable speed pool pump Hayward MaxFlo VS 1.65 HP 230V Variable Speed Pool Pump, W3SP2303VSP$1,74900 Web Price Hayward W3VSP23420 MaxFlo VS 420 variable speed pump with Omnix control Hayward MaxFlo VS 420 Variable Speed Pump with Omnix, W3VSP23420$1,79900 Web Price Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001$1,28799 Pentair 022017 WhisperFloXF 2 HP high performance pool pump Pentair 022017 WhisperFloXF High Performance Pump 2 HP 208-230/460V$1,71399 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair IntelliFlo VS+SVRS is a variable speed inground pool pump with a Safety Vacuum Release System built in. It combines variable drive technology, onboard digital intelligence and a permanent magnet motor, the motor technology used in hybrid cars, to cut pump energy use by up to 90% compared with a single speed pump.

The safety system

SVRS monitors for a drain blockage and shuts the pump off automatically when it detects one. It works alongside compliant drain covers as an entrapment safeguard, and this model was the first pool pump to build it in.

Variable speed, controlled at the pump

Filtration runs slowly and quietly for most of the day, with higher speeds reserved for cleaning and backwashing. Schedules and speeds are programmed on the pump's own digital control, so no external controller is required, and it can also run under Pentair automation.

Before you order

Pentair's savings figure is based on a variable speed pump compared with a single speed pump running 12 hours per day at an average of $0.16 per kWh in a 20,000 gallon pool. Actual savings vary with pump horsepower, RPM, plumbing size and length, pump model, service factor and other hydraulic factors.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Parts for this pump

This is the VS+SVRS, after October 2020 in Pentair's parts list.

Pentair IntelliFlo Pump parts diagram34 numbered parts, with the ones for the VS+SVRS, after October 2020 already picked.Open the diagram

Bought most for this pump

Specifications
Brand Pentair
Manufacturer part number EC-011057
UPC 788379500214
Dealer part number 011057, the number Pentair sells the IntelliFlo VS+SVRS under through dealers
Type Variable speed pool pump with built-in safety vacuum release (SVRS), self priming
Speed Variable, 1,100 to 3,450 RPM; presets of 1,100, 1,500, 2,350 and 3,110 RPM; up to eight programmed speeds
Total horsepower 3.95 THP
Service factor 1.0
Weighted energy factor (WEF) 6.9, by Pentair and DOE's certification record
Voltage 230 VAC, 50 or 60 Hz
Phase Single phase
Full load amps 16 A
Maximum input 3,200 W
Circuit protection Two pole 20 A device at the panel, by Pentair's manual
Unions Not included; Pentair's union kit 357603 holds the pair for one pump
Flow at 50 ft of head About 148 GPM at 3,450 RPM, read from the performance curve in Pentair's manual
Motor Permanent magnet synchronous, totally enclosed fan cooled (TEFC), 56 square flange, 3.2 kW
Control Onboard keypad; RS-485 link to Pentair IntelliTouch, EasyTouch, SunTouch and IntelliComm controls
Safety Built-in safety vacuum release (SVRS) to ASME A112.19.17; Pentair says it cannot be turned off
Certifications ENERGY STAR certified, by Pentair
Dimensions 23.4 in long, 13.1 in high, by Pentair's drawing
Shipping weight 55 lb, Pentair's carton weight
Warranty 2 years, parts only, by Pentair for IntelliFlo SVRS pumps bought online
Application Inground pools
Efficiency Up to 90% pump energy savings vs single speed, per Pentair
Program Eco Select brand choice
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3899

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between EC-011057 and 011057?
Both are Pentair's IntelliFlo VS+SVRS. Pentair keeps part numbers that begin with EC- for online sale and sells 011057 through dealers and pool stores. DOE's certification database lists both at 3.95 total horsepower and a weighted energy factor of 6.9. This listing is EC-011057, which carries Pentair's online warranty.
How long is the warranty on an IntelliFlo VS+SVRS bought online?
Two years, parts only, from the date of purchase. Pentair's warranty page gives most products bought on the internet one year, parts only, and names its IntelliFlo SVRS pumps as the exception at two years. Pentair does not cover labor on internet purchases.
Can I turn off the SVRS on an IntelliFlo VS+SVRS?
No. Pentair says the built-in safety vacuum release cannot be switched off. The menu only sets what happens after a blockage stop: by default the pump restarts after two minutes, adjustable from 30 seconds to 5 minutes, or it waits for someone to restart it by hand. Pentair warns that with auto restart on, ten failed soft starts lead to a full prime during which the SVRS is off. It says to check local codes before changing the setting.
What breaker does an IntelliFlo VS+SVRS need?
A two pole 20 A device at the electrical panel, by Pentair's manual. The pump takes 230 VAC, single phase, at 50 or 60 Hz, draws up to 3,200 W and is rated at 16 full load amps. It has no 115 V option.
