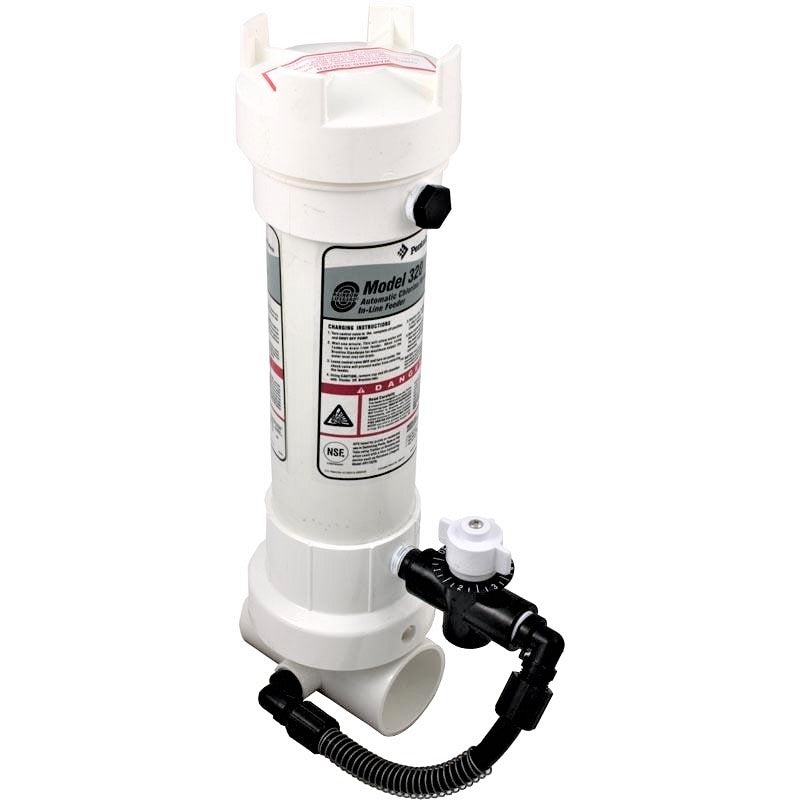

Pentair Rainbow 320 in-line chlorinator R171096, front view
Shop all Pentair

Pentair Rainbow 320 In-Line Chlorinator, R171096

Ask a questionMPN R171096
$14999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • In-line installation plumbs permanently into the return line on the pressure side, after the filter and heater.
  • Trichlor or bromine takes large or small slow-dissolving tablets.
  • External feed control a fine-control valve on the outside sets the feed rate to suit the pool or spa.
  • Top loading tablets go in from the top.
  • Fully enclosed no escaping fumes and no special venting required.
  • Extension available a feeder extension raises tablet capacity for longer stretches between refills.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Rainbow 320 In-Line Chlorinator, R171096, SKU RAI-45-806. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Rainbow 320 In-Line Chlorinator, R171096
Pentair

Rainbow 320 In-Line Chlorinator, R171096

$14999
Pool Season 3 in. Jumbo Chlorinating Tablets, 47251270
Pool Season

3 in. Jumbo Chlorinating Tablets, 47251270

$5900
AquaFinesse Pool Water Care Tablets, 16 Tablets, 956330
AquaFinesse

Pool Water Care Tablets, 16 Tablets, 956330

$7399
Subtotal

Similar products

Other products people compare with this one.

Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$15099 Hayward CL220 off-line automatic chlorinator chemical feeder Hayward Off-line Automatic Chlorinator Chemical Feeder CL220$15399 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$15299 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$17199 King Technology Perform-Max Model 940 in ground in-line chemical feeder King Technology Perform-Max Model 940 In Ground In-Line Feeder, 01-05-0940$13799 Hayward CL110ABG automatic off-line chlorine feeder Hayward Automatic Off-Line Chlorine Feeder, CL110ABG$10199 Hayward CL220BR off-line brominator with 9 lb. bromine tablet capacity Hayward CL220BR Off-Line Brominator, 9 lb. Capacity$16499 Waterway CLC012-W in-line automatic chlorine tablet feeder, white Waterway In-Line Chlorinator, White, CLC012-W$10899 CMP PowerClean Ultra off-line chlorinator with clear glass lid, part 25280-300-000 CMP PowerClean Ultra Off-Line Chlorinator, Clear Glass Lid, 25280-300-000$21299
King Technology Perform-Max Model 960 in ground off-line chemical feeder King Technology Perform-Max Model #960 In Ground Off-Line Feeder, 01-05-0960$16499 King Technology New Water Model 400 in-line chlorine cycler for in ground pools King Technology New Water Model 400 In-Line Cycler for In Ground Pools, 01-01-0400$16299 Pentair Rainbow 300 off line chlorinator, part R171016 Pentair Rainbow Off Line Chlorinator #300, R171016$14199 Hayward CL2002S in-line chlorinator with 2 in. slip PVC connections Hayward In-line Chlorinator, 2" Slip PVC Connections, CL2002S$15899 Pentair Rainbow 300-29X offline commercial chlorinator, part R171070 Pentair Rainbow Commercial Chlorinator #300-29X, Offline, R171070$24399 Advantis Technologies Leisure Time Spa Mineral Purifier | 23434 Advantis Technologies Leisure Time Spa Mineral Purifier | 23434$5199 Poolmaster Inc. Clori-duck Mallard Chlorine Dispenser | 32130 Poolmaster Inc. Clori-duck Mallard Chlorine Dispenser | 32130$4399 King Technology Flippin Frog Sanitizer | 01-12-8406 King Technology Flippin Frog Sanitizer | 01-12-8406$4295 Web Price Poolstyle adjustable spa floater for 1 inch chlorine tablets Poolstyle Adjustable Spa Floater, 1" Tablets, 27051-029-000$2599 Pentair R171086 floating chlorine tablet dispenser, model #330 Pentair Floating Chlorine Tab Dispenser, R171086$2499

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair Rainbow 320 is the in-line tablet feeder: it is plumbed permanently into the return line, on the pressure side of the pump and downstream of the filter and heater, and dispenses sanitizer straight to the pool or spa after all the equipment.

How it works

Load large or small slow-dissolving trichlor or bromine tablets from the top. An external fine-control valve sets the feed rate to suit the pool or spa. The system is fully enclosed, so there are no escaping fumes and no special venting, and it cuts down on handling chemicals by hand.

Capacity and options

Pentair offers a feeder extension that raises tablet or stick capacity, useful for going away without the pool running short of chlorine. The 320 is the in-line model; if you need a feeder that tees off the return line rather than sitting in it, the off-line equivalent is the Rainbow 300.

Specifications
Brand Pentair
Manufacturer part number R171096
UPC 788379004385
Model Rainbow 320
System type In-line
Chemical type Trichlor or bromine tablets
Tablet size Large or small
Pool type In ground, residential
Installation Pressure side, downstream of filter and heater
Feed control External fine-control valve
Loading Top
Shipping weight 4.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099 Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699
Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3999

Questions and answers

What people ask about this product, answered by our pool techs.

Where does it go in the plumbing?
In the return line on the pressure side of the pump, downstream of the filter and heater, so sanitizer goes to the pool after all the equipment.
Can I use bromine tablets?
Yes. The Rainbow 320 takes large or small slow-dissolving trichlor or bromine tablets.
Is this the in-line or the off-line model?
In-line. It is plumbed directly into the return line. The off-line version, which tees off the line with tubing, is the Rainbow 300.
Can I increase the tablet capacity?
Yes. Pentair makes a 20 in. chlorinator extension for its automatic feeders that raises the tablet or stick capacity.
