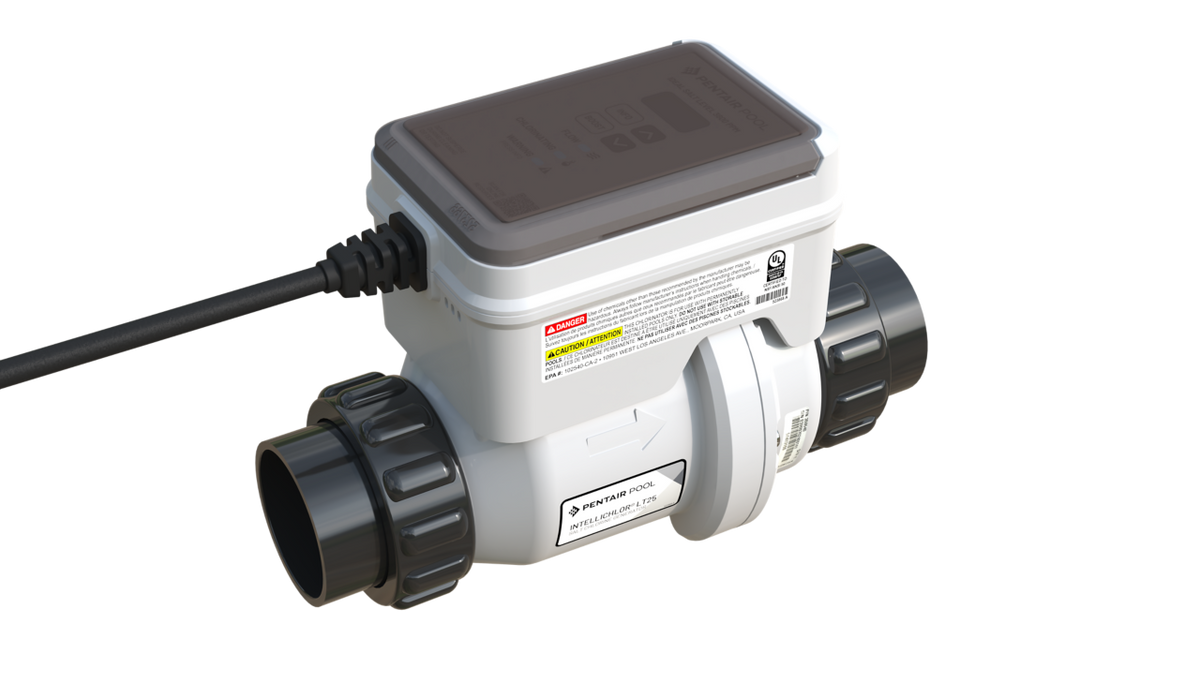

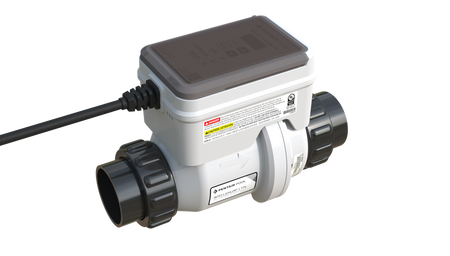

Pentair IntelliChlor LT25 salt chlorine generator cell 523747-ECPentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC In stock$1,14900
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC
Shop all Pentair

Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC

Ask a questionMPN 523747-EC
$1,14900
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Replaces the IC20 and iChlor 30 Works on existing Pentair IntelliChlor and iChlor 30 power centers with no replumbing.
  • Adapters in the box Two installation adapters extend the shorter LT25 to the original IC20 cell length.
  • Modular design The electronics and sensors are field replaceable, and the onboard computer separates from the cell for cleaning.

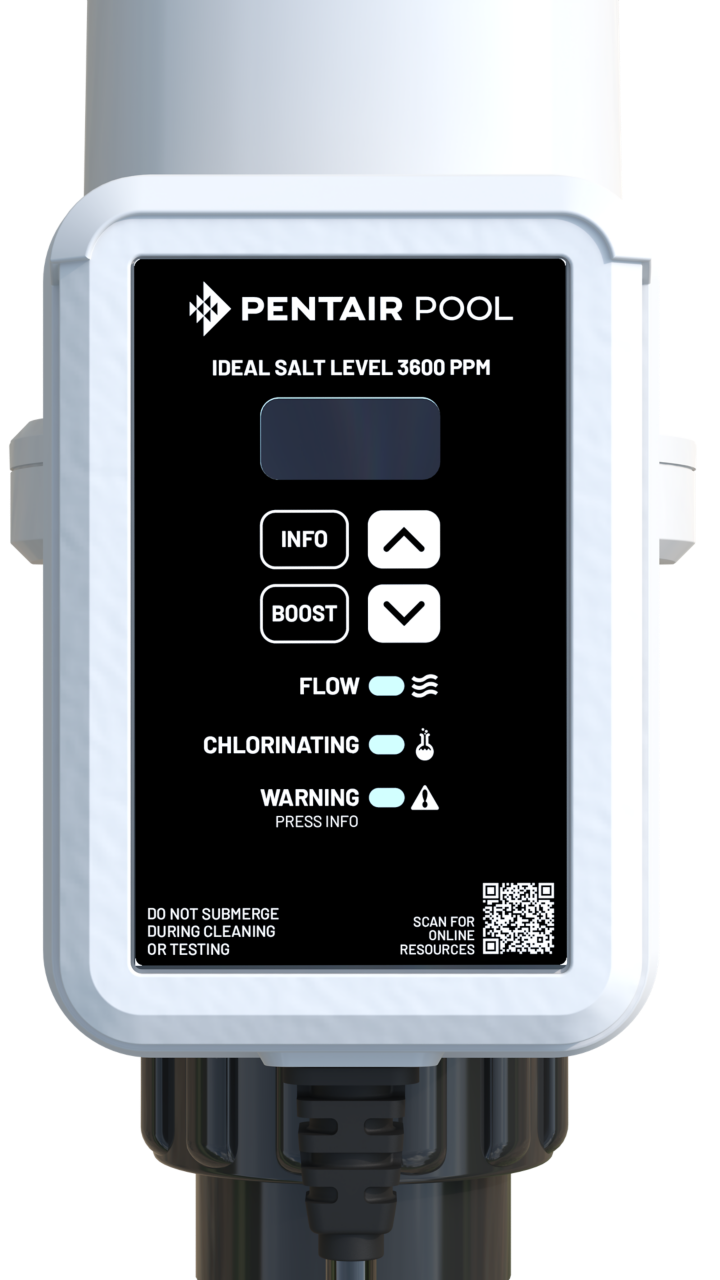

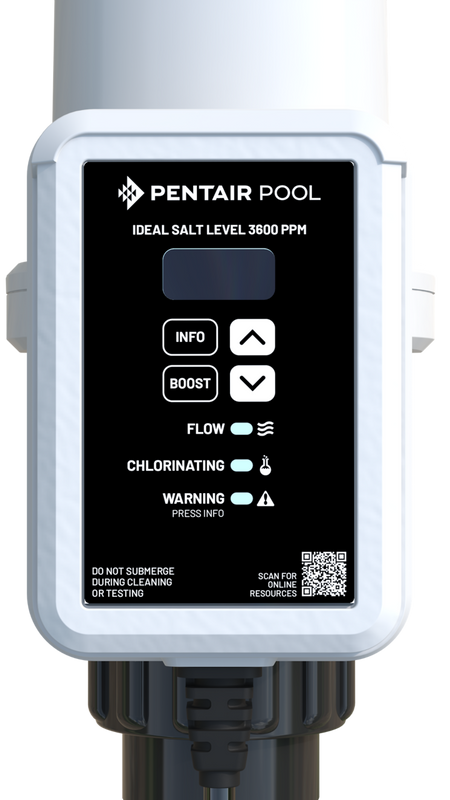

  • Display and diagnostics An LCD/LED display shows system status, chlorine output and built-in diagnostic information.
  • SmartSense output control Chlorine generation adjusts automatically when the pump is off or the pool cover is closed.
  • Self cleaning Regular polarity reversal limits scale on the plates, and an acid cleaning stand is included for routine maintenance.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC, SKU PAC-45-1569. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC
Pentair

IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC

$1,14900
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12999
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price CompuPool GRC/EM replacement salt cell for Ecomatic ESC24, ESC36 and ESC48 CompuPool Replacement Salt Cell for M0657USA Ecomatic Models ESC24, ESC36, ESC48$60099 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$84099 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price AutoPilot PPC1 5-blade replacement salt cell with unions and inline strainer AutoPilot PPC1 OEM Replacement Salt Cell with Unions, 5-Blade, 40K gal$59900 CaliMar CMARCIC40-1Y replacement salt cell compatible with IntelliChlor IC40 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC40, 40K Gallons, CMARCIC40-1Y$89900 Web Price CaliMar CMARCFS40-1Y replacement salt cell for Zodiac Nature 2 Fusion R0503000 CaliMar Replacement Salt Cell Compatible with Zodiac Nature 2 Fusion R0503000, 40,000 Gallons, CMARCFS40-1Y$69900 Web Price AutoPilot PPC2 replacement salt cell with unions, for pools up to 32,000 gallons AutoPilot PPC2 Replacement Cell With Unions$88900 Jandy PLC700 AquaPure PureLink three port salt cell kit with 16 ft cables Jandy AquaPure PureLink Salt Chlorine Generator Cell Kit, 12K Gallon Pools, PLC700$99900
AutoPilot PPC3 replacement salt cell with unions for Pool Pilot systems AutoPilot PPC3 Replacement Cell with Unions$88900 Solaxx CLG140A-010 PureChlor replacement salt cell for pools up to 40,000 gallons Solaxx PureChlor Replacement Salt Cell, Up to 40K Gallons, CLG140A-010$1,24699 CaliMar CMARCHA40-1Y replacement salt cell compatible with Hayward T-Cell-15 CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 40K Gallons, CMARCHA40-1Y$62900 Web Price Solaxx CLG125A-010 PureChlor 25K gallon replacement salt cell Solaxx PureChlor 25K Gallon Replacement Salt Cell, CLG125A-010$88399 CompuPool GRC/R/AE7 seven blade replacement salt cell for Resilience A7 and E7C, up to 60,000 gallons CompuPool Resilience 7-Blade Salt Cell Replacement, For up to 60K Gallons$60399 CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price CMP 52000-240-110 PowerClean Salt Cell 540 replacement cell for pools up to 40,000 gallons CMP PowerClean Salt Cell 540, 40K Gallons, 52000-240-110$87099 Solaxx CLGD40-010 D5 replacement salt cell, 40K size Solaxx D5 Replacement Salt Cell 40K CLGD40-010$1,30199 Hayward T-CELL-3 AquaRite TurboCell for pools up to 15,000 gallons with 15 foot cord Hayward AquaRite Turbo Cell 15k Gallons with 15' Cord, W3T-CELL-3$69900 Web Price Pentair 523730 IntelliChlor Plus30 replacement salt chlorine generator cell for pools up to 30,000 gallons Pentair IntelliChlor Plus30 Salt Chlorine Generator Replacement Cell, 30K Gal, 523730$1,09599

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair IntelliChlor LT25 is the current 2025 salt chlorine generator cell for pools up to 25,000 gallons. It replaces the IntelliChlor IC20 and the iChlor 30 directly and runs on the power center you already have. The LT25 is shorter than the IC20, so Pentair ships two installation adapters in the box that bring it to the original length. Nothing has to be replumbed.

Output and control

At 100% output the cell produces 0.90 lb of chlorine per 24 hours. An LCD/LED display shows system status, chlorine output and diagnostic information at a glance. SmartSense turns generation down automatically when the pump is off or the cover is closed, which saves cell life, and a redesigned conductivity sensor gives more accurate salt readings than earlier cells.

Built to be serviced

The LT25 is modular. The onboard computer separates from the cell, so the cell can be acid cleaned without handling the electronics, and the sensors and electronics can be replaced individually instead of replacing the whole unit. Regular polarity reversal keeps scale from building on the plates, and an acid cleaning stand is included for the times it does.

New to salt?

A cell on its own needs a power center. For a new system, add the Pentair EC-520556 power center, 110/220V with the power cable included, which also ties into EasyTouch and IntelliTouch automation. If your pool is over 25,000 gallons, or you are replacing an IC40, the IntelliChlor Plus40 is the right size.

From Pool School

How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read Generic vs OEM Salt CellsWhat you can compare on paper between the original and another manufacturer's cell, and what you cannot. Read
Specifications
Brand Pentair
Manufacturer part number 523747-EC
UPC 788379918613
Pool size Up to 25,000 gallons
Chlorine output 0.90 lb per 24 hours at 100% output
Replaces Pentair IntelliChlor IC20, iChlor 30
Compatible power centers Existing Pentair IntelliChlor and iChlor 30 power centers
Power center for new systems Pentair EC-520556, 110/220V, power cable included
Automation Pentair EasyTouch, IntelliTouch
Display LCD/LED with diagnostics
Salt sensor Redesigned conductivity sensor
Included Two installation adapters, acid cleaning stand
Model year 2025
Shipping weight 8.55 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3899

Questions and answers

What people ask about this product, answered by our pool techs.

Will the LT25 replace my IntelliChlor IC20?
Yes. It runs on the existing IntelliChlor power center. The LT25 is shorter than the IC20, so two adapters come in the box to bring it to the original length, and the plumbing stays as it is.
I have an iChlor 30. Does this fit?

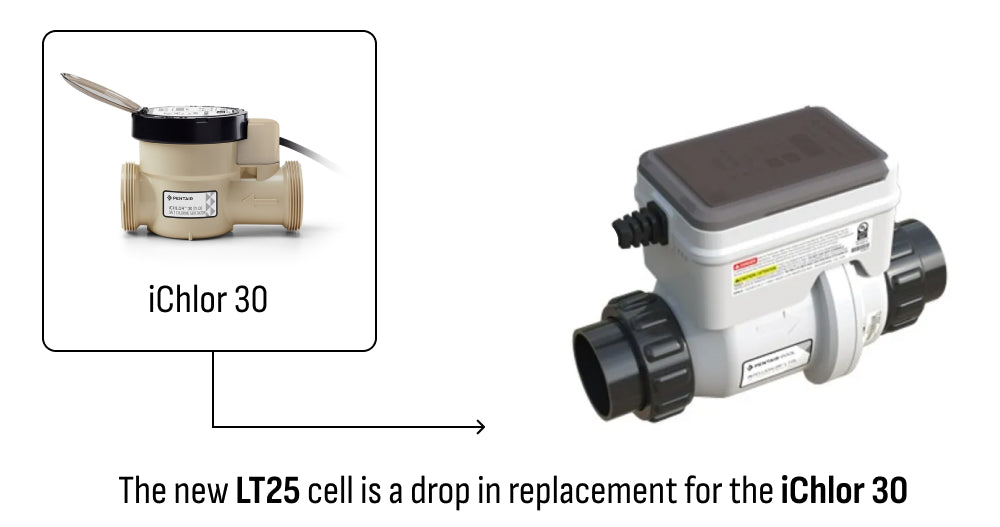

Yes. The LT25 is also a drop-in replacement for the iChlor 30 and works on the existing iChlor 30 power center without replumbing.
Do I need anything else for a new installation?
If you do not already have a power center, you need the Pentair EC-520556, 110/220V with the power cable included. It works with EasyTouch and IntelliTouch automation.
My pool is bigger than 25,000 gallons. Is this the right cell?
No. The LT25 is rated to 25,000 gallons. For larger pools, and especially when replacing an IC40, step up to the IntelliChlor Plus40.
