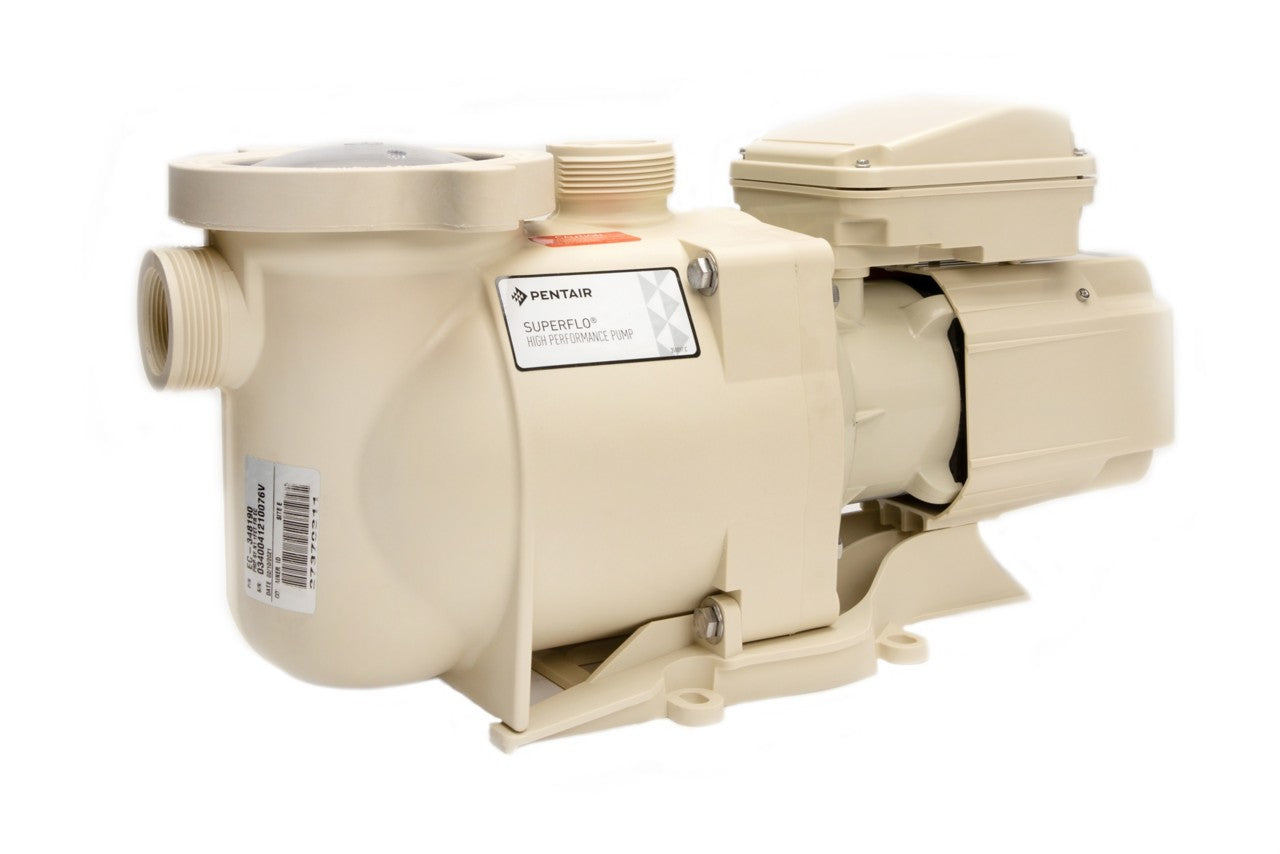

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230VPentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190 In stock$74800
Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V
Shop all Pentair

Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190

5.0 (1) Ask a questionMPN EC-348190
$74800 $819.00 9% OFF
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1.1 total horsepower sized for typical inground pools.
  • NEMA Premium efficient motor a 56 square flange motor that meets the DOE pump rule.
  • Dual voltage wires for 115V or 230V.
  • Quiet, compact thick walled body, engineered hydraulics and a small footprint for a crowded pad.
  • Cam and ram lid locks with a quarter turn for quick basket checks.
  • Unionized fittings connect and disconnect without cutting pipe.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190, SKU PAC-10-0000. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190
Pentair

SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190

$74800
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Pentair SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant, 356197
Pentair

SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant, 356197

$3899
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$81799 Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV$1,09900 Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299 Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Hayward Max-Flo XL 1.0 HP max-rated inground pool pump Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$74900 Web Price CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010 CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010$74900 Web Price

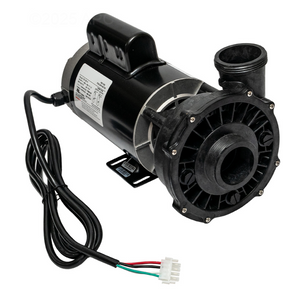

Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D$38899 Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$46599 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010$36699 Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399 HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,21199 Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010$26799 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010$26599 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair SuperFlo EC-348190 is a single speed inground pool pump with a 1.1 total horsepower motor that runs on 115V or 208-230V. It is the workhorse of the SuperFlo line: thick walled body castings, engineered hydraulics and a heavy-duty 56 square flange motor.

Efficient for a single speed

The motor is NEMA Premium efficient and the pump is DOE compliant, so it meets the federal efficiency rule for dedicated purpose pool pumps while staying a simple single speed unit. It runs quietly and its small footprint fits a crowded equipment pad.

Built for service

The Cam and Ramp lid locks with a quarter turn, so the basket is a ten second check. Unionized fittings mean the pump comes off the pad without cutting pipe.

Before you order

This is a single speed pump. If you want lower running costs or your utility offers rebates, the variable speed SuperFlo VS is the alternative in the same footprint. Confirm supply voltage before installation.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Pentair
Manufacturer part number EC-348190
UPC 788379500801
Dealer part number 348190, the number Pentair sells the SuperFlo High Performance pump under through dealers
Type Single speed pool pump, self priming
Speed Single speed
Total horsepower 1.1 THP
Service factor 1.0
Weighted energy factor (WEF) 3.7, by DOE's certification record for EC-348190; Pentair's page and 2021 brochure print 3.6 for 348190
Voltage 115 or 208 to 230 VAC, 60 Hz
Phase Single phase
Full load amps 10.5 A at 115 V, 5.5 to 5.4 A at 208 to 230 V
Port size 1.5 in internal slip, 2 in external slip, quick disconnect unions
Flow at 50 ft of head About 30 GPM, read from the curve in Pentair's manual, which tops out near 51 ft
Motor NEMA Premium efficient, totally enclosed fan cooled (TEFC)
Lid Cam and Ramp, locks with a quarter turn
Certifications UL, NSF/ANSI 50, by Pentair
Shipping weight 50 lb, Pentair's carton weight for 348190
Warranty 1 year, parts only, by Pentair for e-commerce (EC) models and online purchases
DOE compliant Yes
Application Inground pools
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Reviews

5.0
1 review
Write a reviewAsk a question

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199 Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900
Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3899

Questions and answers

What people ask about this product, answered by our pool techs.

Is the SuperFlo EC-348190 a 1 HP or a 1.1 HP pump?
1.1 total horsepower, with a 1.0 service factor, on a NEMA Premium efficient TEFC motor. Pentair rates it that way and DOE's certification record for EC-348190 agrees. Pentair's charts compare it with its older 1.0 HP SuperFlo, which Pentair says does not meet the DOE rule.
What size pipe fits the SuperFlo EC-348190?
Pentair fits it with quick disconnect unions that take 1.5 inch pipe inside the slip socket or 2 inch pipe over the outside: 1.5 inch internal slip, 2 inch external slip. Pentair lists the port size as 1.5 inch.
How much head can a SuperFlo EC-348190 pump against?
About 51 feet at most. DOE's certification record for EC-348190 gives a maximum head of 51 feet, and the curve in Pentair's current manual starts there, passes 50 feet at about 30 GPM and falls to about 20 feet at 100 GPM.
What warranty comes with the SuperFlo EC-348190?
One year, parts only, from the date of purchase. That is Pentair's warranty for its e-commerce (EC) models and for products bought online, with no labor coverage. Pentair's standard terms, which add labor, are for equipment bought from a pool store, builder or service company and professionally installed.
Ask your own question
