Pentair 355030 square profile high flow diffuser o-ringPentair Genuine OEM High Flow Diffuser O-Ring, 355030 In stock$1799
Pentair 355030 square profile high flow diffuser o-ring
Shop all Pentair

Pentair Genuine OEM High Flow Diffuser O-Ring, 355030

Ask a questionMPN 355030
$1799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Square profile This is a square ring, not a round o-ring, so a generic round seal will not seat in the groove.
  • Exact size 3-1/8 in. outside diameter, 2-3/4 in. inside diameter.
  • Fits four pump families Pinnacle High Flow in-ground, SuperFlo, SuperMax and Challenger High Flow.
  • Seals the diffuser Sits between the diffuser and the housing so water is forced through the impeller rather than around it.
  • Restores lost pressure A flattened diffuser ring lets water bypass the impeller and the pump loses head.
  • Lubricate on install A light coat of silicone o-ring lube helps it seat and keeps it from rolling out of the groove.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Genuine OEM High Flow Diffuser O-Ring, 355030, SKU PAC-101-3107. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509
Pentair

Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

$1399
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$31099
Pentair Challenger Front Housing, Slip Suction, Black, 355468Z
Pentair

Challenger Front Housing, Slip Suction, Black, 355468Z

$13999
Pentair Challenger Pump Strainer Pot, 355300
Pentair

Challenger Pump Strainer Pot, 355300

$13999
Pentair Challenger Front Housing O-Ring, 355329Z
Pentair

Challenger Front Housing O-Ring, 355329Z

$2299
Subtotal

Similar products

Other products people compare with this one.

Pentair 355331Z Waterfall and Challenger pump diffuser o-ring Pentair Waterfall/Challenger Pump Diffuser O-Ring, 355331Z$1099 Pentair 154699 drain plug, 1/4 inch NPT Pentair Genuine OEM Drain Plug 1/4" NPT, 154699$1099 Pentair 355619Z SuperFlo and Pinnacle seal bracket O-ring Pentair SuperFlo Seal Bracket O-Ring, 355619Z$1699 Pentair 357099Z square ring for the seal plate on Max-E-Pro and IntelliPro pumps Pentair Square Ring, Seal Plate, Max-E-Pro / IntelliPro, 357099Z$1899 Pentair 355317 mounting plate gasket for high pressure pool pumps Pentair Mounting Plate Gasket, 3/4 HP to 3 HP, High Pressure, 355317$2099 Aladdin GO-KIT5-9 pump rebuild kit for Pentair PacFab Challenger pumps, shaft seal and o-rings Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9$2499 Pentair 355389 left hand thread impeller locking screw Pentair Impeller Locking Screw, 355389$1099 Pentair 350093 union adapter for SuperFlo and SuperMax pool pumps Pentair SuperFlo and SuperMax Union Adapter, 350093$2599 Pentair 072184 stainless steel washer, 3/8 in. by 13/16 in. Pentair Washer 3/8"x13/16", 072184$1416 Pentair C8-58PZ Max-E-Pro strainer trap basket Pentair Max-E-Pro Strainer Trap Basket, C8-58PZ$1899
Pentair 357161 quarter inch black wing drain plug for pool pumps Pentair Drain Plug, Wing 1/4", Black, 357161$1099 SuperPro B-219 pool pump strainer basket for Pentair Challenger pumps SuperPro Pool Pump Basket Replaces Pentair Challenger 355318 or R38024, B219$1899 Swimables SW-21-092 replacement nut for the Pentair SuperFlo pump Swimables Generic Nut Replacement for Pentair SuperFlo Pump, SW-21-092$2199 Sta-Rite U9-228A seal plate o-ring for Pinnacle pumps Sta-Rite Seal Plate O-Ring for Pinnacle, U9-228A$1799 Sta-Rite C35-43 motor vibration pad for Max-E-Pro pumps Sta-Rite Motor Pad for Max-E-Pro Pumps, C35-43$1499 Sta-Rite C30-12 impeller screw for Max-E-Glas and Dura-Glas pumps Sta-Rite Impeller Screw, 1.5 HP Thru 3 HP, C30-12$1999 Sta-Rite U30-542SS cap screw, #8-32 by 7/8 inch Sta-Rite Cap Screw, #8-32 x 7/8", U30-542SS$1299 Sta-Rite C108-33P strainer basket for Dura-Glas and Max-E-Glas pumps Sta-Rite Strainer Basket for Dura-Glas and Max-E-Glas Pumps, C108-33P$2099 Sta-Rite U43-21SS extended tooth lock washer for Sta-Rite and Pentair pumps Sta-Rite Extended Tooth Lock Washer, U43-21SS$1599 Sta-Rite J3-2 copper seal plate insert for pre 1998 pumps Sta-Rite Seal Plate Insert, Pre 1998$2299

Product details

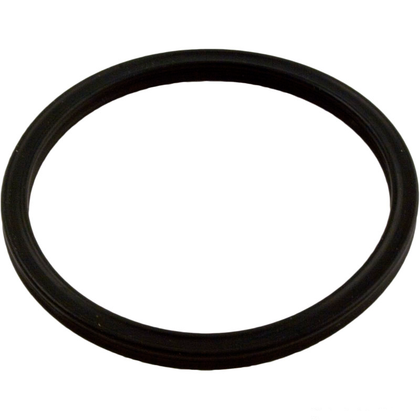

The Pentair 355030 is the high flow diffuser o-ring, a square profile ring measuring 3-1/8 in. outside diameter by 2-3/4 in. inside diameter. It is the genuine Pentair part.

Square, not round

The groove in these pumps is cut for a square cross section. A round o-ring of similar diameter will sit proud, roll under load, and never seal properly, so it is worth ordering the correct part rather than substituting from a drawer of assorted rings.

Which pumps

Pentair Pinnacle High Flow in-ground pumps, SuperFlo, Challenger High Flow and the Sta-Rite SuperMax.

What it does

The diffuser sits over the impeller and turns velocity into pressure. This ring seals it to the housing so all the flow is forced through the impeller eye. When it hardens and flattens, water bypasses the impeller, and the pump loses head while the motor sounds exactly as it always has.

Fitting

Clean the groove, fit the new ring dry into a clean seat, and give it a thin film of silicone o-ring lubricant so it stays put as the pump goes back together.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

16 Key 16 on the Pentair SuperFlo PumpFits every model in the drawing.See it on the diagramAll Pentair SuperFlo Pump Parts 38 parts and the drawing13 Key 13 on the Pentair Challenger PumpFor the High Flow 1/2F, 3/4A (High Flow 1/2F, 3/4A), High Flow 3/4F, 1A (High Flow 3/4F, 1A), High Flow 1F, 1-1/2A (High Flow 1F, 1-1/2A), High Flow 1-1/2F, 2A (High Flow 1-1/2F, 2A), High Flow 2F, 2-1/2A (High Flow 2F, 2-1/2A).See it on the diagramAll Pentair Challenger Pump Parts 48 parts and the drawing
Specifications
Brand Pentair
Manufacturer part number 355030
UPC 788379701154
Type Diffuser o-ring
Cross section Square
Outside diameter 3-1/8 in.
Inside diameter 2-3/4 in.
Part type Pool pump part
Fits Pentair Pinnacle High Flow in-ground pump, SuperFlo, Challenger High Flow, Sta-Rite SuperMax
Shipping weight 0.02 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What are the dimensions?
3-1/8 in. outside diameter and 2-3/4 in. inside diameter, with a square cross section.
Which pumps use it?
The Pentair Pinnacle High Flow in-ground pump, SuperFlo, Challenger High Flow and the Sta-Rite SuperMax.
Can I use a round o-ring of the same size?
No. The groove is cut for a square profile ring. A round seal of similar diameter will not sit correctly and will not hold the diffuser tight to the housing.
What goes wrong when this ring fails?
Water finds its way around the diffuser instead of through the impeller. The motor sounds normal, but the pump loses pressure and the returns weaken.
