Pentair 152509 square section 8.5 in. closure o-ring for Challenger pumpsPentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509 In stock$1399

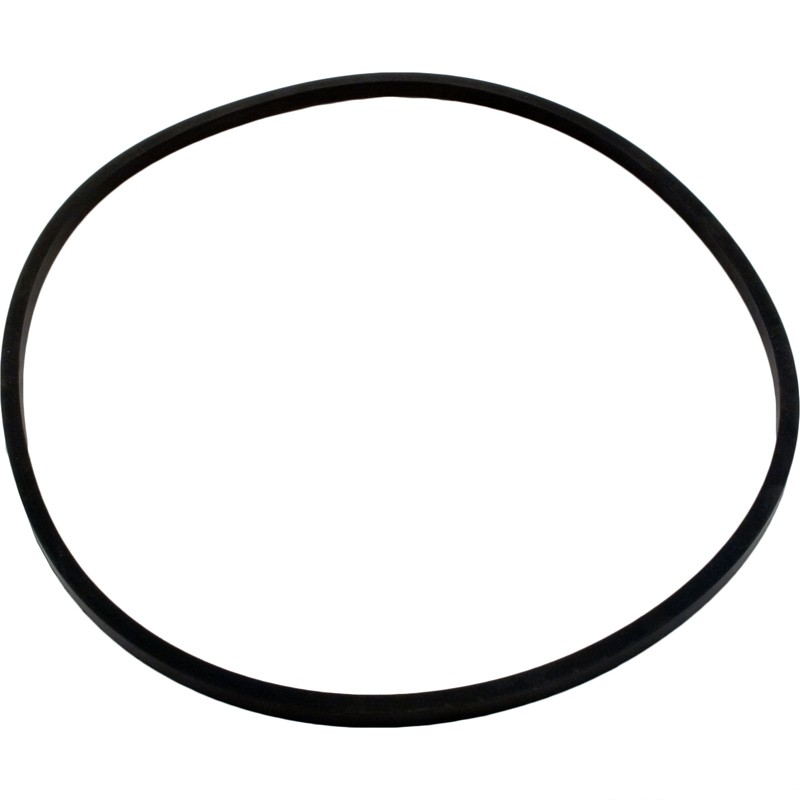

Pentair 152509 square section 8.5 in. closure o-ring for Challenger pumps
Shop all Pentair

Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

Ask a questionMPN 152509
$1399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair OEM part 152509, the square section o-ring Pentair fits at the factory.
  • Square cross section Made for the 8.5 in. closure groove; a round o-ring will not seat the same way.
  • Challenger pumps The lid o-ring for Challenger high head and high flow models.
  • Triton sand filters Also listed for the Triton II TR40 through TR140, the commercial TR100C and TR140C, and the Triton C-3.
  • Stops air leaks A flattened or cracked lid o-ring lets air into the pump; a new one restores a full prime.
  • Lube on install A light coat of silicone o-ring lubricant helps the seal seat and last.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509, SKU PAC-051-9315. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509
Pentair

Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

$1399
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Challenger Front Housing, Slip Suction, Black, 355468Z
Pentair

Challenger Front Housing, Slip Suction, Black, 355468Z

$13999
Pentair Challenger Pump Strainer Pot, 355300
Pentair

Challenger Pump Strainer Pot, 355300

$13999
Pentair Challenger Front Housing O-Ring, 355329Z
Pentair

Challenger Front Housing O-Ring, 355329Z

$2299
Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9
Aladdin

Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9

$2499
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Subtotal

Similar products

Other products people compare with this one.

Pentair 154699 drain plug, 1/4 inch NPT Pentair Genuine OEM Drain Plug 1/4" NPT, 154699$999 Pentair 355330 Challenger strainer pot flange o-ring, 2-3/8 inch ID Pentair Challenger Strainer Pot Flange O-Ring$799 Pentair 355331Z Waterfall and Challenger pump diffuser o-ring Pentair Waterfall/Challenger Pump Diffuser O-Ring, 355331Z$1099 Pentair 355389 left hand thread impeller locking screw Pentair Impeller Locking Screw, 355389$1099 Pentair 355334 hex washer head diffuser screw for Challenger and SuperFlo pumps Pentair Hex Head Screw for Diffuser, 355334$799 Pentair 357161 quarter inch black wing drain plug for pool pumps Pentair Drain Plug, Wing 1/4", Black, 357161$1099 Pentair 72173 stainless steel flat washer, 5/16 inch ID by 3/4 inch OD Pentair Washer 5/16" ID x 3/4" OD, 72173$899 SuperPro B-219 pool pump strainer basket for Pentair Challenger pumps SuperPro Pool Pump Basket Replaces Pentair Challenger 355318 or R38024, B219$1899 Pentair 355318Z genuine OEM Challenger pump strainer basket Pentair Genuine OEM Challenger Strainer Basket, 355318Z$4399 Pentair 355301Z Challenger strainer pot lid Pentair Genuine OEM Challenger Strainer Pot Lid, 355301Z$6599
Pentair PacFab Challenger Front Housing O-Ring 355329Z | 355329 Pentair PacFab Challenger Front Housing O-Ring 355329Z | 355329$3099 Pentair 355317 mounting plate gasket for high pressure pool pumps Pentair Mounting Plate Gasket, 3/4 HP to 3 HP, High Pressure, 355317$2099 Pentair 354545S 5/8 inch mechanical shaft seal Pentair Mechanical Shaft Seal, 5/8", 354545S$3499 Pentair 355270Z diffuser for Challenger high pressure pumps Pentair Challenger Diffuser, 1-1/2 HP Full Rated, 2 HP Up Rated, High Pressure, 355270Z$3899 Pentair 355305Z Challenger pump base Pentair Challenger Pump Base, 355305Z$4999 Pentair 355043Z impeller, 1/2 HP full rated and 3/4 HP up rated, high flow Pentair Impeller, 1/2 HP Full Rated / 3/4 HP Up Rated, High Flow, 355043Z$5399 Pentair 355068Z 3HP high flow impeller for Challenger pumps Pentair Impeller 3HP, High Flow, 355068Z$5499 Pentair 355187Z Challenger impeller, 3/4 HP full rated and 1 HP up rated high pressure Pentair Challenger Impeller, 3/4 HP Full Rated / 1 HP Up Rated, High Pressure, 355187Z$5599 Pentair 355545Z diffuser for 2 HP full rated to 3 HP up rated Challenger high pressure pumps Pentair Diffuser, 2 HP Full Rated / 3 HP Up Rated, High Pressure, 355545Z$5799 Pentair 355086Z high flow impeller for SuperFlo, SuperMax and Challenger pumps Pentair SuperFlo and SuperMax Impeller, 1.5 HP Full Rated / 2 HP Up Rated, High Flow, 355086Z$5999

Product details

Pentair part 152509 is the square section o-ring for the 8.5 in. closure on Challenger high head and high flow pumps. It is the genuine Pentair part, and it also appears in the parts lists for several Triton side mount sand filters: the Triton II TR40, TR50, TR60, TR100 and TR140, the commercial TR100C and TR140C, and the Triton C-3.

Why the profile matters

The closure groove is cut for a square cross section. Fitting a round o-ring of roughly the right diameter tends to end in a lid that will not seal, air in the pump basket and a pump that struggles to hold prime. Replacing the o-ring with the correct square section part is the fix.

Installing it

Clean the groove, wipe a light film of silicone o-ring lubricant onto the new o-ring and seat it before closing the lid. Avoid petroleum based lubricants, which attack the rubber.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

27 Key 27 on the Pentair Challenger PumpFor the High Flow 5F (High Flow 5F).See it on the diagramAll Pentair Challenger Pump Parts 48 parts and the drawing
Specifications
Brand Pentair
Manufacturer part number 152509
UPC 788379693503
Part type Pool pump part
Profile Square section o-ring
Closure size 8.5 in.
Fits Pentair Challenger high head and high flow pumps; Triton II TR40, TR50, TR60, TR100, TR140; Triton II TR100C, TR140C; Triton C-3 side mount sand filters
Shipping weight 0.02 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which Pentair pumps use this o-ring?
The Challenger high head and high flow models. It is the square section o-ring under the 8.5 in. strainer lid.
It is listed for sand filters too. Is that right?
Yes. The same 152509 o-ring appears in the parts lists for the Triton II TR40, TR50, TR60, TR100 and TR140, the commercial TR100C and TR140C, and the Triton C-3 side mount sand filters.
Why is the cross section square?
The closure groove is cut for a square profile. A round o-ring of the same diameter can roll or pinch instead of sealing flat.
Should I lubricate it?
Yes, a light film of silicone o-ring lubricant on the new o-ring helps it seat and extends its life. Do not use petroleum based grease.
Ask your own question
