Pentair 350013Z pump lid o-ring, 5-3/4 in. inside diameterPentair Lid O-Ring, 5-3/4" ID, 350013Z In stock$599
Pentair 350013Z pump lid o-ring, 5-3/4 in. inside diameter
Shop all Pentair

Pentair Lid O-Ring, 5-3/4" ID, 350013Z

Ask a questionMPN 350013Z
$599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair the OEM 350013Z o-ring, not an aftermarket cross reference.
  • Sized for the lid 5-3/4 in. inside diameter with a 1/4 in. cord thickness.
  • Fits four pump families Challenger, WhisperFlo new style, IntelliFlo and select EQ Series commercial pumps.
  • Stops air leaks a flattened or cracked lid o-ring is the usual reason a pump pulls air and loses prime at the strainer.
  • Quick swap lift the lid, pull the old ring out of its groove, seat the new one and close the lid back down.
  • Lube it first a thin film of silicone based o-ring lubricant keeps the ring pliable and helps it seal.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Lid O-Ring, 5-3/4" ID, 350013Z, SKU PAC-101-3148. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S
Pentair

3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S

$78199
Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9
Aladdin

Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9

$3499
Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509
Pentair

Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

$1399
Pentair Challenger Front Housing, Slip Suction, Black, 355468Z
Pentair

Challenger Front Housing, Slip Suction, Black, 355468Z

$13999
Subtotal

Similar products

Other products people compare with this one.

Pentair 355330 Challenger strainer pot flange o-ring, 2-3/8 inch ID Pentair Challenger Strainer Pot Flange O-Ring$799 Pentair 350336Z diffuser o-ring for WhisperFlo XF and IntelliFlo XF pumps Pentair WhisperFlo XF / IntelliFlo XF Diffuser O-Ring #2-336, 350336Z$799 Pentair 355227Z WhisperFlo WFE diffuser o-ring Pentair WhisperFlo WFE Diffuser O-Ring, 355227Z$699 Pentair 071652Z impeller set screw, 1/4-20 x 1 in. left hand thread Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z$599 Pentair 075713 rubber impeller washer gasket for WhisperFlo and IntelliFlo pumps Pentair Rubber Impeller Washer Gasket, 075713$599 Pentair 355334 hex washer head diffuser screw for Challenger and SuperFlo pumps Pentair Hex Head Screw for Diffuser, 355334$799 Pentair 357102 molded seal plate gasket in almond for WhisperFlo pumps Pentair Molded Seal Plate Gasket for WhisperFlo, 357102$699 Pentair 70429 hex head bolt for IntelliFlo and WhisperFlo pumps Pentair Hex Head Bolt for IntelliFlo VS3050/WhisperFlo, 70429$599 Pentair 074629 flat washer gasket for a pool pump drain plug Pentair Flat Washer Gasket WSHR/WFE/DRN, 074629$499 Pentair 356189Z lid o-ring for IntelliFlo3 pool pump Pentair Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z$2599

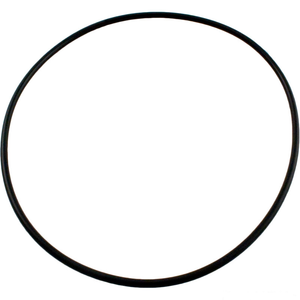

Pentair 400006 WhisperFlo XF lid and locking ring assembly Pentair WhisperFlo XF Lid and Locking Ring, 400006$5799 Pentair 355331Z Waterfall and Challenger pump diffuser o-ring Pentair Waterfall/Challenger Pump Diffuser O-Ring, 355331Z$1099 Pentair 356173Z seal plate o-ring for the 3HP IntelliFlo3 pool pump Pentair Seal Plate O-Ring for 3HP IntelliFlo3 Pool Pump, 356173Z$1299 Pentair 071422 cover o-ring, 5-3/4 inch inside diameter, for Purex Triton and WhisperFlo pumps Pentair Cover O-Ring 5-3/4" ID, 071422$1299 Pentair 356148Z seal plate o-ring for the IntelliFlo3 VSF 1.5 HP pump Pentair Seal Plate O-Ring for IntelliFlo3 VSF 1.5 HP Pump, 356148Z$1299 Pentair 351446 WhisperFlo XF seal plate o-ring Pentair WhisperFlo XF Seal Plate O-Ring, 351446$1599 Pentair 355030 square profile high flow diffuser o-ring Pentair Genuine OEM High Flow Diffuser O-Ring, 355030$1799 Pentair 355329Z square front housing o-ring for Challenger pool pumps Pentair Challenger Front Housing O-Ring, 355329Z$2299 Pentair PacFab Challenger Front Housing O-Ring 355329Z | 355329 Pentair PacFab Challenger Front Housing O-Ring 355329Z | 355329$3099 Pentair 357151Z clear WhisperFlo pump lid, cam and ramp style Pentair Lid, Clear, WhisperFlo Newer Cam/Ramp Style, 357151Z$3999

Product details

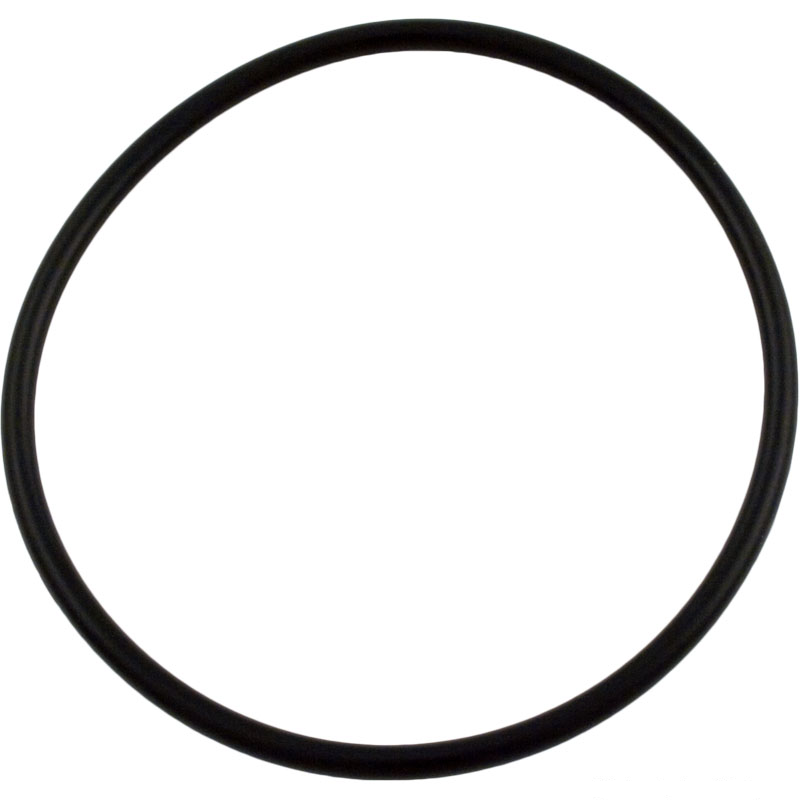

The Pentair 350013Z is the strainer lid o-ring for the Challenger, the newer style WhisperFlo, the IntelliFlo and select EQ Series commercial pumps. It measures 5-3/4 in. across the inside with a 1/4 in. cord, and it is the genuine Pentair part rather than a generic ring cut to a nearby size.

Why it matters

The lid o-ring is the only thing keeping air out at the top of the strainer pot. When it hardens, flattens or splits, the pump pulls air past the lid, the basket fills with bubbles and the pump loses prime or runs noisy. It is one of the cheapest parts on the pad and one of the most common causes of a pump that will not hold water.

Replacing it

Turn the pump off, open the lid, lift the old ring out of its groove and clean the groove. Coat the new ring lightly with a silicone based o-ring lubricant, seat it evenly and close the lid. If the pump still draws air afterward, look at the suction side unions and the drain plugs next.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

3 Key 3 on the Pentair IntelliFlo PumpFits every model in the drawing.See it on the diagramAll Pentair IntelliFlo Pump Parts 75 parts and the drawing3 Key 3 on the Pentair WhisperFlo PumpFits every model in the drawing.See it on the diagramAll Pentair WhisperFlo Pump Parts 73 parts and the drawing27 Key 27 on the Pentair Challenger PumpFor the High Flow 1/2F, 3/4A (High Flow 1/2F, 3/4A), High Flow 3/4F, 1A (High Flow 3/4F, 1A), High Flow 1F, 1-1/2A (High Flow 1F, 1-1/2A), High Flow 1-1/2F, 2A (High Flow 1-1/2F, 2A), High Flow 2F, 2-1/2A (High Flow 2F, 2-1/2A), High Pressure 1/2F, 3/4A (High Pressure 1/2F, 3/4A), High Pressure 3/4F, 1A (High Pressure 3/4F, 1A), High Pressure 1F, 1-1/2A (High Pressure 1F, 1-1/2A), High Pressure 1-1/2F, 2A (High Pressure 1-1/2F, 2A), High Pressure 2F, 2-1/2A (High Pressure 2F, 2-1/2A), High Pressure 3F (High Pressure 3F).See it on the diagramAll Pentair Challenger Pump Parts 48 parts and the drawing
Specifications
Brand Pentair
Manufacturer part number 350013Z
UPC 788379657710
Type Pump strainer lid o-ring
Inside diameter 5-3/4 in.
Cord thickness 1/4 in.
Fits Pentair Challenger, WhisperFlo (new style), IntelliFlo, select EQ Series pumps
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which Pentair pumps use this o-ring?
The Challenger, the newer style WhisperFlo, the IntelliFlo and select EQ Series commercial pumps. Measure your old ring if you are unsure: it should be about 5-3/4 in. across the inside with a 1/4 in. thick cord.
Does it fit the older WhisperFlo lid?
It is listed for the new style WhisperFlo lid. If your WhisperFlo has the older lid design, check the inside diameter and cord thickness against 5-3/4 in. and 1/4 in. before ordering.
My pump is losing prime. Is this the fix?
Often. When the strainer lid o-ring hardens, flattens or cracks, air gets pulled in at the lid and the pump struggles to hold prime. If you see bubbles in the strainer pot with the lid tight, this ring is the first thing to replace.
Should I lubricate it?
Yes. A light coat of a silicone based o-ring lubricant helps the ring seat, keeps it from pinching and makes the lid easier to open next time. Do not use petroleum based grease.
Ask your own question
