Pentair 071652Z impeller set screw, 1/4-20 x 1 in. left hand threadPentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z In stock$599

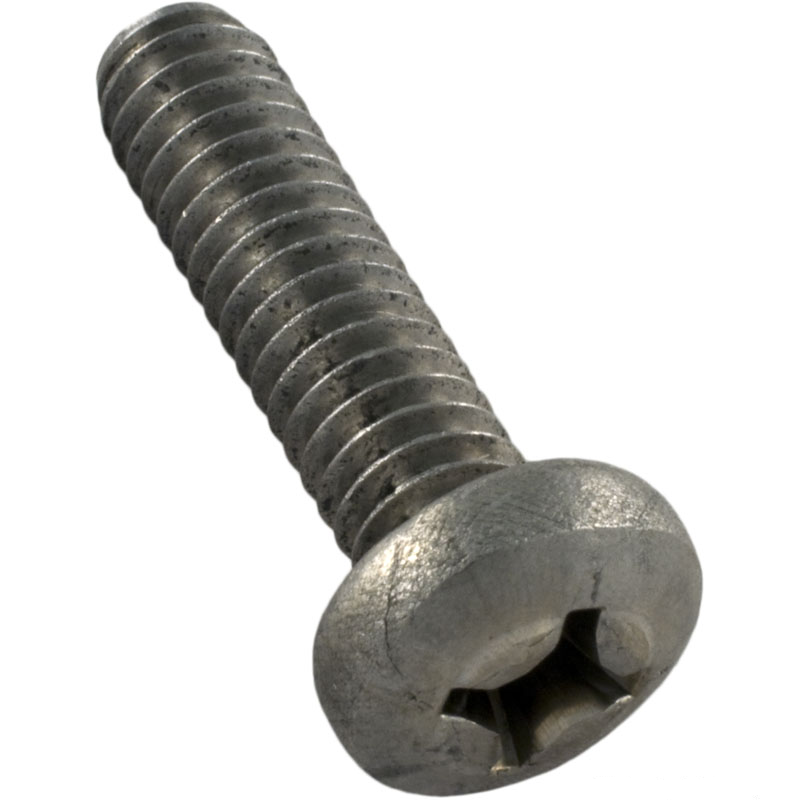

Pentair 071652Z impeller set screw, 1/4-20 x 1 in. left hand thread
Shop all Pentair

Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z

Ask a questionMPN 071652Z
$599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Left hand thread It loosens clockwise. Turning it the usual way only tightens it against the impeller.
  • Size 1/4-20 thread, 1 in. long, Phillips head.
  • Holds the impeller The set screw is what locks the impeller to the motor shaft.
  • Fits several Pentair pumps Used on select pumps including IntelliFlo VS 3050 and VF, and WhisperFlo WF and WFE models.
  • Genuine Pentair Factory part 071652Z.
  • Cheap insurance The head strips easily on an old screw, so fit a new one whenever the impeller comes off.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z, SKU PUR-101-6175. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z
Pentair

Screw 1/4-20 x 1 Left Hand Thread, 071652Z

$599
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S
Pentair

3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S

$78199
Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9
Aladdin

Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9

$3499
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872
Pentair

IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872

$3499
Subtotal

Similar products

Other products people compare with this one.

Pentair 075713 rubber impeller washer gasket for WhisperFlo and IntelliFlo pumps Pentair Rubber Impeller Washer Gasket, 075713$599 Pentair 350336Z diffuser o-ring for WhisperFlo XF and IntelliFlo XF pumps Pentair WhisperFlo XF / IntelliFlo XF Diffuser O-Ring #2-336, 350336Z$799 Pentair 355227Z WhisperFlo WFE diffuser o-ring Pentair WhisperFlo WFE Diffuser O-Ring, 355227Z$699 Pentair 357102 molded seal plate gasket in almond for WhisperFlo pumps Pentair Molded Seal Plate Gasket for WhisperFlo, 357102$699 Pentair 70429 hex head bolt for IntelliFlo and WhisperFlo pumps Pentair Hex Head Bolt for IntelliFlo VS3050/WhisperFlo, 70429$599 Pentair 074629 flat washer gasket for a pool pump drain plug Pentair Flat Washer Gasket WSHR/WFE/DRN, 074629$499 Pentair 071660Z set screw, 4-40 by 1-1/8 inch, for WhisperFlo and IntelliFlo pumps Pentair Set Screw 4-40 1-1/8" (Each), 071660Z$999 Pentair 353323 WhisperFlo XF diffuser screw Pentair WhisperFlo XF Diffuser Screw, 353323$1199 Pentair Intelliflo-Whisperflo Seal Plate Bolt | Two Required | 070431 Pentair Intelliflo-Whisperflo Seal Plate Bolt | Two Required | 070431$999 SuperPro B-199 generic replacement pump basket for Pentair Whisperflo and IntelliFlo pumps SuperPro Generic Pentair Whisperflo, IntelliFlo Pump Basket, B-199$1099
Pentair 070430 hex cap bolt, 3/8-16 by 1-1/4 inch stainless steel pump hardware Pentair Hex Bolt, 070430$1099 Pentair 357100Z black seal plate gasket for IntelliFlo and WhisperFlo pumps Pentair Black Seal Plate Gasket, 357100Z$1099 Pentair 356173Z seal plate o-ring for the 3HP IntelliFlo3 pool pump Pentair Seal Plate O-Ring for 3HP IntelliFlo3 Pool Pump, 356173Z$1399 Pentair 071422 cover o-ring, 5-3/4 inch inside diameter, for Purex Triton and WhisperFlo pumps Pentair Cover O-Ring 5-3/4" ID, 071422$1299 Pentair 356148Z seal plate o-ring for the IntelliFlo3 VSF 1.5 HP pump Pentair Seal Plate O-Ring for IntelliFlo3 VSF 1.5 HP Pump, 356148Z$1399 Pentair Whisperflo Intelliflo Hex Head Brass NIckel Plated Nut | 2 required | 071403 Pentair Whisperflo Intelliflo Hex Head Brass NIckel Plated Nut | 2 required | 071403$1399 Pentair 072184 stainless steel washer, 3/8 in. by 13/16 in. Pentair Washer 3/8"x13/16", 072184$1416 Pentair 351446 WhisperFlo XF seal plate o-ring Pentair WhisperFlo XF Seal Plate O-Ring, 351446$1599 Pentair 410016Z Whisperflo XF 2-1/2 inch diamond seal kit Pentair Whisperflo XF 2.5" Diamond Seal Kit, 410016Z$1799 Pentair 070387Z WhisperFlo and IntelliFlo pump strainer basket Pentair OEM Replacement WhisperFlo Pump Basket, 070387Z$2299

Product details

The Pentair 071652Z is the impeller set screw used on select Pentair pool pumps. It is 1/4-20 by 1 in. with a Phillips head and, importantly, a left hand thread.

The left hand thread

This screw loosens clockwise. Pump impellers spin in a direction that would back a normal screw out, so the thread is reversed to keep it tight. Anyone who does not know that ends up cranking the screw harder into the impeller and rounding out the head.

What it holds

The set screw locks the impeller onto the motor shaft. If it works loose the impeller can spin on the shaft and the pump loses flow, so it is worth fitting a fresh screw whenever the impeller comes off rather than reusing a worn one.

Fitment

It is used across a number of Pentair pumps, including IntelliFlo VS 3050 and VF models and WhisperFlo WF and WFE models.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

29 Key 29 on the Pentair IntelliFlo PumpFits every model in the drawing.See it on the diagramAll Pentair IntelliFlo Pump Parts 75 parts and the drawing14 Key 14 on the Pentair WhisperFlo PumpFits every model in the drawing.See it on the diagramAll Pentair WhisperFlo Pump Parts 73 parts and the drawing
Specifications
Brand Pentair
Manufacturer part number 071652Z
Alternate part number 071652
Type Impeller set screw
UPC 788379699529
Thread 1/4-20, left hand
Length 1 in.
Head Phillips
Part type Pool pump part
Fits Select Pentair pool pumps, including IntelliFlo VS 3050 and VF, and WhisperFlo WF and WFE models
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which way do I turn it?
Clockwise to loosen. It is a left hand thread, so turning it counterclockwise, the usual loosening direction, tightens it instead.
What size is it?
1/4-20 thread, 1 in. long, with a Phillips head.
Which pumps use it?
Select Pentair pumps, including the IntelliFlo VS 3050 and VF models and the WhisperFlo WF and WFE models. Check your parts breakdown if you are unsure.
Why does the old one strip?
Years of pool water and the reversed thread make it easy to cam out a Phillips head. Use a well fitting driver, and replace the screw rather than reusing a chewed one.
