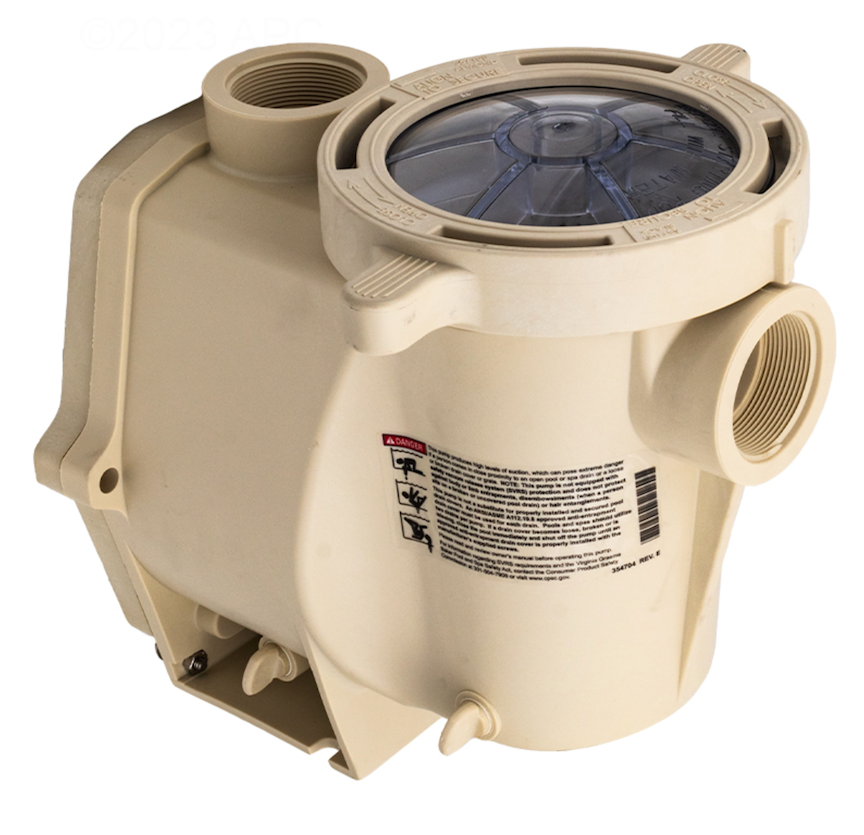

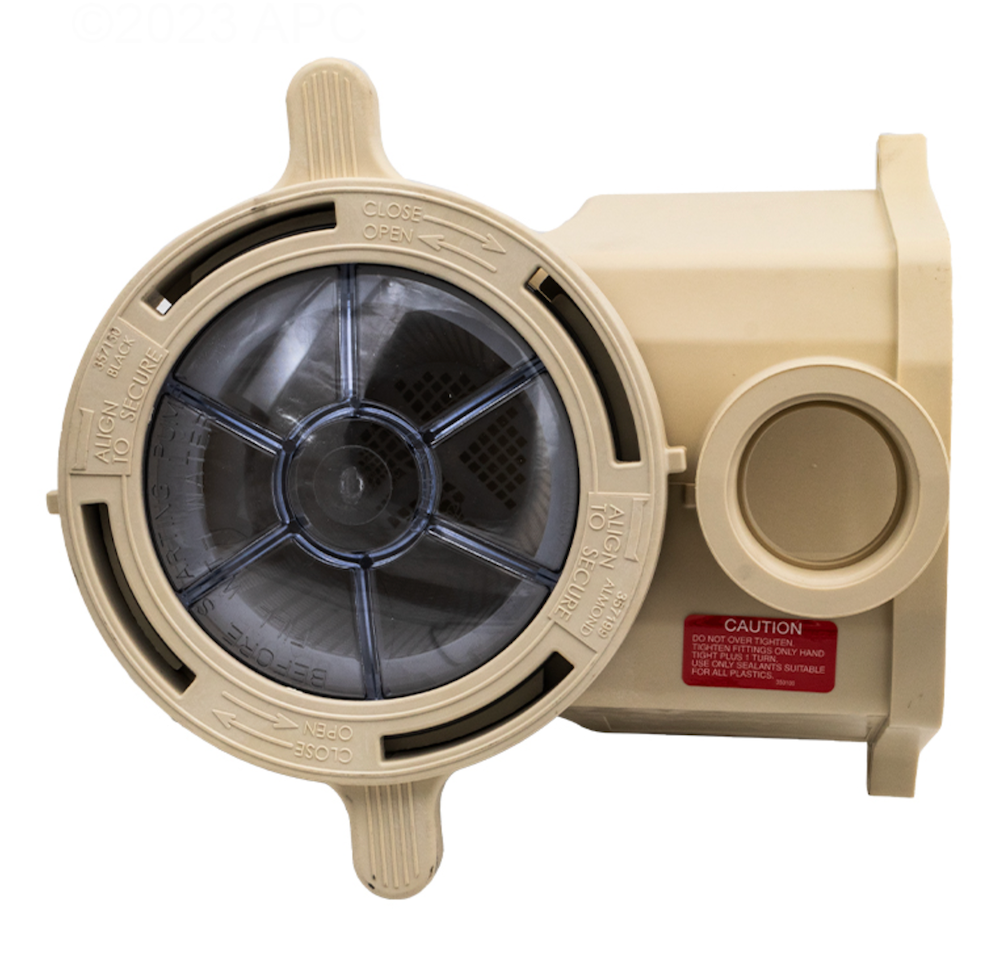

Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front viewPentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149 In stock$29699
Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view
Shop all Pentair

Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

Ask a questionMPN 357149
$29699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Whole wet end in one box pump housing 350015, seal plate kit 350201, lid 357151 and lock ring 357199, plus the basket and small parts.
  • Fits WhisperFlo and IntelliFlo WhisperFlo, WFE, IntelliFlo VS, IntelliFlo VF, IntelliFlo VS-SVRS and IntelliFlo i1 pumps.
  • Mechanical shaft seal included it comes in the seal plate kit, so the rebuild needs no separate seal order.
  • Fresh o-rings and gaskets two lid o-rings 350013 and two drain plug gaskets 092115.
  • New basket strainer basket 070387 replaces a cracked or brittle basket at the same time.
  • Genuine Pentair OEM part numbers throughout, so every piece matches the pump.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149, SKU PAC-101-1465. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$29699
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3899
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S
Pentair

3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S

$78199
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872
Pentair

IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872

$3199
Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z
Pentair

Screw 1/4-20 x 1 Left Hand Thread, 071652Z

$899
Pentair Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z
Pentair

Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z

$2699
Subtotal

Similar products

Other products people compare with this one.

Pentair 357157 black volute replacement housing for WhisperFlo WFE pump and pot Pentair Black Volute Replacement Housing for WhisperFlo WFE Pump and Pot, 357157$23199 Pentair 357527Z IntelliFlo keypad cover kit, almond Pentair IntelliFlo Keypad Cover Kit, Almond, 357527Z$33699 Pentair 350202 IntelliFlo seal plate with mechanical shaft seal and gasket installed Pentair IntelliFlo Seal Plate with Mechanical Shaft Seal and Gasket, 350202$17899 Pentair 356159Z IntelliFlo3 VSF universal touchscreen add on kit, front view Pentair IntelliFlo3 VSF Universal Touchscreen Add On Kit, 356159Z$23499 Pentair 356175Z strainer pot kit in almond for the 3 HP IntelliFlo3 pool pump Pentair Strainer Pot Kit for 3 HP IntelliFlo3 Pool Pump, Almond, 356175Z$26699 Pentair 400002Z XF Series seal plate for the WhisperFlo XF pump Pentair XF Series Seal Plate for WhisperFlo XF Pump, 400002Z$17999 Pentair 350015Z WhisperFlo WFE volute casing and strainer pot in almond Pentair Volute Casing WFE, Almond, 350015Z$22099 Pentair 400100 almond keypad cover assembly kit for IntelliFloXF Pentair Almond Keypad Cover Assembly Kit for IntelliFloXF, 400100$22499 Pentair 356174Z strainer pot kit for IntelliFlo3 VSF 1.5 HP pump Pentair Strainer Pot Kit for IntelliFlo3 VSF 1.5 HP Pump, 356174Z$26199 Pentair 350199 ozone and salt resistant seal plate kit in almond for WhisperFlo and IntelliFlo pumps Pentair Seal Plate Kit, Ozone/Salt Resistant, Almond, 350199$20799
Pentair 400000Z WhisperFlo XF wet end assembly Pentair WhisperFlo XF Wet End Assembly, 400000Z$28099 Pentair 356346Z black strainer pot kit for IntelliFlo3 VSF 1.5 HP pumps Pentair Black Strainer Pot Kit for IntelliFlo3 VSF 1.5 HP Pumps, 356346Z$20199 Pentair 356214Z drive cover assembly in almond for IntelliFlo3 pool pump Pentair Drive Cover Assembly in Almond for IntelliFlo3 Pool Pump, 356214Z$25499 Pentair 073131Z 3 hp impeller for WhisperFlo WFE-12 and IntelliFlo pumps Pentair Impeller for IntelliFlo and WhisperFlo 3 HP WFE-12, 073131Z$9399 Pentair 357199Z almond Cam and Ramp strainer lid clamp for WhisperFlo and IntelliFlo pumps Pentair Cam and Ramp Strainer Lid Clamp, Almond, for WhisperFlo and IntelliFlo Pumps, 357199Z$5299 Pentair 071734S seal kit for WFE and IntelliFlo pool pumps Pentair Seal Kit for WFE and IntelliFlo Pumps, 071734S$3699 Pentair 410020 Whisperflo XF union kit without tap Pentair Whisperflo XF Union Kit, 410020$14099 Pentair 073130Z impeller for 2 and 2.5 HP WhisperFlo pool pumps Pentair WhisperFlo Impeller, 2 and 2.5 HP (WF-8 & 30, WFDS-8 & 30, WFE-30, WFK-8), 073130Z$9799 Pentair 073127Z WhisperFlo impeller for .75 and 1 HP pumps Pentair WhisperFlo Impeller .75 and 1 HP (WF-3 & 24, WFE-24), 073127Z$9799 Pentair 356904Z keypad relocation kit for IntelliFlo variable speed pumps, almond Pentair Keypad Relocation Kit for IntelliFlo Variable Speed Pump, Almond, 356904Z$7899

Product details

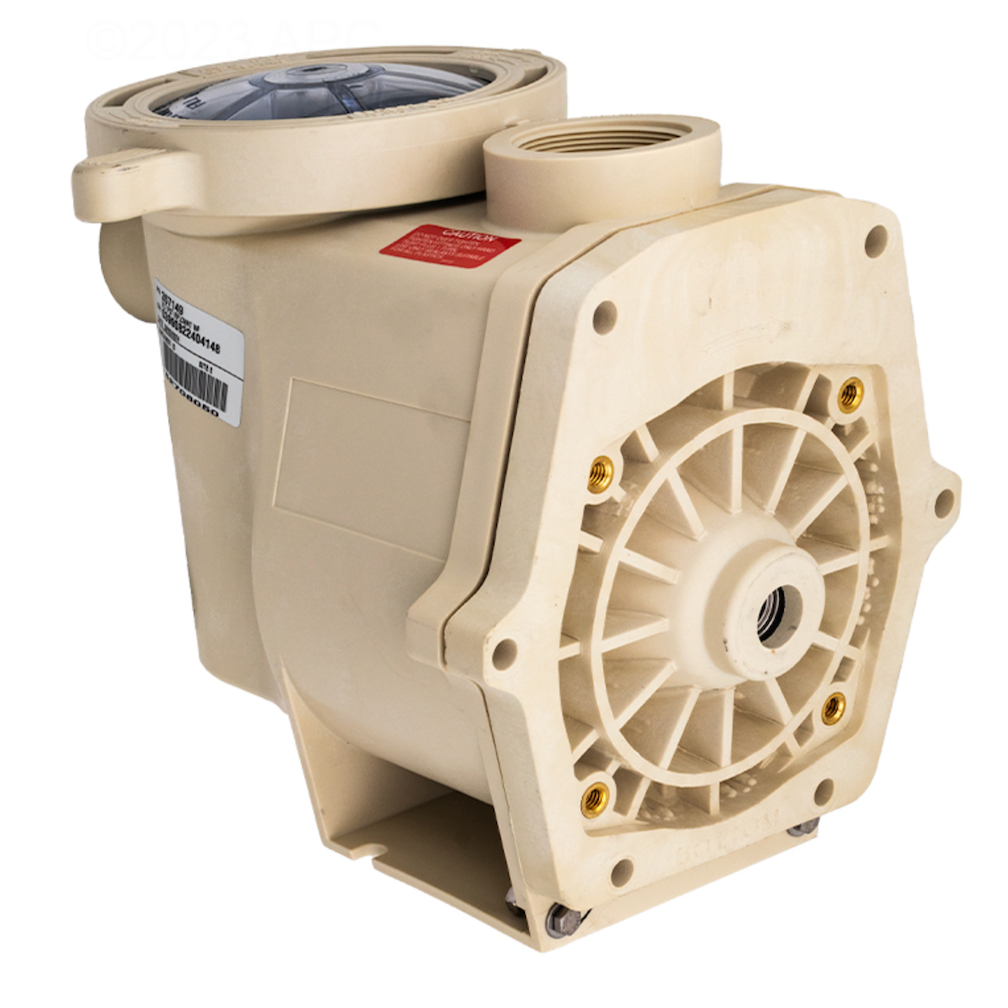

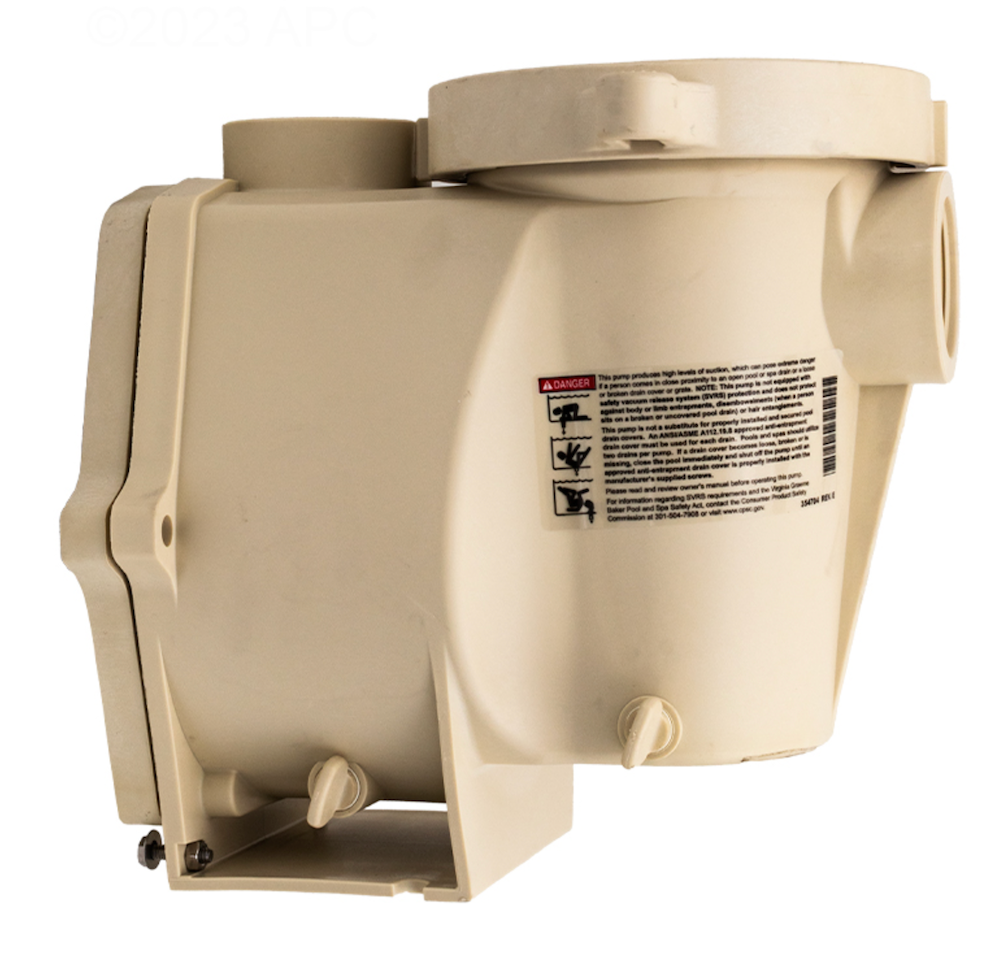

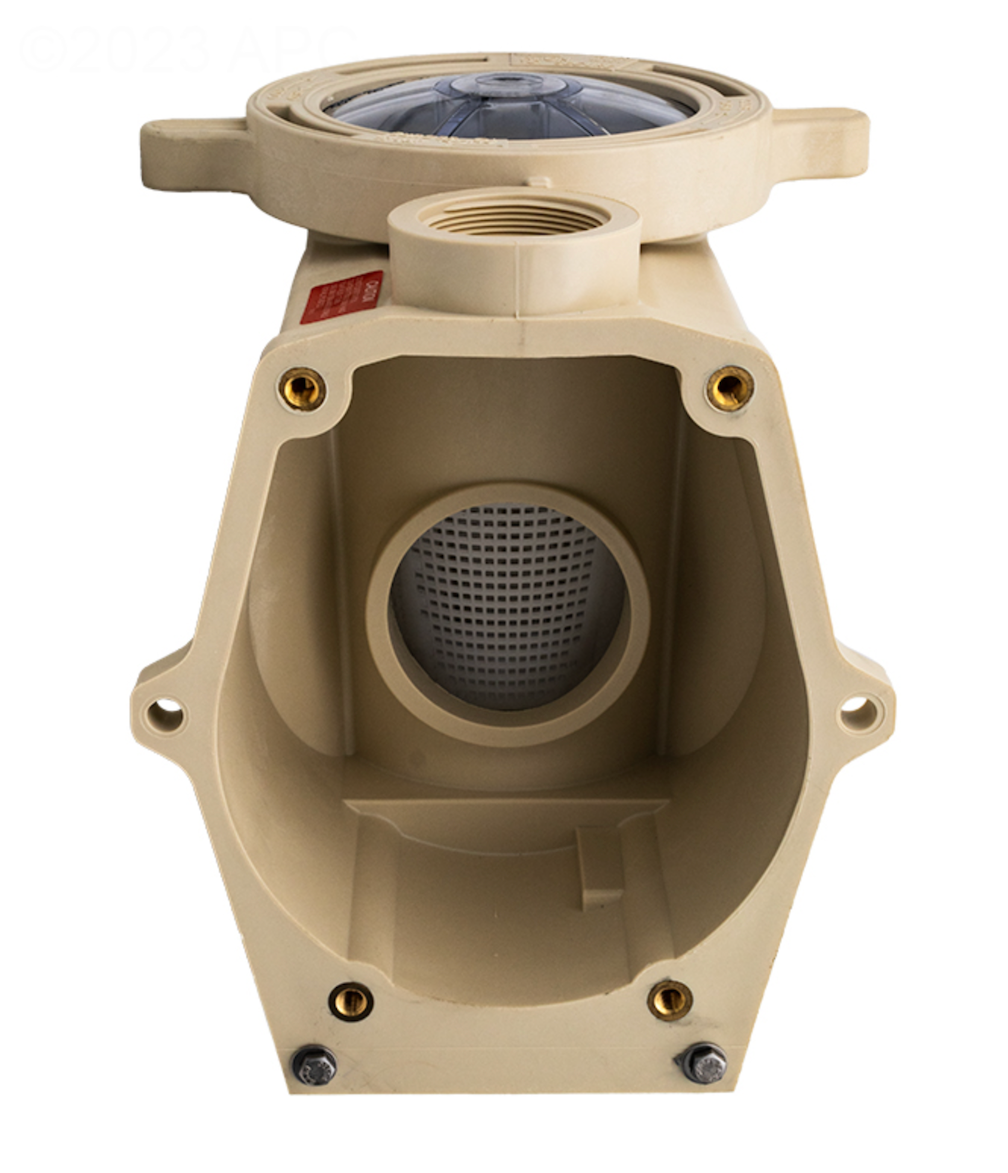

Pentair 357149 replaces the entire housing side of a WhisperFlo or IntelliFlo pump in one order. It covers the WhisperFlo and WFE pump and pot, and the IntelliFlo VS, VF, VS-SVRS and i1 pumps, which all share this wet end.

What is in the kit

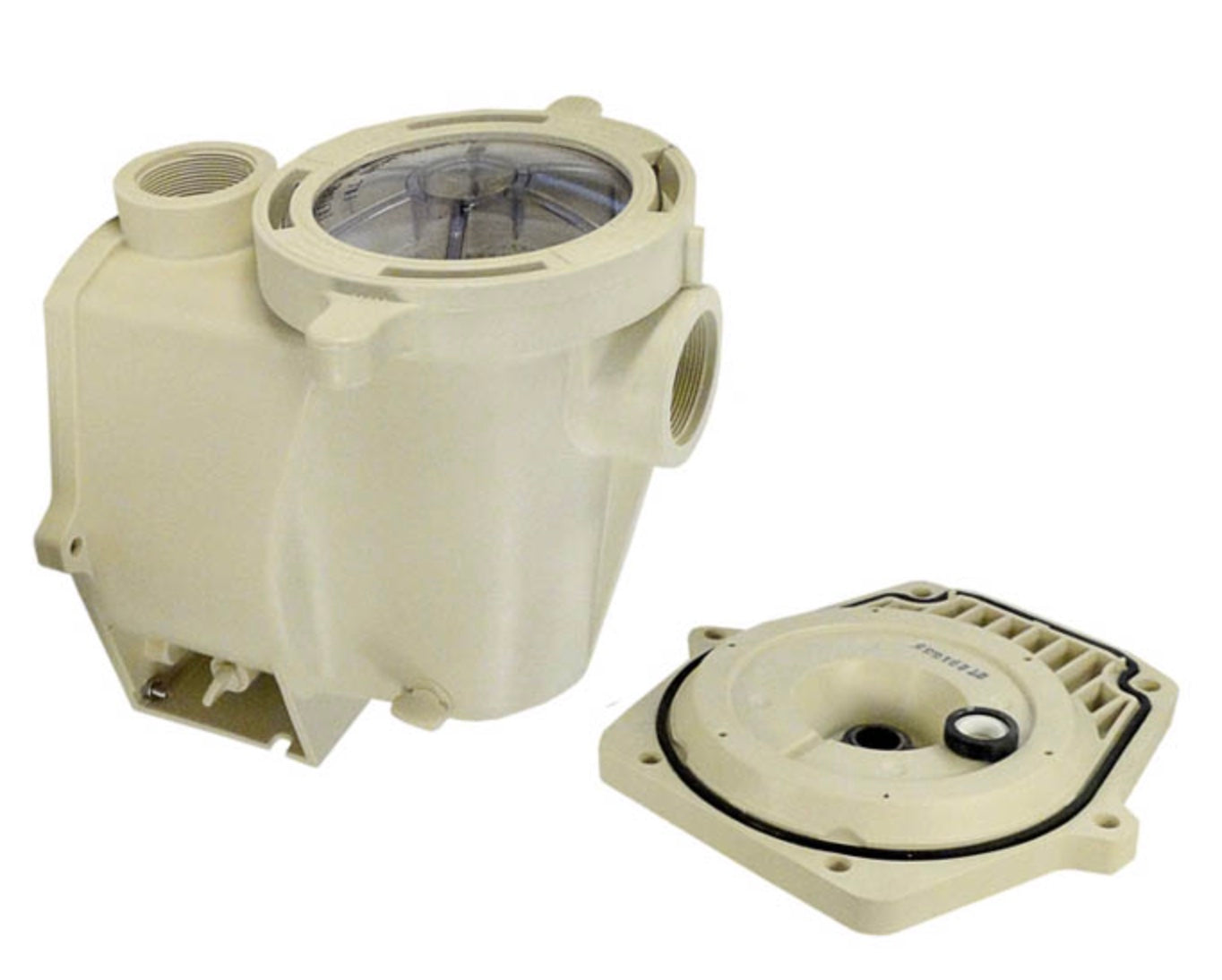

Pump housing 350015, seal plate kit 350201 with the mechanical shaft seal, lid 357151, the clamp, cam and ramp lock ring 357199, basket 070387, drain plug 071131, two drain plug gaskets 092115 and two lid o-rings 350013. Everything that seals is new, which is what makes a housing rebuild hold pressure the first time.

When to use it

Reach for the full kit when the volute is cracked, when the drain plug threads have given up, or when the seal plate, lid and lock ring are all showing their age at once. The impeller and motor are not part of the kit; they bolt back on to the new seal plate. If a single component has failed, the part numbers above can be ordered individually instead.

Specifications
Brand Pentair
Manufacturer part number 357149
UPC 788379659691
Part type Pool pump part
Fits Pentair WhisperFlo, WFE, IntelliFlo VS, IntelliFlo VF, IntelliFlo VS-SVRS, IntelliFlo i1
Pump housing 350015
Seal plate kit 350201
Lid 357151
Lock ring (clamp, cam and ramp) 357199
Basket 070387
Drain plug 071131
Drain plug gasket 092115, qty 2
Lid o-ring 350013, qty 2
Shipping weight 14.54 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3999

Questions and answers

What people ask about this product, answered by our pool techs.

Does the kit include the impeller and motor?
No. It is the housing side of the pump: the volute, seal plate with mechanical shaft seal, lid, lock ring, basket, drain plug and o-rings. The impeller and motor are reused or ordered separately.
Which pumps does it fit?
Pentair WhisperFlo and WFE pumps, and IntelliFlo VS, VF, VS-SVRS and i1 pumps.
Is the shaft seal in the kit?
Yes. The seal plate kit 350201 includes the mechanical shaft seal.
When is the full kit the right call rather than one part?
When the housing is cracked, the drain plug threads are stripped, or the seal plate is worn along with the lid and lock ring. If only one piece has failed, each item in the kit has its own Pentair part number and can be bought on its own.
