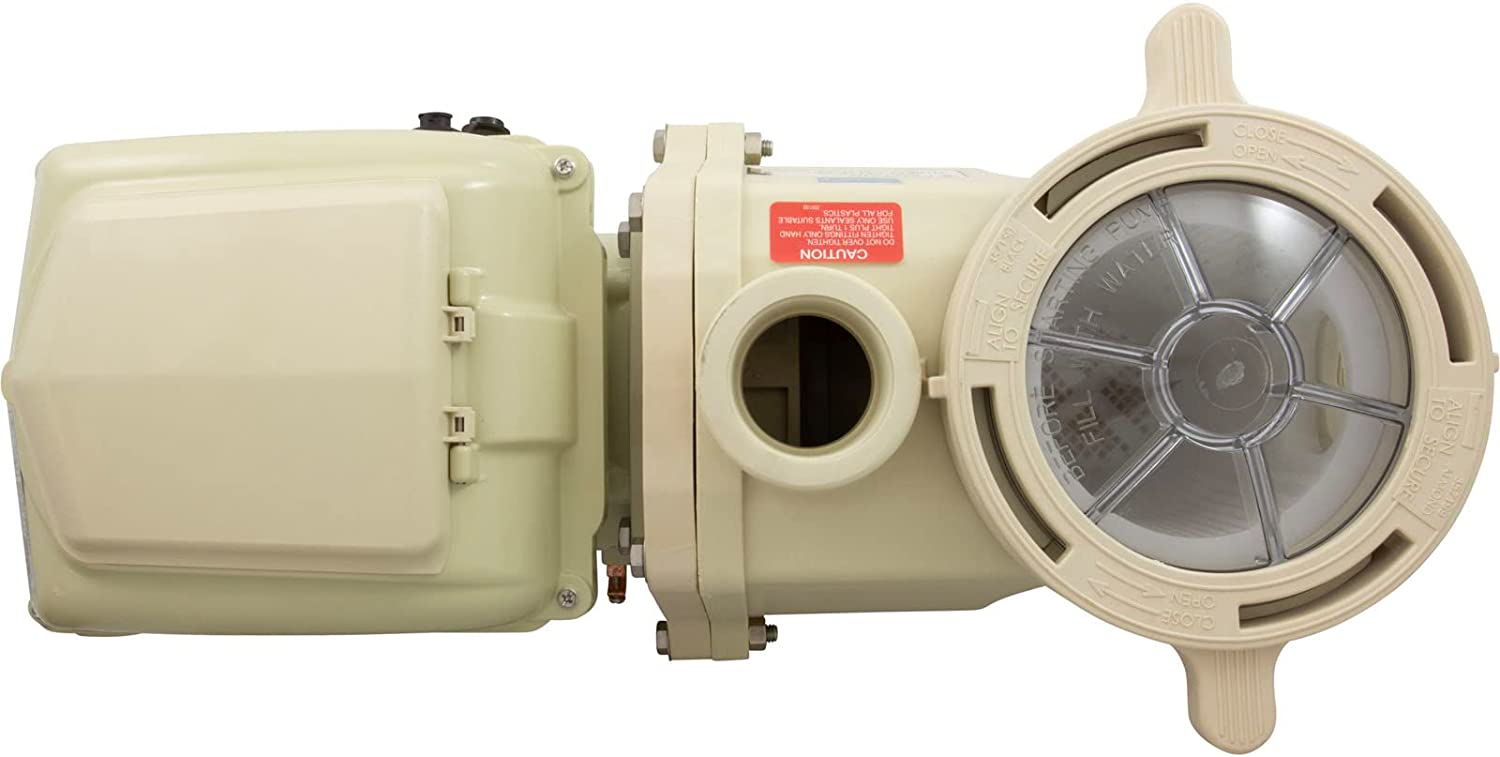

Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top viewPentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533 In stock$1,79900
Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view
Shop all Pentair

Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

Ask a questionMPN EC-011533
$1,79900 $2,059.00 13% OFF
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Variable speed program any speed from 450 to 3,450 RPM and run low for circulation, high for cleaning or water features.
  • 2.6 total horsepower more power than the SuperFlo VST for larger pools and longer plumbing runs.
  • Drop-in for WhisperFlo same footprint and plumbing as the single speed WhisperFlo it replaces.
  • Either voltage wires to 115V or 208-230V.
  • TEFC permanent magnet motor totally enclosed, fan cooled, and up to 90% more efficient than an induction motor.
  • Energy Star certified meets the EPA efficiency standard, and often qualifies for utility rebates.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533, SKU PUR-10-420. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533
Pentair

WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,79900
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair Rubber Impeller Washer Gasket, 075713
Pentair

Rubber Impeller Washer Gasket, 075713

$599
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,21699 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,21199 Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV$1,09900 Pentair 011533 WhisperFlo VST 2.6 THP variable speed pool pump Pentair WhisperFlo VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, TradeGrade, 011533$1,76699 Pentair 011066 IntelliFlo3 VSF 1.5HP variable speed and flow pool pump Pentair IntelliFlo3 VSF Variable Speed and Flow Pool Pump with Relay Board, 1.5HP 115/208-230V, 011066$1,42199
AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Waterway PD-270 Power Defender 2.7 HP 230V variable speed pool pump Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270$1,46299 Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,29299 Hayward W3SP2303VSP MaxFlo VS 1.65 HP 230V variable speed pool pump Hayward MaxFlo VS 1.65 HP 230V Variable Speed Pool Pump, W3SP2303VSP$1,74900 Web Price Hayward W3VSP23420 MaxFlo VS 420 variable speed pump with Omnix control Hayward MaxFlo VS 420 Variable Speed Pump with Omnix, W3VSP23420$1,79900 Web Price Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001$1,28799 Pentair 022017 WhisperFloXF 2 HP high performance pool pump Pentair 022017 WhisperFloXF High Performance Pump 2 HP 208-230/460V$1,71399 Hayward W3SP3206VSP TriStar VS 950 2.7 HP variable speed pool pump, front view Hayward TriStar VS 950 Variable Speed Pool Pump, 2.7 HP 115V-230V, W3SP3206VSP$2,69900 Web Price Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

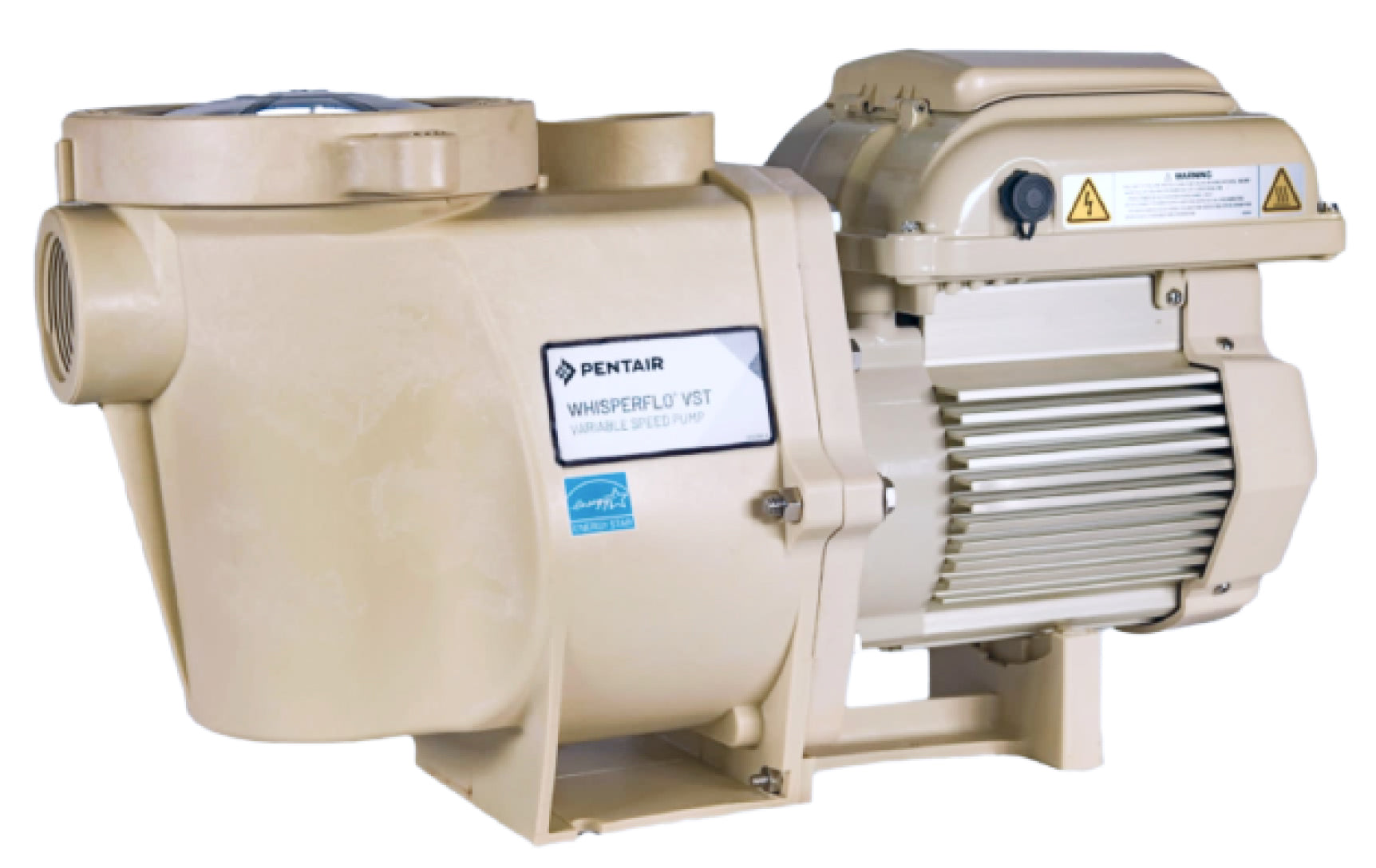

The Pentair WhisperFlo VST, which Pentair's guide covers with the WhisperFlo VS, is the variable speed version of the WhisperFlo, the pump that has been on inground pads for decades. Model EC-011533 carries a 2.6 total horsepower permanent magnet motor, wires to 115V or 208-230V, and is a drop-in for an existing WhisperFlo, so a single speed pump can come out and this one can go in on the same unions.

Why variable speed

The motor runs anywhere from 450 to 3,450 RPM. Daily circulation and filtration can happen at low speed, where a pump draws a small fraction of its full-speed power, with higher speeds reserved for vacuuming, backwashing, heating or driving water features. The permanent magnet motor is up to 90% more efficient than a conventional induction motor, and the pump is Energy Star certified, which is the usual condition for utility rebates.

Built for the pad

The motor is totally enclosed and fan cooled (TEFC), which keeps rain, insects and debris out of the windings. The housing is corrosion resistant thermoplastic, and the large strainer basket holds more debris between cleanings. Running at lower speeds also makes the pump much quieter than a single speed unit, a point in its favor near a bedroom window or a neighbor.

Sizing

At 2.6 THP this pump sits above the SuperFlo VST. It is the right choice for larger pools, pool and spa combinations, and pads with long plumbing runs or in-floor cleaning systems. It works with most automation systems, or can be programmed from its own control panel.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Parts for this pump

Pentair's parts lists give it the pump end parts of the WF-8. Its motor can differ.

Pentair WhisperFlo Pump parts diagram28 numbered parts, with the ones for the WF-8 already picked.Open the diagram

Bought most for this pump

Specifications
Brand Pentair
Manufacturer part number EC-011533
Model WhisperFlo VST
UPC 788379888817
Dealer part number 011533, the number Pentair sells the WhisperFlo VST under through dealers
Type Variable speed pool pump, self priming
Speed Variable, 450 to 3,450 RPM; three programmable speeds plus Quick Clean
Total horsepower 2.6 THP
Service factor 1.0
Weighted energy factor (WEF) 8.4, by Pentair and DOE's certification record
Voltage 115 or 208 to 230 V, 50 or 60 Hz, with no special wiring or switching
Phase Single phase
Full load amps 13.9 A at 115 V, 11.1 to 10.1 A at 208 to 230 V
Port size 2 in x 2 in NPT
Flow at 50 ft of head About 127 GPM at 3,450 RPM on 230 V, read from the performance curve in Pentair's guide

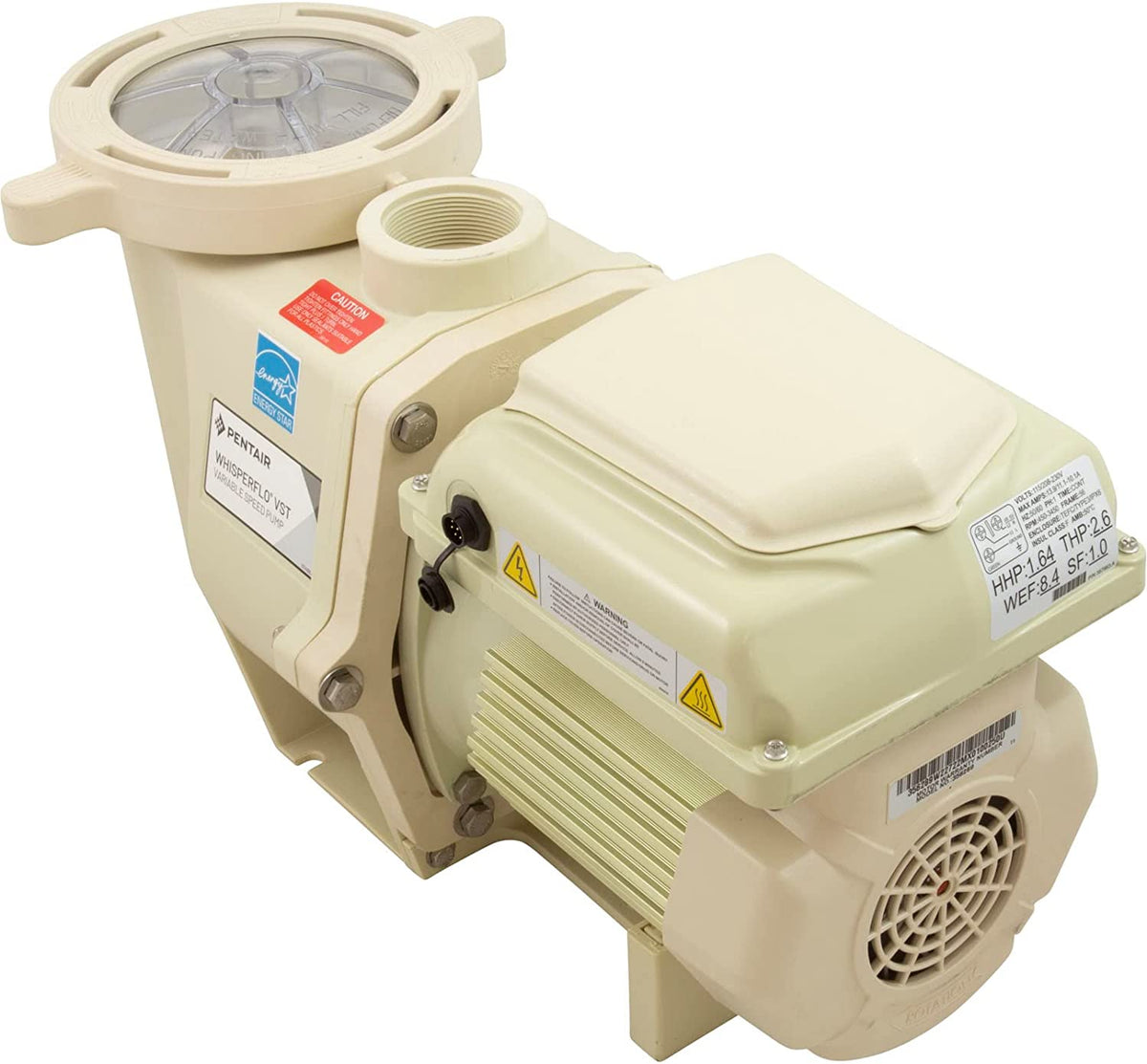

Motor Permanent magnet, totally enclosed fan cooled (TEFC), 56 square flange
Certifications UL, NSF/ANSI 50, ENERGY STAR, by Pentair
Sized for Pools that would take up to a 2 HP pump, by Pentair
Dimensions 12.8 in high at the motor, by Pentair's drawing, which gives no overall length
Weight 45 lb, by Pentair
Warranty 1 year, parts only, by Pentair for e-commerce (EC) models and online purchases
Housing Corrosion resistant thermoplastic
Replaces Existing Pentair WhisperFlo pumps, drop-in
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199 Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900
Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3899

Questions and answers

What people ask about this product, answered by our pool techs.

Is EC-011533 the WhisperFlo VS or the WhisperFlo VST?
Pentair's own page for EC-011533 names it the WhisperFlo VST Variable Speed Pool Pump, at 2.6 total horsepower and a weighted energy factor of 8.4. Pentair's installation guide covers the WhisperFlo VS and the WhisperFlo VST together, so both names appear in its documents.
Will the WhisperFlo VST run on 115 volts?
Yes. Pentair rates it for single phase power from 115 to 230 V, at 50 or 60 Hz, with no special wiring or switching. It draws 13.9 full load amps at 115 V and 11.1 to 10.1 A at 208 to 230 V. Full speed moves less water on 115 V than on 230 V, by Pentair's curve.
Will the WhisperFlo VST fit where my old WhisperFlo was?
Pentair says it drops in where an existing Pentair WhisperFlo was, with 2 inch by 2 inch NPT ports and 2 inch plumbing. Its drawing puts it at 12.8 inches high at the motor end. Check the circuit too: it runs on 115 V or 208 to 230 V, single phase.
How long is Pentair's warranty on the WhisperFlo VST EC-011533?
One year, parts only, from the date of purchase. That is Pentair's warranty for its e-commerce (EC) models and for products bought online, with no labor coverage. Pentair's standard terms, which add labor, are for equipment bought from a pool store, builder or service company and professionally installed.
