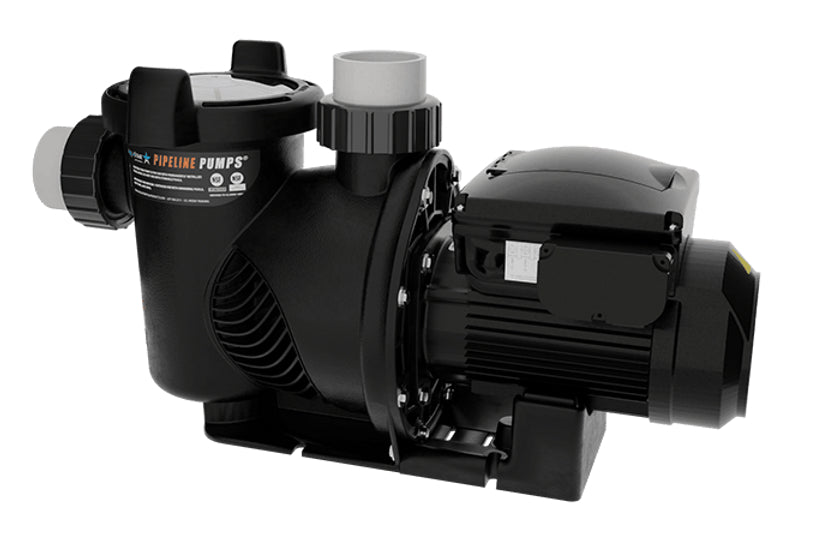

AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control In stock$138103
30 day returns · Easy, with prepaid labels provided
Quick overview
- Variable speed 3 HP Runs anywhere from 800 to 3400 RPM, with four programmable speeds and built in run time scheduling.
- WiFi control The free AquaStar PipeLine Connect app sets speeds and schedules from a phone.
- RS485 automation port Paired with the PLCM100 communication module, sold separately, it talks to Pentair and Jandy automation.
- Permanent magnet motor A high efficiency permanent magnet drive runs cooler than a standard induction motor.
- TEFC on a 56 square flange Totally enclosed fan cooled construction with a vibration dampening rubber insert to cut noise.
- Protection built in Programmable freeze protection, no flow protection, and over voltage, under voltage, over current and overheating warnings on the display.
Similar products
Other products people compare with this one.
Product details
The AquaStar PipeLine PLP300S is a 3 HP variable speed pool pump with WiFi control built in. It runs from 800 to 3400 RPM, holds four programmable speeds, and schedules its own run times.
The motor
It uses a high efficiency permanent magnet drive rather than a standard induction motor, which runs at lower temperatures and draws less for the same flow. The motor is totally enclosed fan cooled for outdoor life, sits on a 56 square flange, and carries a vibration dampening rubber insert to keep noise down at the pad.
Control and automation
Two paths are available. WiFi puts speed and schedule control in the free AquaStar PipeLine Connect app on a phone. The RS485 port handles wired automation: pair the pump with the AquaStar PLCM100 communication module, which is sold separately, and it communicates with Pentair and Jandy systems.
Protection
The pump has programmable freeze protection that circulates water once the temperature reaches a set point, and no flow protection to guard against running dry. The control panel displays over voltage, under voltage, over current, overheating and no water flow warnings. Priming settings are programmable, so the prime routine can be tuned to the pool.
In the box
The complete pump, two 2 in. union nuts, the strainer lid with pump basket, and the motor drive unit with display.
| Brand | AquaStar |
|---|---|
| Manufacturer part number | PLP300S |
| UPC | 883612101613 |
| Series | PipeLine |
| Horsepower | 3 HP |
| Speed | Variable |
| Speed range | 800 to 3400 RPM |
| Programmable speeds | Four |
| Motor | Permanent Magnet Motor (PMM) drive system |
| Motor enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Flange | 56 square flange |
| Noise control | Vibration dampening rubber insert |
| Communication | RS485 communication port |
| Automation | Pentair and Jandy systems using Communication Module PLCM100, available separately |
| App | AquaStar PipeLine Connect |
| Protection | Programmable freeze protection, no flow protection, over voltage, under voltage, over current and overheating warnings |
| Included | Complete pool pump, two 2" union nuts, strainer lid with pump basket, motor drive unit with display |
| Ships | Parcel |
