AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kitAquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101 In stock$6999
AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit
Shop all AquaStar

AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101

Ask a questionMPN A10RCFR101
$6999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • No sump required Rated for single or multiple drain use without a sump, following the installation instructions.
  • 170 GPM Single sumpless, floor or wall: 170 GPM at 1.7 fps, through a 31.5 square inch opening.
  • Retrofit or new construction The universal adapter frame retrofits existing frames and sumps up to 10 inches round, and a mud frame version covers new construction.
  • VGB button on the face A trademarked compliance button lets anyone standing on the deck identify VGB 2008 compliance.
  • Standards tested Cover, adapter plate, frame and screws meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a, with ASTM G154 UV exposure testing.
  • Stainless hardware Supplied with 316 stainless steel screws, in UV resistant engineered polymer.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101, SKU API-25-3101. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101
AquaStar

10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101

$6999
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5999
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2499
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$36099
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19199
Subtotal

Similar products

Other products people compare with this one.

AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3699 Paramount SDX2 main drain grate for concrete pools, white, part 004-192-2231-01 Paramount SDX2 Main Drain Grate for Concrete Pools, White, 004-192-2231-01$5899 Hayward WG1030AVBLKPAK2 black round drain cover with frame for dual suction flow drain Hayward Round Cover with Frame for Dual Suction Flow Drain, 8 Inch Diameter, Black, WG1030AVBLKPAK2$5299 Pentair 500103 StarGuard 8 inch white main drain cover with short ring Pentair 8" StarGuard Main Drain Cover with Short Ring, White, 500103$4999 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899 Pentair StarGuard 500140 8 inch white main drain cover with long ring, 2 pack Pentair 8" StarGuard Main Drain Cover with Long Ring, White, 2 Pack, 500140$8399 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3799 Hayward 9 by 9 inch high flow replacement drain cover with inner frame Hayward 9" x 9" High Flow Replacement Cover and Inner Frame, WGX1031BHF2$7399 Waterway 640-2130 V 10 in. Ultra-Retro drain suction outlet in white Waterway 10" Ultra-Retro Drain Suction Outlet, 640-2130 V$5999 Paramount 005-252-2087-01 retro VGB SDX hi-flow drain cover, white Paramount Retro VGB SDX Hi-Flow Drain Cover, White, 005-252-2087-01$5599
Hayward Paramount SDX2 white retro safety drain for concrete pools Hayward SDX2 Retro Safety Drain for Concrete Pools, White, 004192221301$6299 Hayward WG1054AVPAK2 8 inch dual suction outlet main drains with sump and grate, set of 2 Hayward Main Drain Assembly with Sump and Grate, 2" Threaded (Set of 2), WG1054AVPAK2$9199 AquaStar 10AVR101 10 inch white round anti-entrapment suction outlet cover AquaStar 10" White Round Anti-Entrapment Suction Outlet Cover, 10AVR101$4099 AquaStar 10AVR103 10 inch round light gray anti-entrapment suction outlet cover AquaStar 10" Light Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR103$3699 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3699 Waterway 640-2750 V complete main drain for vinyl liner pools with cover and sump Waterway Main Drain for Vinyl Liner Pools, 640-2750 V$3899 CMP 25520-000-000 white main drain sump with 2 inch by 1.5 inch FIP porting CMP 2 in x 1.5 in FIP White Main Drain Sump, Bottom Port, 25520-000-000$4199 AquaStar 12MF101 12 inch square MoFlow suction outlet cover and mud frame in white AquaStar 12" Square MoFlow Suction Outlet Cover and Mud Frame, White, 12MF101$9099 AquaStar 9MF101 MoFlow 9 inch square white suction outlet cover with mud frame AquaStar 9" Square MoFlow Suction Outlet Cover and Mud Frame, White, 9MF101$6399 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7699

Product details

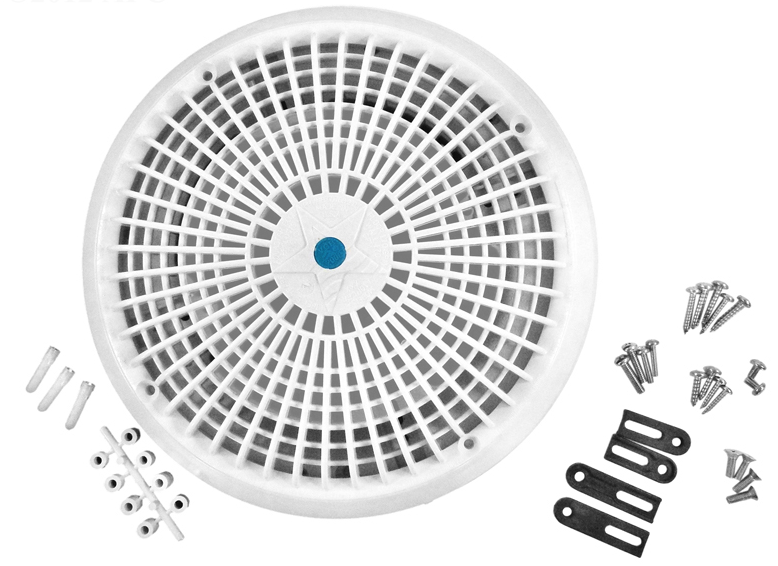

The AquaStar A10RCFR101 is a 10 inch round sumpless suction outlet cover in white, supplied with the universal adapter kit. It is rated for single or multiple drain use, at 170 GPM at 1.7 fps for a single sumpless floor or wall installation through a 31.5 square inch opening.

Sumpless, and why that helps

Most retrofit trouble comes from what is already in the ground. A sumpless cover removes the need to match the old sump, and the universal adapter frame is built to sit over existing frames and sumps up to 10 inches round. For odd sized or non-structured frames, AquaStar lists a brass anchor kit under part number BIK4. A mud frame version of the cover is offered for new construction.

Compliance you can see

The face carries a trademarked compliance button, which means anyone on the deck can identify VGB 2008 compliance without pulling records. The cover, adapter plate, frame and screws all meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a, and the polymer has been through ASTM G154 UV exposure testing.

Materials and service life

The body is a UV resistant engineered polymer with 316 stainless steel screws, which is the combination that survives sun and sanitizer. AquaStar states that drain covers should be replaced every five years from the date of installation, so note the install date somewhere you will find it again.

Specifications
Brand AquaStar
Manufacturer part number A10RCFR101
UPC 637509121518
Type Round sumpless suction outlet cover
Size 10 inch
Color White
Material UV-resistant engineered polymer
Flow rating Single sumpless, floor or wall: 170 GPM at 1.7 fps
Open area 31.5 square inch opening
Screws #316 stainless steel
Standards ANSI/APSP 16-2011, NSF/ANSI 50-2009a, ASTM G154 UV testing
Compliance Virginia Graeme-Baker Pool and Spa Safety Act
Includes 10 inch universal adapter frame, 10 inch round suction outlet drain
Adapter fits Existing frames and sumps up to 10 inch round
Replacement interval Every five years from the date of installation
Shipping weight 3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

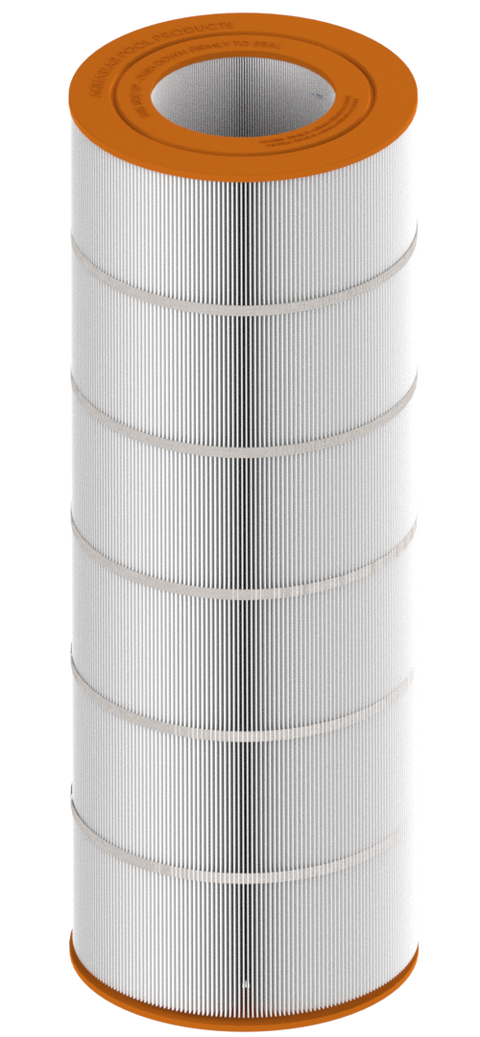

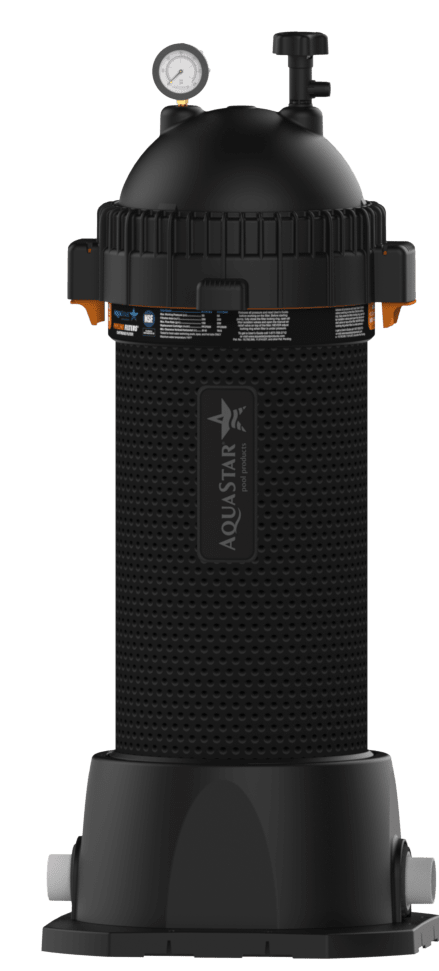

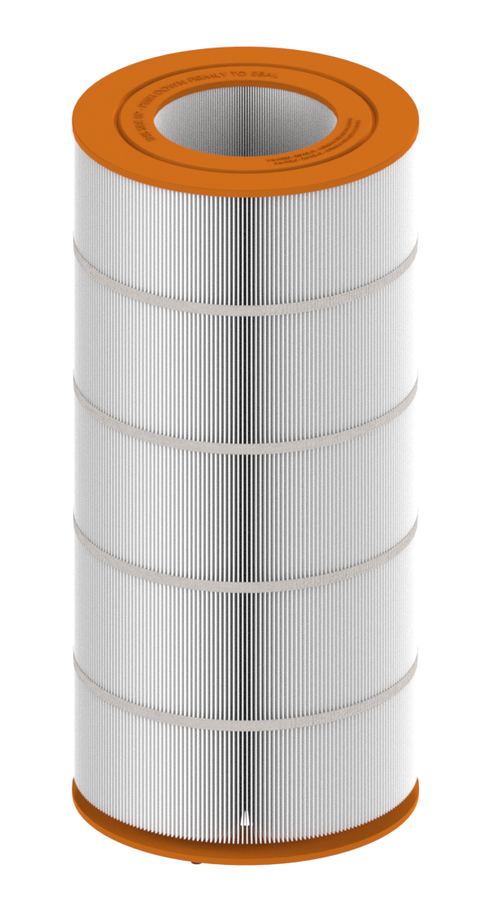

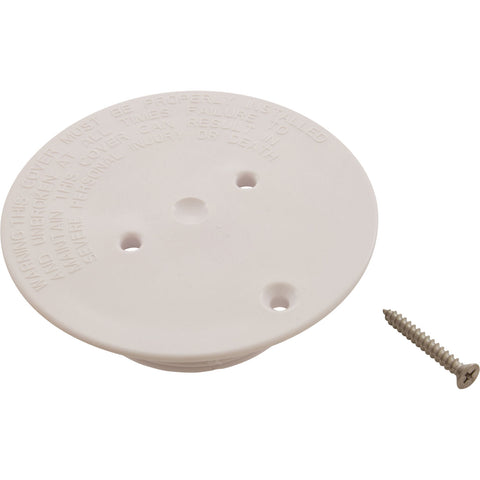

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,06499 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1699 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$18399 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$16699 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14999 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2399 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3699 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$3099 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$9099 AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399
AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$54499 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$2499 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$20499 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7699 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$13599 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle$1999 AquaStar GV22 22 inch Gyro-Vac Flex vacuum head AquaStar 22" Gyro-Vac Flex Vacuum Head, GV22$29699 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3699 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3799 AquaStar PipeLine PLF27000 cartridge filter for pools up to 27,000 gallons AquaStar PipeLine Cartridge Filter for Pools up to 27,000 Gallons, PLF27000$93000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Do I need a sump behind this cover?
No. It is listed as sumpless for single or multiple drain use. Follow the AquaStar installation instructions, which set out the conditions for a sumpless install.
Will it fit my existing drain?
The universal adapter frame is made to retrofit existing frames and sumps up to 10 inches round, which covers most of what is already in the ground. For odd sized or non-structured frames and sumps, AquaStar lists a brass anchor kit, part BIK4.
How do I know it is VGB compliant?
The cover carries a trademarked compliance button on its face so VGB 2008 compliance can be identified from the pool or spa deck. All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a.
How often does a drain cover have to be replaced?
AquaStar states every five years from the date of installation. Cover life is a safety item rather than a wear item, so the date matters even if the cover still looks sound.
