Waterway 640-2130 V 10 in. Ultra-Retro drain suction outlet in whiteWaterway 10" Ultra-Retro Drain Suction Outlet, 640-2130 V In stock$5799
Waterway 640-2130 V 10 in. Ultra-Retro drain suction outlet in white
Shop all Waterway

Waterway 10" Ultra-Retro Drain Suction Outlet, 640-2130 V

Ask a questionMPN 640-2130 V
$5799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 10 in. round frame Sized to a 10 in. round outlet, so measure the frame you are replacing.
  • 20 sq. in. total open area The open area of the cover face.
  • Floor rated at 178 GPM Floor installation rating on 2 in. and 3 in. plumbing.
  • Wall rated at 132 GPM Wall installation rating on 2 in. and 3 in. plumbing.
  • 95 GPM at 1.5 ft per second The rating quoted at that water velocity.
  • White Supplied in white.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway 10" Ultra-Retro Drain Suction Outlet, 640-2130 V, SKU WWP-25-8028. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway 10" Ultra-Retro Drain Suction Outlet, 640-2130 V
Waterway

10" Ultra-Retro Drain Suction Outlet, 640-2130 V

$5799
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1899
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$35699
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Hayward WGX1048E 8 inch anti-vortex main drain cover in white Hayward 8" Anti-Vortex Main Drain Cover, White, WGX1048E$3299 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6399 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3499 Paramount SDX2 main drain grate for concrete pools, white, part 004-192-2231-01 Paramount SDX2 Main Drain Grate for Concrete Pools, White, 004-192-2231-01$6099 Hayward WG1030AVBLKPAK2 black round drain cover with frame for dual suction flow drain Hayward Round Cover with Frame for Dual Suction Flow Drain, 8 Inch Diameter, Black, WG1030AVBLKPAK2$5299 Pentair 500103 StarGuard 8 inch white main drain cover with short ring Pentair 8" StarGuard Main Drain Cover with Short Ring, White, 500103$5199 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699 Pentair StarGuard 500140 8 inch white main drain cover with long ring, 2 pack Pentair 8" StarGuard Main Drain Cover with Long Ring, White, 2 Pack, 500140$8199 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499 Hayward 9 by 9 inch high flow replacement drain cover with inner frame Hayward 9" x 9" High Flow Replacement Cover and Inner Frame, WGX1031BHF2$7199
Paramount 005-252-2087-01 retro VGB SDX hi-flow drain cover, white Paramount Retro VGB SDX Hi-Flow Drain Cover, White, 005-252-2087-01$5399 Hayward Paramount SDX2 white retro safety drain for concrete pools Hayward SDX2 Retro Safety Drain for Concrete Pools, White, 004192221301$6299 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$3099 AquaStar 10AVR101 10 inch white round anti-entrapment suction outlet cover AquaStar 10" White Round Anti-Entrapment Suction Outlet Cover, 10AVR101$3999 AquaStar 10AVR103 10 inch round light gray anti-entrapment suction outlet cover AquaStar 10" Light Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR103$3599 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3499 Waterway 640-2750 V complete main drain for vinyl liner pools with cover and sump Waterway Main Drain for Vinyl Liner Pools, 640-2750 V$3699 AquaStar A8R104 8 inch Star anti-entrapment cover with riser ring and mud frame, blue AquaStar 8" Star Anti-Entrapment Cover with Solid Riser Ring and Mud Frame, VGB Series, Blue, A8R104$3199 CMP 25520-000-000 white main drain sump with 2 inch by 1.5 inch FIP porting CMP 2 in x 1.5 in FIP White Main Drain Sump, Bottom Port, 25520-000-000$4299 AquaStar 12MF101 12 inch square MoFlow suction outlet cover and mud frame in white AquaStar 12" Square MoFlow Suction Outlet Cover and Mud Frame, White, 12MF101$7799

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

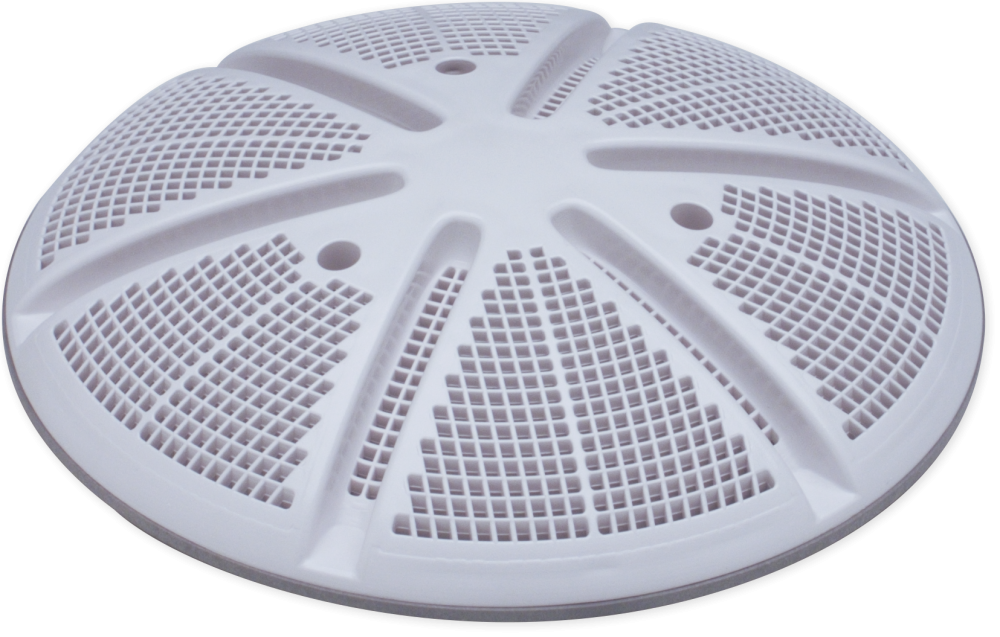

The Waterway 640-2130 V is the 10 in. round Ultra-Retro drain suction outlet in white. It carries 20 sq. in. of total open area.

Flow ratings

Waterway rates the outlet at 178 GPM in a floor installation and 132 GPM in a wall installation, both on 2 in. and 3 in. plumbing, and at 95 GPM when the figure is taken at a water velocity of 1.5 ft per second. Those numbers are what you check the pump against: the outlet has to pass what the pump pulls without exceeding its rating.

Before you order

Suction outlet covers are sized to the frame and sump underneath them, so confirm your opening is the 10 in. round size. Note the difference between the floor and wall ratings as well, since the same cover is rated differently depending on where it sits.

Specifications
Brand Waterway
Manufacturer part number 640-2130 V
UPC 806105396501
Type Drain suction outlet
Color White
Frame size 10" Round
Total open area 20 sq. in.
Floor flow rate 178 GPM, 2" & 3" plumbing
Wall flow rate 132 GPM, 2" & 3" plumbing
Flow rate at 1.5 ft/sec 95 GPM
Shipping weight 2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What size opening does this fit?
The frame is 10 in. round. Measure the outlet you are replacing before ordering, since drain frames are sized to the sump.
Which flow rating applies to my pool?
Use the floor figure of 178 GPM for a floor outlet and the wall figure of 132 GPM for a wall outlet. Both are quoted on 2 in. and 3 in. plumbing.
What does total open area mean?
It is the amount of open face the water can pass through, 20 sq. in. on this cover. Open area is what keeps water velocity across the cover low.
What is the 95 GPM figure?
That is the flow at a water velocity of 1.5 ft per second, a second way of stating what the cover will pass.
