Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, whiteWaterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 In stock$16299

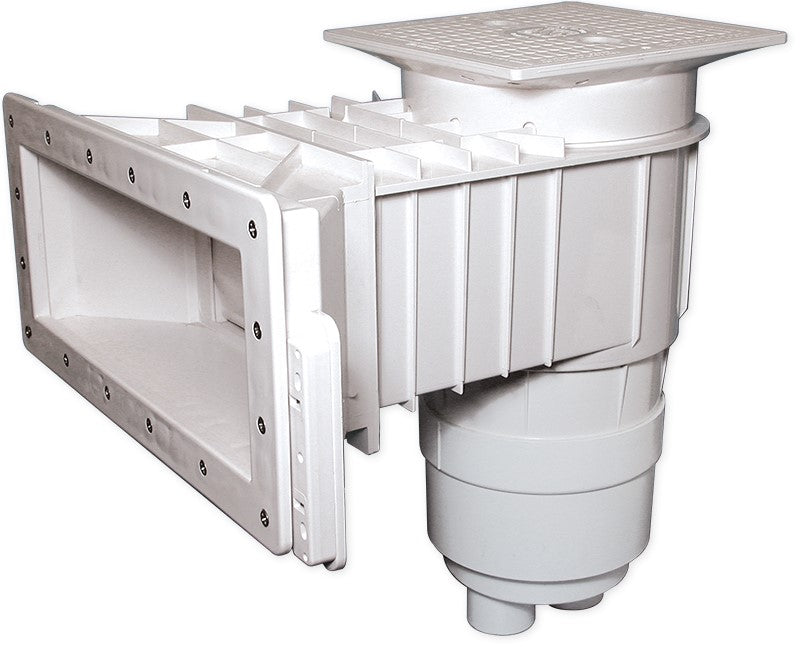

Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white
Shop all Waterway

Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500

Ask a questionMPN 540-8500
$16299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete skimmer The lock-down vacuum plate and the extension collar are both included.
  • Wide mouth, 9 in. throat The wide mouth Renegade body with a 9 in. throat, two ports and a square lid, in white.
  • High flow Waterway rates the Renegade at 75 GPM.
  • Built for liner pools Designed to work with existing vinyl liner steel, polymer and fiberglass pool walls.
  • Spring loaded weir door The weir door is spring loaded, which makes fitting and replacing it quick.
  • Sockets sized up for flow The 2 in. socket takes a 2-1/2 in. spigot and the 1-1/2 in. socket takes a 2 in. spigot, with a 1/2 in. socket for the overflow hose.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500, SKU WWP-25-1686. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500
Waterway

Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500

$16299
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Hayward SP1084 complete skimmer for vinyl and fiberglass pools with white square lid Hayward Complete Skimmer Vinyl/Fiberglass 2" FPT, Square Lid, White, SP1084$19799 Hayward SP10841OM outside mount skimmer for vinyl and fiberglass pools, square lid, white Hayward Complete Skimmer for Vinyl and Fiberglass Pools, 1.5" FPT, Square Lid, Outside Mount, White, SP10841OM$19599 Hayward SP10841R complete Auto-Skim wall skimmer, 1.5 in. FPT, round lid, white Hayward Complete Skimmer, 1.5" FPT, Round Lid, White, SP10841R$20599 Hayward SP1099S complete front access skimmer in white Hayward Complete Front Access Skimmer, White, SP1099S$9799 Waterway 540-8550 Renegade wide-mouth vinyl liner in-ground skimmer in white Waterway Renegade 2" Socket White Wide-Mouth Vinyl Liner In-Ground Skimmer, 540-8550$16099 Hayward SP10852 Auto-Skim Wide Track complete skimmer, 1.5 in. FPT, square lid, white Hayward Complete Skimmer Wide Track, 1.5 in. FPT, Square Lid, 9 1/4 in. Throat Length, White, SP10852$22699 Hayward SP10852OMDGR Auto-Skim wide track outside mount skimmer in dark grey, front view Hayward 1-1/2" FPT Dark Grey Auto-Skim Skimmer, Wide Track, Outside Mount, SP10852OMDGR$21299 Hayward SkimMaster SP1072S2BLK 2 inch SKT black gunite pool skimmer Hayward 2" SKT Gunite SkimMaster Skimmer, Black, SP1072S2BLK$14399 Baker Hydro 50W1006 deluxe vinyl liner in ground pool skimmer Baker Hydro Deluxe Vinyl Liner In Ground Skimmer, 50W1006$18999 Hayward SkimMaster SP1072T2 2 inch FPT gunite pool skimmer Hayward SkimMaster SP1072T2 2" FPT Gunite Skimmer$12699
Pentair 84120200 Admiral S15 white ABS skimmer with circular weir and 2 inch threaded port Pentair 2" Admiral S15 Skimmer with Circular Weir, Threaded Port, White, 84120200$19599 Waterway 540-8400 Renegade white vinyl liner pool skimmer with square lid Waterway Renegade Vinyl Liner Skimmer, White, 2-Port with Square Lid, 540-8400$16499 Baker Hydro deluxe gunite in-ground pool skimmer, Waterco 50W1051 Waterco Baker Hydro Deluxe Gunite In-Ground Pool Skimmer, 50W1051$17199 Hayward SP1084DGR Auto-Skim automatic pool skimmer with square cover in dark gray Hayward 2" FIP Automatic Pool Skimmer with Square Cover, Dark Gray, SP1084DGR$22899 Pentair 08650-4404 U-3 white gunite skimmer with lid and frame Pentair Gunite Skimmer U-3, White, 2 inch Slip, 08650-4404$15099 Pentair Bermuda 506300 white PVC gunite pool skimmer with 2 in. slip port Pentair Bermuda Skimmer for Gunite Pools, 2 in. Slip, White, 506300$20099 Hayward SP1082 Auto Skim Series pool skimmer with square white deck cover Hayward Auto Skim Series Skimmer 2-Inch, White, SP1082$15399 Waterway 540-6417 complete grey Renegade skimmer for concrete pools Waterway Complete Concrete Skimmer, Grey, 2", 540-6417$11499 Pentair 506361 Bermuda skimmer, white ABS with 2 inch slip port Pentair 2" Bermuda Skimmer Slip Port ABS, White, 506361$16999 Pentair 506365 Bermuda in ground pool skimmer with 2 inch slip port, black ABS Pentair 2" Bermuda Skimmer Slip Port, ABS, Black, 506365$21999

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

The Waterway 540-8500 is the complete Renegade skimmer in the wide mouth body with a 9 in. throat, finished in white. It is a two port skimmer with a square lid, and it ships with a lock-down vacuum plate and an extension collar.

Built for liner pools

The Renegade is made for vinyl liner installations and works with existing steel, polymer and fiberglass pool walls. Waterway rates it at 75 GPM, and the plumbing is sized generously to get there: the 2 in. socket takes a 2-1/2 in. spigot for more flow, the 1-1/2 in. socket takes a 2 in. spigot to make the plumbing easier, and there is a 1/2 in. socket for an overflow hose. All of them are PVC sockets, which glue up cleanly.

Basket and weir

The basket is one of the largest offered on a skimmer and it twist locks into place, so it will not float up when the pump shuts off and it still lifts straight out for emptying. The weir door is spring loaded, which is what makes it quick to fit and quick to swap when it eventually wears.

Options

A float valve and a skimmer test kit are available separately if the installation calls for them.

Specifications
Brand Waterway
Manufacturer part number 540-8500
UPC 806105099228
Type Vinyl liner in-ground skimmer
Model Renegade
Mouth and throat Wide mouth, 9 in. throat
Color White
Ports 2 port
Lid Square
Suction socket 2 in. socket, 2-1/2 in. spigot
Second socket 1-1/2 in. socket, 2 in. spigot
Overflow 1/2 in. socket for overflow hose
Flow rate 75 GPM
Basket Large locking skimmer basket, twist locks to prevent floating
Weir door Spring loaded
Included Lock-down vacuum plate, extension collar
Options Float valve, skimmer test kit
Shipping weight 13.18 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699 Waterway 400-9230 pump union, 2 inch nut with 1-1/2 inch slip or 2 inch spigot Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230$799

Questions and answers

What people ask about this product, answered by our pool techs.

Will this work with my vinyl liner pool?
Yes. The Renegade is made for vinyl liner installations and works with existing steel, polymer and fiberglass pool walls.
What comes in the box?
The skimmer with a lock-down vacuum plate and an extension collar. A float valve and a skimmer test kit are offered separately as options.
What size are the plumbing connections?
The 2 in. socket accepts a 2-1/2 in. spigot for more flow, the 1-1/2 in. socket accepts a 2 in. spigot for easier plumbing, and a 1/2 in. socket takes an overflow hose. All are PVC sockets for better glue joints.
Does the basket float up?
No. It is a large locking basket that twist locks into the skimmer so it stays put, then releases for easy access.
