Waterway 540-6200 commercial Renegade gunite in-ground skimmer with equalizer, whiteWaterway Commercial Renegade Gunite In-Ground Skimmer with Equalizer, 540-6200 In stock$11199
Waterway 540-6200 commercial Renegade gunite in-ground skimmer with equalizer, white
Shop all Waterway

Waterway Commercial Renegade Gunite In-Ground Skimmer with Equalizer, 540-6200

Ask a questionMPN 540-6200
$11199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • NSF approved at 75 GPM Certified with a flow rate of 75 GPM, which is what commercial work requires.
  • Equalizer line included The equalizer line is what makes the skimmer NSF compliant for commercial installations.
  • Plumbing connections 2-1/2 inch spigot x 2 inch S x 2 inch NPT, and the 2 inch socket is a 2-1/2 inch spigot for more flow.
  • PVC sockets Solvent welds to PVC directly for a stronger glue joint than a transition fitting.
  • Overflow provision A 1/2 inch socket is provided for the overflow line.
  • Locking basket and weir Large locking skimmer basket and a spring loaded weir door that lifts out for easy replacement.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Commercial Renegade Gunite In-Ground Skimmer with Equalizer, 540-6200, SKU WWP-25-6200. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Commercial Renegade Gunite In-Ground Skimmer with Equalizer, 540-6200
Waterway

Commercial Renegade Gunite In-Ground Skimmer with Equalizer, 540-6200

$11199
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Hayward SP1091LX complete above ground pool skimmer with inlet and vacuum plate, white Hayward Complete Skimmer with Inlet & Vac Plate For Above Ground Pools, White, SP1091LX$6699 Waterway 560-D3C60L Flo-Pro II long throat wide-mouth above-ground skimmer in white Waterway 1-1/2" FPT White Flo-Pro II Long Throat Wide-Mouth Above-Ground Skimmer, 560-D3C60L$6699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Hayward SP1099S complete front access skimmer in white Hayward Complete Front Access Skimmer, White, SP1099S$9799 Waterway 540-8550 Renegade wide-mouth vinyl liner in-ground skimmer in white Waterway Renegade 2" Socket White Wide-Mouth Vinyl Liner In-Ground Skimmer, 540-8550$16099 Waterway 560-C3C67L Flo-Pro II wide mouth above ground pool skimmer in gray Waterway Flo-Pro II Wide Mouth Skimmer, Gray, 560-C3C67L$7899 Hayward SkimMaster SP1072S2BLK 2 inch SKT black gunite pool skimmer Hayward 2" SKT Gunite SkimMaster Skimmer, Black, SP1072S2BLK$14399 Hayward SkimMaster SP1072T2 2 inch FPT gunite pool skimmer Hayward SkimMaster SP1072T2 2" FPT Gunite Skimmer$12699 Waterway 540-8400 Renegade white vinyl liner pool skimmer with square lid Waterway Renegade Vinyl Liner Skimmer, White, 2-Port with Square Lid, 540-8400$16499 Pentair 08650-4404 U-3 white gunite skimmer with lid and frame Pentair Gunite Skimmer U-3, White, 2 inch Slip, 08650-4404$15099
Hayward SP1082 Auto Skim Series pool skimmer with square white deck cover Hayward Auto Skim Series Skimmer 2-Inch, White, SP1082$15399 Waterway 540-6417 complete grey Renegade skimmer for concrete pools Waterway Complete Concrete Skimmer, Grey, 2", 540-6417$11499 AquaStar SKR101 Flow Star standard skimmer in white with water stop face AquaStar Flow Star Standard Skimmer with Water Stop Face, White, SKR101$14199 Aladdin 750 No-niche Lily Pad pool skimmer Aladdin Skimmer No-niche (Lily Pad)$7199 Pentair 84420805 Admiral S20 white skimmer with flap weir and 2 inch slip port Pentair Admiral S20 Skimmer with Flap Weir, 2" Slip Port, No Equalizer, White, 84420805$16199 Waterway 540-8407 complete standard vinyl skimmer in grey Waterway Complete Vinyl Skimmer, Standard, Grey, 540-8407$16399 CMP 25248-000-000 white front access skimmer kit CMP Front Access Skimmer Kit 1-1/2" Socket x 1-1/2" FIP, White, 25248-000-000$6299 AquaStar SKR103 complete skimmer in light gray with lid and ring AquaStar Complete Skimmer, Light Gray, with Lid and Ring, SKR103$14499 Waterway Renegade 540-6411 gunite in-ground skimmer with round lid, black Waterway Renegade Gunite In-Ground Skimmer with Round Lid 2" Socket x 2.5" Spigot Black, 540-6411$11699 Hayward SP1091WM Dyna-Skim complete wide mouth above ground pool skimmer Hayward Complete Wide Mouth Aboveground Pool Skimmer, SP1091WM$7899

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

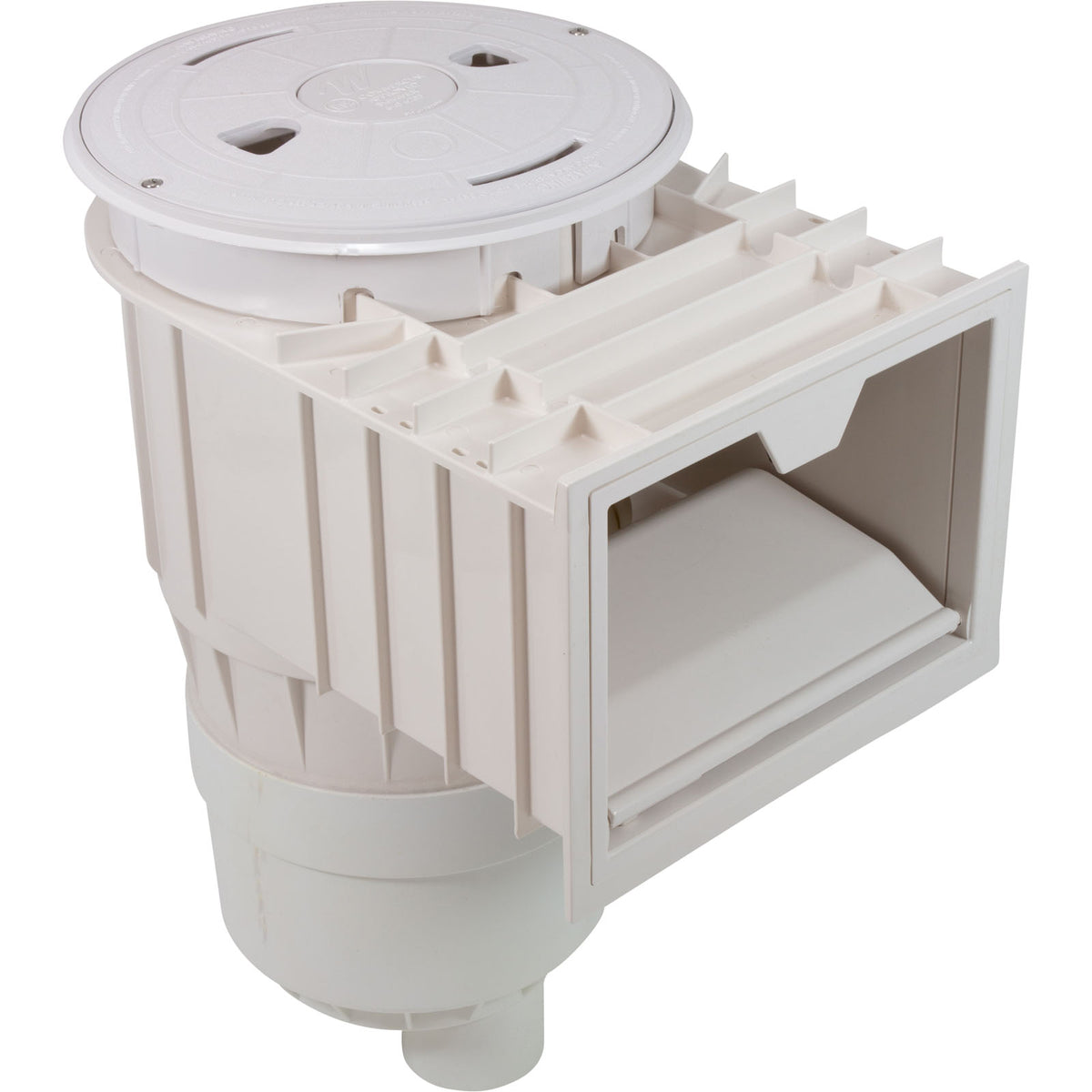

The Waterway 540-6200 is the commercial Renegade gunite in-ground skimmer with an equalizer line, in white. Connections are 2-1/2 inch spigot x 2 inch S x 2 inch NPT, and it is NSF approved with a flow rate of 75 GPM.

Built for commercial work

The equalizer line is the difference between this skimmer and a residential unit. It gives the pump a second source of water below the surface, so a pool that drops below the skimmer mouth does not lose prime, and it is part of what the NSF listing requires. There is also a 1/2 inch socket for an overflow line.

Plumbing and flow

The sockets are PVC, so pipe solvent welds straight to them and you get a proper glue joint rather than a threaded transition that can leak. Waterway made the 2 inch socket a 2-1/2 inch spigot specifically to allow more flow through the body, which is what supports the 75 GPM rating.

In service

The basket is large and locks in place, so it holds a real load of leaves and does not float out when the pump shuts off. The weir door is spring loaded and lifts out easily, which matters, because the weir is the part swimmers knock and the part you will replace first. An optional skimmer test kit is available.

Specifications
Brand Waterway
Manufacturer part number 540-6200
UPC 806105257277
Type Commercial gunite in-ground skimmer with equalizer
Connections 2-1/2 inch spigot x 2 inch S x 2 inch NPT
Overflow port 1/2 inch socket
Flow rate 75 GPM
Certification NSF approved
Color White
Construction PVC sockets
Basket Large locking skimmer basket
Weir Spring loaded weir door
Accessory Optional skimmer test kit
Shipping weight 9.78 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What is the equalizer line for?
It is a second suction port below the water line. If the pool level drops beneath the skimmer mouth, the equalizer keeps the pump fed with water instead of air. It is also part of what makes the skimmer NSF compliant on commercial pools.
What are the plumbing sizes?
2-1/2 inch spigot x 2 inch S x 2 inch NPT, with a 1/2 inch socket for the overflow line. The 2 inch socket is a 2-1/2 inch spigot, which Waterway did to allow more flow.
Is it certified for commercial use?
It is NSF approved with a flow rate of 75 GPM.
Can the weir door be replaced later?
Yes. The weir door is spring loaded and designed to come out easily, which matters because the weir is the part that takes the most abuse in service.
