Pentair SuperFlo Pump Parts

38 products

Match SuperFlo parts to horsepower on a single speed and to the build date on a variable speed. A single speed's impeller steps up with its rating, from 355043 at 1/2 and 3/4 HP to 355093 at 2-1/2 HP, and those five part numbers are the Challenger High Flow's as well. A SuperFlo VS or VST built after June 17, 2019 takes a different impeller, diffuser, shaft seal and seal plate, and Pentair changed its motor again for pumps built from November 2020.

Which horsepower is your SuperFlo?

The horsepower is on the pump's label. SuperFlo sizes are up rated, so a part titled 1 HP full rated, 1-1/2 HP up rated belongs to the 1-1/2 HP.

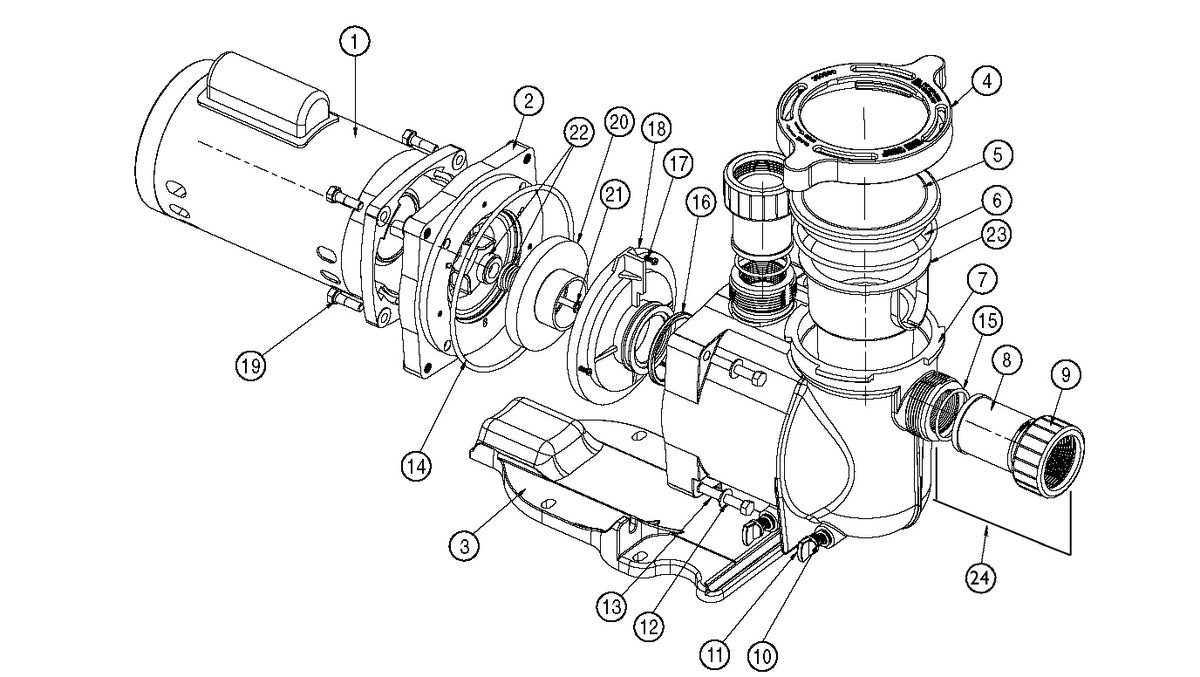

Pentair SuperFlo Pump exploded parts diagram with numbered keys123456789101112131415161718192021222324
Numbers are the manufacturer's own.

MotorPentair 355018S to 355026S, 355003S, 356630S, 071320S, 355008S to 355014S

Pentair .75 HP Motor Square Flange Single Speed Single Phase 60Hz 230-115V Almond | 355018S

Pentair OEMSingle speed

$28699 Out of stock
Pentair Single Speed OEM Replacement Motor, 1 Horsepower, 115/208-230 Volt, 1 Phase, 355022S

Pentair OEMSingle speed

$31899 Out of stock
Pentair Single Phase Single Speed Square Flange Replacement Pool and Spa Pump Motor, 1.5 HP, Almond, 355024S

Pentair OEMSingle speed

$39699 Out of stock
Pentair 2 HP Single Phase Single Speed Square Flange Replacement Motor, 208/230V, 355026S

Pentair OEMSingle speed

$46699 Out of stock
US Motors Pentair Replacement Pump Motor, Square Flange 1 HP 2 Speed 230V, 356630S

Pentair OEMTwo speed

$38399 Out of stock
Pentair Square Flange Motor 1.5HP 2-Speed Energy | 071320S

Pentair OEMTwo speed

$38999 Out of stock

Seal platePentair 356012

Pentair SuperFlo Seal Plate, 356012Z

Pentair OEM

$8699 In stock

BasePentair 350094

Pentair Superflo Pump Base, 350094

Pentair OEM

$10099 In stock

Lid clamp, cam and rampPentair 350090

Pentair Cam and Ramp Strainer Lid Clamp, SuperFlo, 350090Z

Pentair OEM

$4399 In stock

LidPentair 350091

Pentair Strainer Cover for SuperFlo Pool Pump, 350091Z

Pentair OEM

$3799 In stock

Lid o-ringPentair 357255

Pentair O-Ring, 2-357, 357255

Pentair OEMNo. 2-357

$1099 Out of stock
Pentair Strainer Cover O-Ring, Buna-N 70, #2-357, 357255Z

Pentair OEMNo. 2-357

$999 In stock

VolutePentair 350089

Pentair Superflo Pump Housing, Volute, 350089Z

Pentair OEM

$26899 In stock

Union adaptorPentair 350093

Pentair SuperFlo and SuperMax Union Adapter, 350093

Pentair OEMTwo per pump

$2599 In stock

Union nutPentair 350092

Pentair Superflo Pump Pipe Adapter Nut Only | 350092

Pentair OEMTwo per pump

$1899 Out of stock
Swimables Generic Nut Replacement for Pentair SuperFlo Pump, SW-21-092

GenericReplaces 350092

$2199 In stock

Drain plug o-ringPentair 192115

Pentair Genuine OEM O-Ring for Drain Plug, 192115

Pentair OEMTwo per pump

$399 In stock

Drain plugPentair 071131

Pentair Twist Thumb Drain Plug .25" NPT P19656 071131Z | 071131

Pentair OEMTwo per pump

$1099 In stock

Screw, 3/4-16 x 2-1/4Pentair 355621

Pentair (4 REQ) SCREW 3/8"-16x2-1/4" HEX HEAD | 355621

Pentair OEMFour per pump

$1499 Out of stock

Washer, 3/8Pentair 072184

Pentair Washer 3/8"x13/16", 072184

Pentair OEMFour per pump

$599 In stock

Seal plate o-ringPentair 355619

Pentair SuperFlo Seal Bracket O-Ring, 355619Z

Pentair OEM

$1699 In stock

Union adaptor o-ringPentair 6020018

Pentair O-Ring Adapter #2-226, 2 Req., 6020018

Pentair OEMNo. 2-226, two per pump

$799 In stock

Diffuser sealPentair 355030

Pentair Genuine OEM High Flow Diffuser O-Ring, 355030

Pentair OEM

$1799 In stock

Diffuser screw, No. 8-32Pentair 355334

Pentair Hex Head Screw for Diffuser, 355334

Pentair OEMThree per pump

$799 In stock

DiffuserPentair 355617, 355618, 350170

Pentair SuperFlo Diffuser, 1/2 HP Thru 1 HP, 355617Z

Pentair OEM

$8899 In stock
Pentair SuperFlo and SuperMax Diffuser, 1-1/2 HP Thru 2 HP, 355618Z

Pentair OEM

$9499 In stock

Motor screw, 3/8-16Pentair U30-74SS

Sta-Rite Cap Screw Hex Head 3/8"-16x1", U30-74SS

Pentair OEMFour per pump

$1699 Out of stock

ImpellerPentair 355043, 355067, 355074, 355086, 355093

Pentair Impeller, 1/2 HP Full Rated / 3/4 HP Up Rated, High Flow, 355043Z

Pentair OEM

$5699 In stock
Pentair SuperFlo and SuperMax Impeller, 3/4 HP Full Rated, 1 HP Up Rated, High Flow, 355067Z

Pentair OEM

$6199 In stock
Pentair Super Flo/Max Impeller, 1 HP Full Rated / 1.5 HP Up Rated, High Flow, 355074Z

Pentair OEM

$6099 In stock
Pentair SuperFlo and SuperMax Impeller, 1.5 HP Full Rated / 2 HP Up Rated, High Flow, 355086Z

Pentair OEM

$5999 In stock
Pentair Impeller, 2 HP Full Rated / 2-1/2 HP Up Rated, High Flow, 355093Z

Pentair OEM

$5499 In stock

Impeller locking screwPentair 355389

Pentair Impeller Locking Screw, 355389

Pentair OEM

$1099 In stock

Shaft seal setPentair 354545S

Pentair Mechanical Shaft Seal, 5/8", 354545S

Pentair OEM

$3499 In stock
U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200), PS-3867

GenericReplaces 354545S

$1499 In stock

Basket, largePentair 355667

Pentair OEM Pump Basket SuperFlo Pinnacle SuperMax | 355667

Pentair OEM

$3099 In stock

Union kitPentair 350157, 351157

Pentair 1.5" Black Union Kit for SuperMax and SuperFlo, 351157

Pentair OEMAdaptors, nuts and o-rings, two of each

$8299 In stock

Drawing and key numbers from Pentair's SuperFlo pump replacement parts sheet, for the single speed SuperFlo. Generic and kit parts sit at the key for the manufacturer's part they replace.

Pump Parts
Pump Motors
Skip to results list

Filters

38 items

Filter

About Pentair SuperFlo Pump Parts

Parts for the Pentair SuperFlo single speed and the SuperFlo VS and VST: impellers and diffusers by horsepower and by build date, shaft seals and seal kits, seal plates, drives, motors and automation wiring for the variable speed models, and the strainer pot, lid, locking ring, basket, base and union parts.

Many of these also fit the Sta-Rite SuperMax, whose parts are on Sta-Rite Max-E-Pro pump parts, and five of the impellers are shared with the High Flow pumps on Challenger pump parts. The WhisperFlo and IntelliFlo have pages of their own. Every brand is on pump parts and motors, motors are on pool pump motors, and whole pumps are on Pentair pool pumps.

Two Pool School guides go with these parts. After a new lid O-ring, basket or shaft seal, how to prime a pool pump gets the SuperFlo running again, with each manufacturer's time limit. And before ordering a motor for the SuperFlo, motor or whole pump has the tests that tell a failed motor from a jammed impeller.

Questions about Pentair SuperFlo Pump Parts

Which impeller and diffuser fit my Pentair SuperFlo single speed?

Pentair's SuperFlo table goes by horsepower: 1/2 and 3/4 HP take impeller 355043, 1 HP takes 355067, 1-1/2 HP 355074, 2 HP 355086 and 2-1/2 HP 355093. Diffuser 355617 covers 1/2 to 1 HP, 355618 covers 1-1/2 and 2 HP, and 350170 is for 2-1/2 HP. Pentair's 2023 SuperFlo manual lists a different pair, impeller 356356Z and diffuser 356358Z, so check the parts list in the manual that came with your pump before you order.

Which parts fit a Pentair SuperFlo VS built after June 2019?

Pentair split the VS and VST parts list at June 17, 2019. Pumps built after it take impeller C105-238PDCA, diffuser 355949, diffuser seal 355331, shaft seal 17351-0101S and seal plate 356071. Pumps built before it take impeller 355074, diffuser 355618, diffuser seal 355030, shaft seal 354545S and seal plate 356012. The strainer pot, lid, locking ring, basket, base and union parts are the same either side of that date.

My Pentair SuperFlo VS motor or drive failed. Which replacement fits?

Go by the build date. For SuperFlo VS and VST pumps built before November 2020 Pentair lists motor 353134S and drive kit 353127, with digital input wiring kit 353129Z for automation. Pumps built after October 2020 take motor 356284 or the TEFC 356286S, and drive kit 353127 or the RS-485 kit 356282, connected to automation by kit 356324Z. The WhisperFlo VS and VST use the same TEFC motor and RS-485 drive kit.

Water is dripping between the pump and the motor on my Pentair SuperFlo. What do I replace?

Most likely the shaft seal. Its white ceramic half sits in the seal plate and its spring half rides on the motor shaft, and Pentair warns that running a SuperFlo dry ruins it and starts a leak. The single speed takes seal set 354545S, or 356210S for ozone and salt water, and the SuperFlo and SuperMax seal kit 356197 is sold as chemical, salt and ozone resistant. A SuperFlo VS or VST built after June 17, 2019 takes 17351-0101S instead.

Why do Pentair SuperFlo impellers list two horsepower ratings?

Because the same five impellers go in the Challenger High Flow, whose sizes Pentair writes as a full rated and an up rated pair. From 3/4 HP up, a SuperFlo's horsepower matches the up rated half. The 1 HP SuperFlo takes 355067, which Pentair lists for a 3/4 HP full rated, 1 HP up rated Challenger, and the 1-1/2 HP SuperFlo takes 355074, listed for 1 HP full rated, 1-1/2 HP up rated. The 2 and 2-1/2 HP follow the same pattern.
