Pentair 2 HP Single Phase Single Speed Square Flange Replacement Motor, 208/230V, 355026S

Ask a questionMPN 355026S
$46699
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2 HP single speed Standard efficiency, single phase motor for pool and spa pumps.
  • 208-230V, 60 Hz Wired for a 240V pump circuit.
  • Square flange Bolts to square flange seal plates such as the Pentair Challenger.
  • Almond finish The Pentair color that matches the pump housing.
  • Genuine Pentair Part 355026S, the factory replacement motor.
  • Not for California This motor does not meet CEC Title 20 requirements and cannot be shipped to or installed in California.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair 2 HP Single Phase Single Speed Square Flange Replacement Motor, 208/230V, 355026S, SKU PAC-101-5297. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair 2 HP Single Phase Single Speed Square Flange Replacement Motor, 208/230V, 355026S
Pentair

2 HP Single Phase Single Speed Square Flange Replacement Motor, 208/230V, 355026S

$46699
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509
Pentair

Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

$1399
Pentair Challenger Front Housing, Slip Suction, Black, 355468Z
Pentair

Challenger Front Housing, Slip Suction, Black, 355468Z

$13999
Pentair Challenger Pump Strainer Pot, 355300
Pentair

Challenger Pump Strainer Pot, 355300

$13999
Pentair Challenger Front Housing O-Ring, 355329Z
Pentair

Challenger Front Housing O-Ring, 355329Z

$2299
Aladdin Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9
Aladdin

Go-Kit 5 Pump Rebuild Kit for Pentair PacFab Challenger Pumps, GO-KIT5-9

$2499
Subtotal

Similar products

Other products people compare with this one.

Pentair 356198 seal kit for WhisperFlo and IntelliFlo pool pumps Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198$3799 Pentair 357228Z OptiFlo pump strainer pot with drain plugs Pentair OptiFlo Strainer Pot with Drain Plug, 357228Z$4099 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 357872 IntelliFlo3 and IntelliPro3 pump rebuild seal set kit Pentair IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872$3499 Pentair 071652Z impeller set screw, 1/4-20 x 1 in. left hand thread Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z$599 Pentair 356189Z lid o-ring for IntelliFlo3 pool pump Pentair Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z$2599 Pentair 357527Z IntelliFlo keypad cover kit, almond Pentair IntelliFlo Keypad Cover Kit, Almond, 357527Z$32699 Pentair 410029 3 in. union kit for the 3 HP IntelliFlo3 pool pump Pentair 3" Union Kit for 3 HP IntelliFlo3 Pool Pump, 410029$6299 Pentair 355030 square profile high flow diffuser o-ring Pentair Genuine OEM High Flow Diffuser O-Ring, 355030$1799
Pentair 075713 rubber impeller washer gasket for WhisperFlo and IntelliFlo pumps Pentair Rubber Impeller Washer Gasket, 075713$599 Pentair 355619Z SuperFlo and Pinnacle seal bracket O-ring Pentair SuperFlo Seal Bracket O-Ring, 355619Z$1699 Pentair 355330 Challenger strainer pot flange o-ring, 2-3/8 inch ID Pentair Challenger Strainer Pot Flange O-Ring$799 Pentair 356356Z 1.1 THP SuperFlo Max impeller, Pentair brand image Pentair 1.1 THP SuperFlo Max Impeller, 356356Z$6299 Pentair 350089Z SuperFlo pump housing volute Pentair Superflo Pump Housing, Volute, 350089Z$26899 Pentair 351446 WhisperFlo XF seal plate o-ring Pentair WhisperFlo XF Seal Plate O-Ring, 351446$1599 Pentair 356922Z IntelliFlo VSF drive kit with keypad Pentair IntelliFlo VSF Drive Kit With Keypad, 356922Z$1,26999 Pentair 355315Z Challenger impeller for 1-1/2 HP full rated and 2 HP up rated high pressure pumps Pentair Challenger Impeller, 1-1/2 HP Full Rated / 2 HP Up Rated, High Pressure, 355315Z$6499 Pentair 072928Z black 3 HP diffuser assembly for WhisperFlo and IntelliFlo pumps Pentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z$4499 Pentair 356238Z IntelliFlo 3.0 Energy Star diffuser assembly Pentair IntelliFlo 3.0 Energy Star Diffuser Assembly, 356238Z$9499

Product details

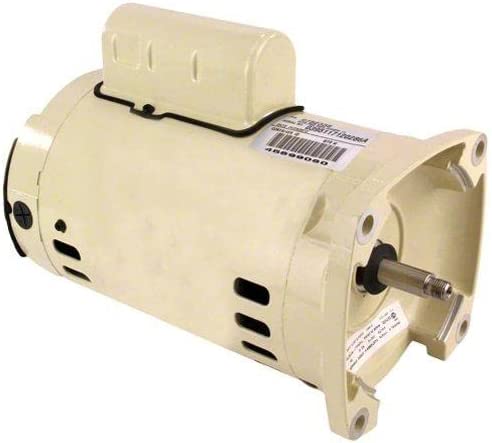

The Pentair 355026S is a 2 HP, single speed, single phase square flange motor in almond, the factory replacement for Pentair pool and spa pumps that use a square flange seal plate, including the Challenger. It runs on 208 to 230V at 60 Hz and is a standard efficiency motor.

Installation

A square flange motor bolts through the seal plate with four bolts. Match the horsepower and flange style of the motor coming off, and fit a new mechanical shaft seal during the swap. A used seal will not reseat cleanly on a new shaft.

California

This motor does not meet the California Energy Commission Title 20 standards for pool pumps and replacement motors, so it cannot be shipped to, sold in or installed in California. For that state a CEC compliant variable speed motor such as the Century V-Green Evo ECM27SQU is the correct choice.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Where this part goes

1 Key 1 on the Pentair SuperFlo PumpFor the 2-1/2 HP (2-1/2 HP).See it on the diagramAll Pentair SuperFlo Pump Parts 38 parts and the drawing
Specifications
Brand Pentair
Manufacturer part number 355026S
UPC 788379803308
Horsepower 2 HP
Speed Single speed
Phase Single phase
Voltage 208-230 V
Frequency 60 Hz
Flange Square flange
Efficiency Standard efficiency
Color Almond
California Not CEC compliant, cannot ship to California
Shipping weight 32.75 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Can this ship to California?
No. The 355026S does not meet the California Energy Commission Title 20 standards for pool pump motors and cannot be sold or installed in California. A variable speed CEC compliant motor such as the Century V-Green Evo ECM27SQU is the alternative there.
What voltage does it run on?
208 to 230V, single phase, 60 Hz. It is not a dual voltage 115V motor.
What pumps take a square flange motor?
Square flange motors bolt to seal plates like the one on the Pentair Challenger. Match the flange style and horsepower of the motor you are removing.
Do I need a new shaft seal?
Yes. Replace the mechanical shaft seal whenever the motor is changed. The old seal will not reseat reliably on a new shaft.
