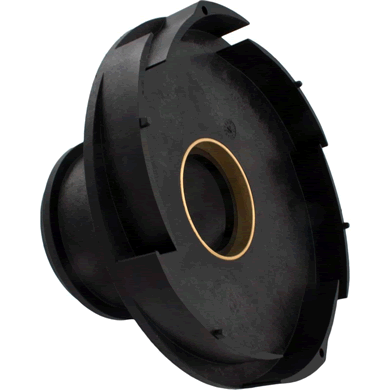

Pentair 072928Z black 3 HP diffuser assembly for WhisperFlo and IntelliFlo pumpsPentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z In stock$4499
Pentair 072928Z black 3 HP diffuser assembly for WhisperFlo and IntelliFlo pumps
Shop all Pentair

Pentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z

Ask a questionMPN 072928Z
$4499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory part 072928Z, in black.
  • 3 HP models This diffuser is the 3 HP version. Other horsepowers take their own diffuser.
  • Builds pump pressure The diffuser slows the water leaving the impeller, which converts velocity into pressure.
  • WhisperFlo and IntelliFlo Used on the Pentair WhisperFlo WF and WFE pumps and the IntelliFlo VS3050 and VF pumps.
  • Rebuild companion Usually replaced with the impeller, the diffuser o-ring and a seal and gasket kit while the pump is open.
  • Fixes lost performance A cracked or worn diffuser lets water bypass the impeller, and the pump moves less water for the same energy.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z, SKU PUR-101-2754. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z
Pentair

Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z

$4499
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S
Pentair

3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S

$78199
Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9
Aladdin

Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9

$3499
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872
Pentair

IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872

$3499
Subtotal

Similar products

Other products people compare with this one.

Pentair 356156Z diffuser for the 3HP IntelliFlo3 pool pump Pentair Diffuser for 3HP IntelliFlo3 Pool Pump, 356156Z$5899 Pentair 357199Z almond Cam and Ramp strainer lid clamp for WhisperFlo and IntelliFlo pumps Pentair Cam and Ramp Strainer Lid Clamp, Almond, for WhisperFlo and IntelliFlo Pumps, 357199Z$5099 Pentair 070387Z WhisperFlo and IntelliFlo pump strainer basket Pentair OEM Replacement WhisperFlo Pump Basket, 070387Z$2299 Pentair 357151Z clear WhisperFlo pump lid, cam and ramp style Pentair Lid, Clear, WhisperFlo Newer Cam/Ramp Style, 357151Z$3999 Pentair 356155Z diffuser for the IntelliFlo3 VSF 1.5 HP pool pump Pentair Diffuser for IntelliFlo3 VSF 1.5 HP Pump, 356155Z$5899 Pentair 071734S seal kit for WFE and IntelliFlo pool pumps Pentair Seal Kit for WFE and IntelliFlo Pumps, 071734S$3599 Pentair 356172Z almond lid assembly for the IntelliFlo3 pool pump Pentair Lid Assembly in Almond for IntelliFlo3 Pool Pump, 356172Z$6499 Pentair 070795 clear Lexan pump lid for WhisperFlo and Aquatron metal clamp style pumps Pentair Lexan Cover for WhisperFlo and Aquatron, Older Metal Clamp Style, 070795$5199 Pentair 400006 WhisperFlo XF lid and locking ring assembly Pentair WhisperFlo XF Lid and Locking Ring, 400006$5799 Pentair 400004Z WhisperFlo XF motor base Pentair WhisperFlo XF Motor Base, 400004Z$4199
Pentair 411000 WhisperFlo XF pump union nut Pentair WhisperFlo XF Union Nut, 411000$2399 Pentair 356189Z lid o-ring for IntelliFlo3 pool pump Pentair Lid O-Ring for IntelliFlo3 Pool Pump, 356189Z$2699 Pentair 410029 3 in. union kit for the 3 HP IntelliFlo3 pool pump Pentair 3" Union Kit for 3 HP IntelliFlo3 Pool Pump, 410029$6299 Pentair 410028Z 2 in. and 2.5 in. union kit for the 3 HP IntelliFlo3 pool pump Pentair 2 in. and 2.5 in. Union Kit for 3 HP IntelliFlo3 Pool Pump, 410028Z$5299 Pentair 356176Z impeller for the IntelliFlo3 VSF 1.5 HP pump Pentair IntelliFlo3 VSF 1.5 HP Impeller, 356176Z$5799 Pentair 400007Z replacement strainer basket for WhisperFloXF and IntelliFloXF pumps Pentair Replacement Basket for WhisperFloXF and IntelliFloXF Pump, 400007Z$4599 Pentair 074162Z strainer basket for IntelliFlo3 VSF 1.5 HP pump Pentair Strainer Basket for IntelliFlo3 VSF 1.5 HP Pump, 074162Z$4199 Pentair 070927 replacement pump foot base Pentair Pump Foot Base, 070927$3999 Pentair 357156 chemical resistant blue tinted strainer cover for WhisperFlo pumps Pentair Chemical Resistant Strainer Cover, 357156$4799 Pentair 357833Z riser A/B thin base kit for the IntelliFlo3 pool pump Pentair Riser A/B Thin Base Kit for IntelliFlo3 Pool Pump, 357833Z$4199

Product details

The Pentair 072928Z is the black diffuser assembly for 3 HP WhisperFlo and IntelliFlo pool pumps. It is the genuine Pentair part, also listed as 072928.

What the diffuser does

The impeller throws water outward at speed. The diffuser wraps around it and slows that water down on its way into the volute, which turns velocity into pressure. Without a good diffuser the pump spins and moves water, but it does not build the head it should, and the whole system runs soft.

Signs it needs replacing

A diffuser that has cracked, warped or lost its sealing face lets water short circuit back to the impeller eye. Flow drops, the filter pressure reads low, and the cleaner or spa jets go weak while the motor draws the same power as before.

While the pump is apart

Replace the diffuser o-ring at the same time, and consider the impeller and a seal and gasket kit if the pump has a few seasons on it. The same teardown reaches all of them.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

30 Key 30 on the Pentair IntelliFlo PumpFor the VS or 2 VST, before October 2020 (VS or 2 VST, before October 2020), VSF, before October 2020 (VSF, before October 2020), VS+SVRS, before October 2020 (VS+SVRS, before October 2020), VS+SVRS, after October 2020 (VS+SVRS, after October 2020).See it on the diagramAll Pentair IntelliFlo Pump Parts 75 parts and the drawing13 Key 13 on the Pentair WhisperFlo PumpFor the WF-12 (3 HP).See it on the diagramAll Pentair WhisperFlo Pump Parts 73 parts and the drawing
Specifications
Brand Pentair
Manufacturer part number 072928Z
Alternate part number 072928
UPC 788379699666
Type Diffuser assembly
Color Black
Horsepower 3 HP
Part type Pool pump part
Fits Pentair WhisperFlo WF and WFE pumps, Pentair IntelliFlo VS3050 and VF pumps
Shipping weight 0.7 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What does a diffuser do?
It sits around the impeller and slows the water on its way out. Slowing the flow converts its speed into pressure, which is what pushes water through the filter and back to the pool.
Will it fit a smaller WhisperFlo?
This one is the 3 HP diffuser. Pentair uses a different diffuser for other horsepower ratings, so match the part to the pump.
Is 072928 the same as 072928Z?
Yes. The two numbers refer to the same Pentair diffuser assembly.
What else should I replace while the pump is open?
The diffuser o-ring, and usually the impeller and a seal and gasket kit. The same teardown reaches all of them, so doing them together saves a second job.
