Pentair 355024S 1.5 HP single speed square flange pool and spa pump motor in almondPentair Single Phase Single Speed Square Flange Replacement Pool and Spa Pump Motor, 1.5 HP, Almond, 355024S$39699

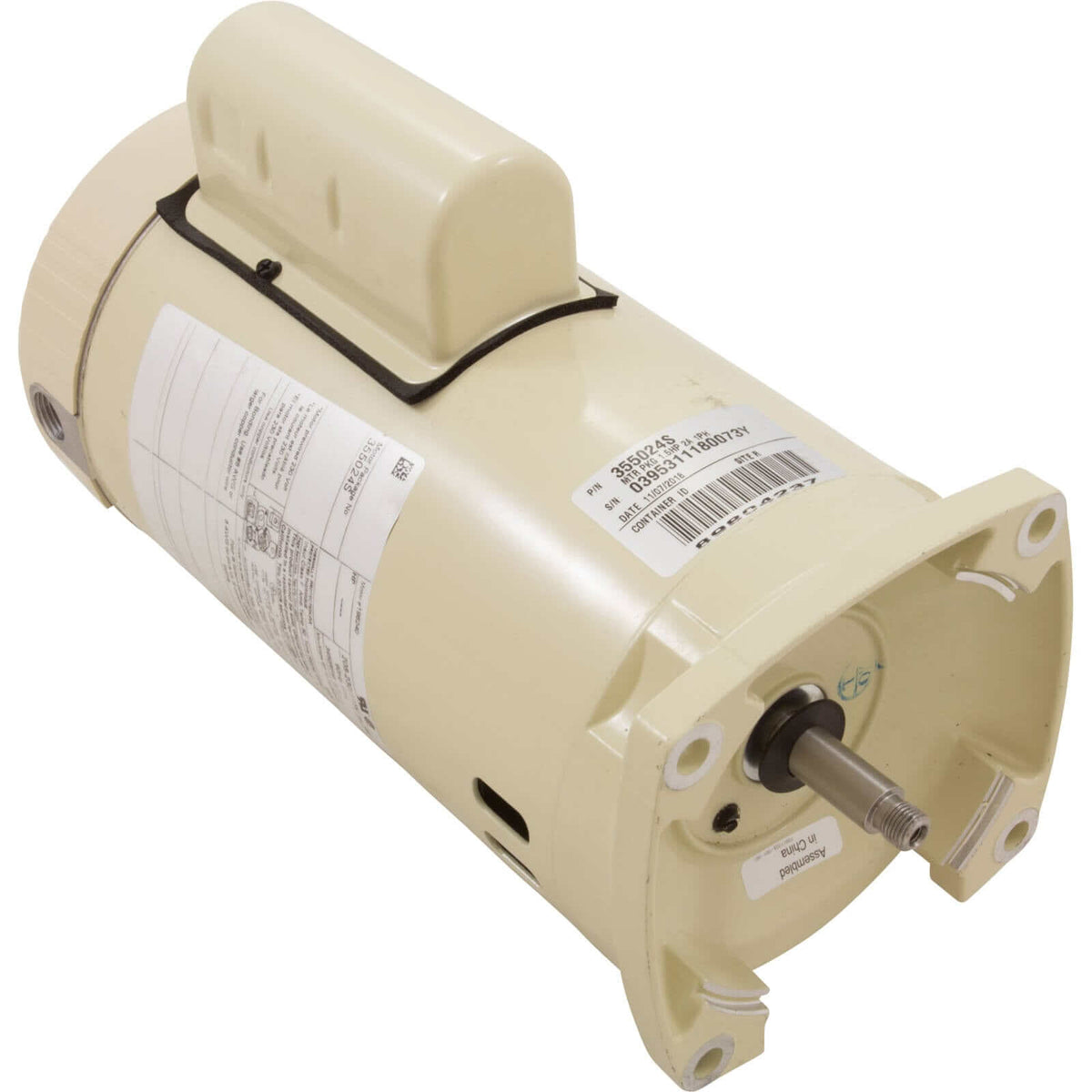

Pentair 355024S 1.5 HP single speed square flange pool and spa pump motor in almond
Shop all Pentair

Pentair Single Phase Single Speed Square Flange Replacement Pool and Spa Pump Motor, 1.5 HP, Almond, 355024S

Ask a questionMPN 355024S
$39699
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory replacement motor, part 355024S.
  • Square flange mount The square flange pattern, so it bolts to a square flange wet end.
  • 1.5 HP single speed Runs at one speed and is rated 1.5 HP.
  • Dual voltage Listed for 115 volt and 208 to 230 volt service at 60 Hz.
  • Single phase For standard single phase residential power, not three phase service.
  • Almond finish Finished in almond, matching the pumps it replaces.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Single Phase Single Speed Square Flange Replacement Pool and Spa Pump Motor, 1.5 HP, Almond, 355024S, SKU PAC-101-5296. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Single Phase Single Speed Square Flange Replacement Pool and Spa Pump Motor, 1.5 HP, Almond, 355024S
Pentair

Single Phase Single Speed Square Flange Replacement Pool and Spa Pump Motor, 1.5 HP, Almond, 355024S

$39699
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair OptiFlo Strainer Pot with Drain Plug, 357228Z
Pentair

OptiFlo Strainer Pot with Drain Plug, 357228Z

$4099
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S
Pentair

3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S

$78199
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509
Pentair

Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

$1399
Subtotal

Similar products

Other products people compare with this one.

Century Centurion Pro HSQ165 1.65 THP square flange pool and spa pump motor, 48Y frame Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165$33999 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century B2855 2 HP 230 V 56Y square flange pool and spa pump motor Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855$41199 Century B2853V1 1 HP square flange pool pump motor, front view Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1$31999 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors Square Flange Pool and Spa Motor, 56Y Frame, 115/230V, ASB848$32399 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$55099 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$56999 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$56999 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motor Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152$51899
Century B2854V1 1-1/2 HP 56Y square flange pool pump motor Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1$33999 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus Square Flange Full-Rated Pool Pump Motor, 1 HP, B2841V1$37999 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century EVC130 VGreen Evo 1.30 THP C flange variable speed pool pump motor Century VGreen Evo Variable Speed 1.30 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC130$57299 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$35199 Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J Century Pro C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V, HST110$29199 Century SQ1072 3/4 HP square flange pool pump motor, front view Century 3/4 HP Square Flange Pool Pump Motor, 115/230V, SQ1072$31299 Pentair 356286S almond TEFC motor for SuperFlo VST and WhisperFlo VST pumps Pentair SuperFlo VST and WhisperFlo VST Almond TEFC Motor, 356286S$56399

Product details

The Pentair 355024S is a 1.5 HP single speed replacement motor for pool and spa pumps, built on the square flange mount. It runs on single phase power at 115 volts or 208 to 230 volts, 60 Hz, and is finished in almond.

Matching a motor to a pump

Three things have to line up when you replace a pump motor: the mount, the horsepower and the electrical supply. This one is square flange, rated 1.5 HP, and single phase. Take the mount from the old motor rather than the pump model, since the same pump body was often sold with more than one motor option over the years.

While the pump is apart

Swapping a motor means separating it from the wet end, which exposes the shaft seal and the housing gasket. Those parts are consumable and rarely worth reusing once disturbed, so plan on a seal and gasket kit at the same time. Electrical connection should follow the wiring diagram on the motor for the voltage you are supplying.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Where this part goes

1 Key 1 on the Pentair SuperFlo PumpFor the 2 HP (2 HP).See it on the diagramAll Pentair SuperFlo Pump Parts 38 parts and the drawing
Specifications
Brand Pentair
Manufacturer part number 355024S
UPC 788379803292
Type Replacement pool and spa pump motor
Horsepower 1.5 HP
Speed Single speed
Phase Single phase
Voltage 115/208-230 V
Frequency 60 Hz
Mount Square flange
Color Almond
Shipping weight 35.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29899 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a square flange or a C face motor?
Square flange. Confirm the wet end on your pump takes a square flange motor before ordering.
Can it run on 115 volts?
It is listed for 115 volt and 208 to 230 volt service at 60 Hz. Wiring for the voltage you are using is part of the installation.
Does a shaft seal come with the motor?
No. The motor is supplied on its own. A seal and gasket kit for the pump is a separate item, and it is worth fitting new seals any time the wet end comes apart.
Is this single speed or variable speed?
Single speed, single phase. It runs at one fixed speed.
Ask your own question
