Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motorCentury Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152 In stock$52399
Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motor
Shop all Century Motors

Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152

Ask a questionMPN Q3152
$52399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three phase Wired for three phase power, not the single phase supply on a typical residential pool.
  • Dual voltage Rated for 230V or 460V three phase service.
  • 1.5 HP Rated at one and a half horsepower.
  • Square flange The square flange mount, so it bolts up to pumps built around that frame.
  • Replacement motor Supplied as a motor for an existing pump wet end, not as a complete pump.
  • Check before ordering Confirm the old motor is square flange and three phase, since square flange and C-face motors are not interchangeable.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152, SKU AOS-60-5302. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152
Century Motors

Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152

$52399
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$35099
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$63899
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$42499
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$35099
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$32999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$29699
Subtotal

Similar products

Other products people compare with this one.

Century H755 square flange 3 HP three phase pool pump motor Century Square Flange Pool Pump Motor, 3 HP, 3 Phase, 208/230/460V, H755$66499 Century H637 square flange full rated 2HP three phase pool pump motor Century Square Flange Full Rated 2HP 3 Phase 208/230/460V Pump Motor, H637$62099 Century EVQ225 VGreen Evo 2.25 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ225$67299 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$58699 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$54099 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$39199 Century EVC165 VGreen Evo variable speed C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 1.65 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC165$64999 Century EVC225 VGreen Evo variable speed 2.25 THP C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 2.25 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC225$68199 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$36999 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$57499
Century B985 square flange two speed pool pump motor, 230V Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985$68899 Century EVC130 VGreen Evo 1.30 THP C flange variable speed pool pump motor Century VGreen Evo Variable Speed 1.30 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC130$59099 Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$28499 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$55899 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$60399 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$30599 U.S. Motors EEQK500 5 HP three phase replacement motor for Pentair EQ series pool pumps U.S. Motors Pentair EQ Pump Series Replacement Pool Motor, 5HP 3-Phase 208-230-460V, EEQK500$77299 Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frame Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R$74099 Century Pro HSQ260 square flange pool and spa pump motor, 2.6 HP, 230 V, 48Y frame Century Pro HSQ260 Square Flange Pump Motor, 2.6 HP, 3450 RPM, 230V, 48Y$57799 Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095$28399

Product details

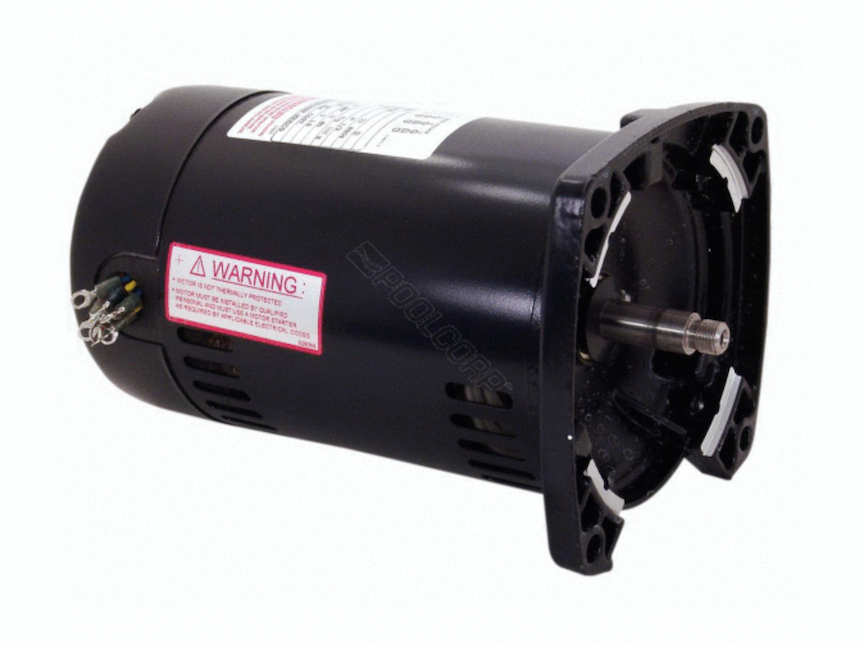

The Century Q3152 is a square flange replacement pool pump motor rated at 1.5 HP, three phase, 230/460V. It is a motor only, fitted to an existing pump wet end.

Three phase, not residential

The important detail is the three phase rating. Three phase power is a commercial service, so this motor belongs on commercial and community pool equipment, or on a property that is genuinely wired for it. It will not run on the single phase supply at a typical house. The 230/460V rating covers both common three phase voltages.

Matching the mount

Square flange is a mounting style, and it is not interchangeable with a C-face motor. Before ordering, look at the motor coming off and confirm it is a square flange unit, that it is three phase, and that the horsepower matches. Ordering by pump model alone is how the wrong motor ends up on the pad.

Specifications
Brand Century
Manufacturer part number Q3152
Type Replacement pool pump motor
Part type Replacement motor
Horsepower 1.5 HP
Phase 3 phase
Voltage 230/460V
Mounting Square flange
Shipping weight 26 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Will this run on my house power?
Only if the pool equipment is on three phase service. This is a three phase motor, so it will not run on the single phase supply at a typical home.
Is it 230V or 460V?
Both. It is rated 230/460V three phase and is wired for whichever supply is present.
What does square flange mean?
It is the mounting style. The motor bolts to the pump through a square flange face. Square flange and C-face motors are not interchangeable, so match what came off.
Does it come with a seal or a wet end?
No. This is the motor only. The shaft seal and any gaskets are ordered separately for the pump it is going into.
