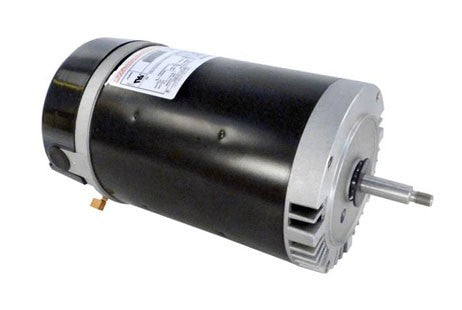

Century SN1152 1.5 HP full rated NorthStar replacement pool pump motor, 56J C-face with threaded shaftCentury NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152 In stock$53699
Century SN1152 1.5 HP full rated NorthStar replacement pool pump motor, 56J C-face with threaded shaft
Shop all Century Motors

Century NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152

Ask a questionMPN SN1152
$53699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • NorthStar replacement Century builds the SN1152 for Hayward® NorthStar pumps and cross references it to Hayward® SP1615Z1BNSC.
  • 2.4 total HP 1.5 HP at a 1.60 service factor, the full rated version rather than the uprated USN1152.
  • Dual voltage Rated 208-230/115 V at 60 Hz, drawing 11.0-10.2/20.4 A at full load.
  • 56J C-face, threaded shaft NEMA C-face dripproof frame with no base and a 7/16-20 threaded 303 stainless steel shaft.
  • Switchless design No start switch, with ball bearings, low noise and a cool running winding.
  • E-coated frame The main frame is e-coated for corrosion resistance at the equipment pad.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152, SKU AOS-60-6001. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152
Century Motors

Century NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152

$53699
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century H637 square flange full rated 2HP three phase pool pump motor Century Square Flange Full Rated 2HP 3 Phase 208/230/460V Pump Motor, H637$60299 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$34499 Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$27799 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$27599 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$32199 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$54299
Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$58499 Century H755 square flange 3 HP three phase pool pump motor Century Square Flange Pool Pump Motor, 3 HP, 3 Phase, 208/230/460V, H755$64499 Century B129 threaded shaft pool pump motor, 1.5 HP, 115/230V Century Threaded Shaft Pool Pump Motor, 1.5 HP, 115/230V, B129$42999 Century Motors AO Smith Threaded Shaft Motor 1HP 115V/230V 56 Round Frame Full-Rate Energy Efficient | CT1102 Century Motors AO Smith Threaded Shaft Motor 1HP 115V/230V 56 Round Frame Full-Rate Energy Efficient | CT1102$38399 Century Motors Magnetek Threaded Shaft Motor 3HP 230V56 Round Frame Full-Rated | B131 Century Motors Magnetek Threaded Shaft Motor 3HP 230V56 Round Frame Full-Rated | B131$64099 U.S. Motors EEQK500 5 HP three phase replacement motor for Pentair EQ series pool pumps U.S. Motors Pentair EQ Pump Series Replacement Pool Motor, 5HP 3-Phase 208-230-460V, EEQK500$74999 Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frame Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R$71899 Century Motors A.O. Smith Northstar Motor 1HP 115V-230V Full-Rate Threaded | SN1102 Century Motors A.O. Smith Northstar Motor 1HP 115V-230V Full-Rate Threaded | SN1102$48499 Century B2979 2 HP two speed 230V round flange threaded shaft pool pump motor Century Threaded Shaft 2 HP 2 Speed 230V Full Rate Motor B2979$60599 Century EVQ225 VGreen Evo 2.25 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ225$65299

Product details

The Century SN1152 is the 1.5 HP full rated replacement motor for Hayward® NorthStar pool pumps, with a 1.60 service factor for 2.4 total horsepower on a 56J C-face frame. Century, the Regal Rexnord brand formerly sold as A.O. Smith, cross references it to Hayward® motor SP1615Z1BNSC.

Ratings and construction

The motor is rated 208-230/115 V, 60 Hz, single phase, and draws 11.0-10.2/20.4 A at full load at 3450 RPM. It is a NEMA C-face dripproof design with no base, a threaded 303 stainless steel shaft with a 7/16-20 UNF-2A RH thread, counterclockwise rotation viewed from the shaft end and an overall length of 13.85 in. It is switchless, with ball bearings, Class B insulation rated for a 50 C ambient, automatic thermal protection and an e-coated main frame for corrosion resistance.

Choosing the right motor

Multiply the horsepower on the old motor label by its service factor, then choose a replacement with equal or slightly higher total horsepower. Century also makes an uprated USN1152, 1.5 HP at a 1.25 service factor for 1.88 total horsepower, which cross references to SP1610Z1MNSC, so match the service factor before ordering.

Before you install

Wire the motor for your supply voltage using the connection diagram on the nameplate or inside the terminal cover. Century notes that its NorthStar replacement motors are not equipped with a safety vacuum release system, which some pool installations require.

Specifications
Brand Century
Manufacturer part number SN1152
Type Pool pump motor, full rated, energy efficient
Fits Hayward® NorthStar pumps
Replaces Hayward® SP1615Z1BNSC
Horsepower 1.5 HP
Service factor 1.60
Total horsepower 2.4 THP
Voltage 208-230/115 V, 60 Hz, single phase
Full load amps 11.0-10.2/20.4 A
Speed 3450 RPM
Frame 56J, NEMA C-face, dripproof, no base
Shaft Threaded, 7/16-20 UNF-2A RH, 5/8 in., 303 stainless steel
Rotation Counterclockwise, viewed from the shaft end
Overall length 13.85 in.
Insulation Class B, 50 C ambient
Thermal protection Automatic
Shipping weight 33.95 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Will the SN1152 fit my Hayward® NorthStar pump?
Century builds the SN1152 as a replacement motor for Hayward® NorthStar pumps and cross references it to Hayward® SP1615Z1BNSC. Check that your old motor label reads 1.5 HP with a 1.60 service factor, which makes it the full rated version.
What is the difference between the SN1152 and the USN1152?
Both are 1.5 HP Century NorthStar motors. The SN1152 is full rated at a 1.60 service factor, 2.4 total HP, and replaces SP1615Z1BNSC; the USN1152 is uprated at a 1.25 service factor, 1.88 total HP, and replaces SP1610Z1MNSC.
How do I know which size motor I need?
Multiply the horsepower on the old motor label by its service factor to get total horsepower, then choose a replacement with equal or slightly higher total horsepower. The Century SN1152 delivers 2.4 total HP.
Can the SN1152 run on 115 V?
Yes. The Century SN1152 is rated 208-230/115 V and draws 11.0 A at 208 V, 10.2 A at 230 V or 20.4 A at 115 V at full load. Wire it to the connection diagram on the nameplate or inside the terminal cover for your supply.
