Century E-Plus B2841V1 1 HP square flange pool pump motorCentury E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP In stock$37999

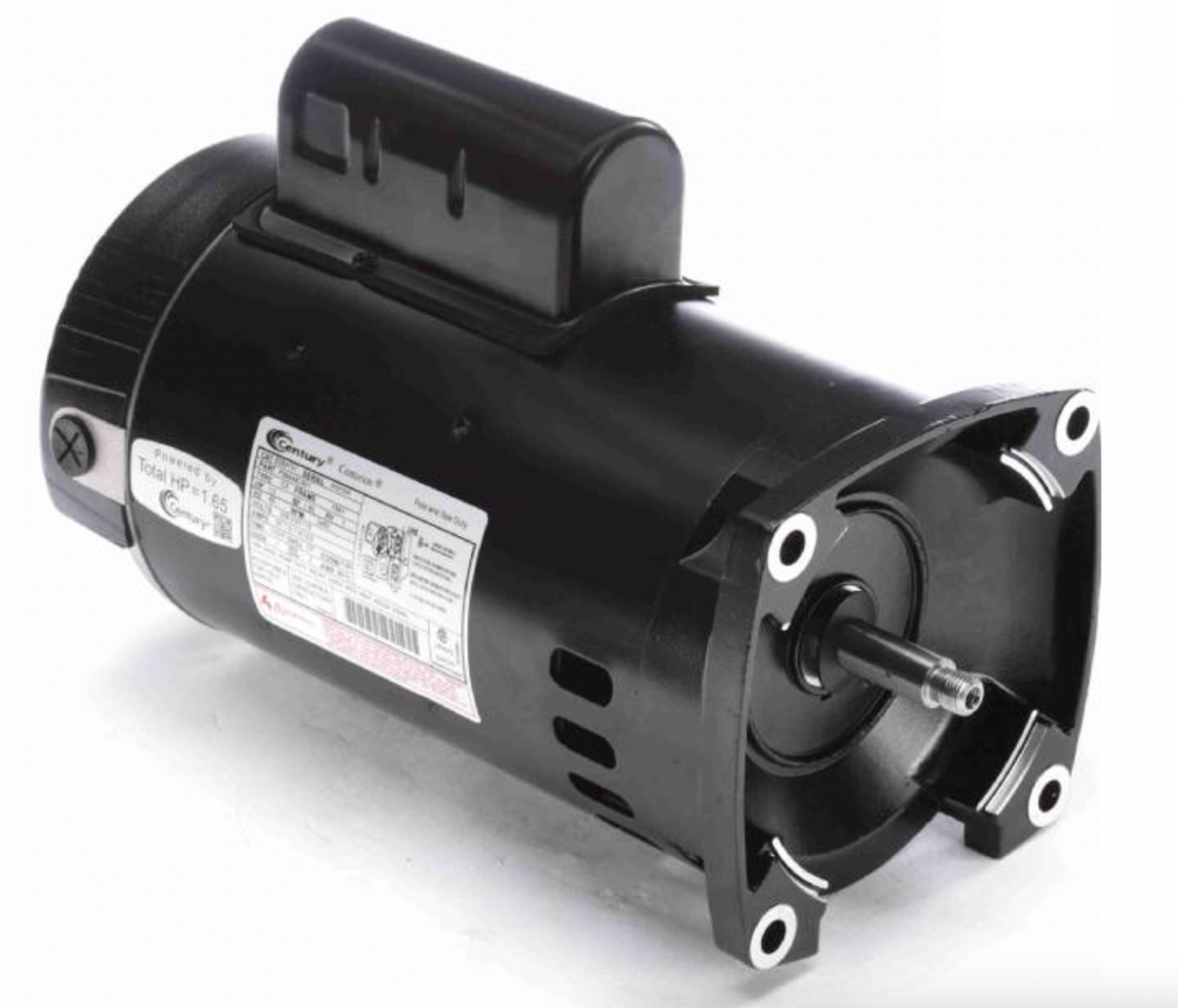

Century E-Plus B2841V1 1 HP square flange pool pump motor
Shop all Century Motors

Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP

Ask a questionMPN B2841V1
$37999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1 HP full-rated Full-rated, so the 1 HP is the working rating and not an up-rated number.
  • 56Y square flange The 56Y frame with the square flange used by a large share of residential pool pumps.
  • Threaded shaft Takes a threaded impeller, the standard on the pumps this motor replaces.
  • 3450 RPM Single speed at the standard pool pump speed.
  • Dual voltage Wired for 115 V or 208-230 V, so it suits either supply at the pad.
  • Century E-Plus Part number B2841V1 from the Century E-Plus line of replacement pool motors.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP, SKU MGT-60-5186. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP
Century Motors

Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP

$37999
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$27599 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$54299 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$32199 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motor Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152$50799 Century SN1152 1.5 HP full rated NorthStar replacement pool pump motor, 56J C-face with threaded shaft Century NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152$53699
Century ST1152 energy efficient full rated 1.5 HP pool pump motor, front view Century Energy Efficient Pump Motor, Full Rated, 1.5 HP, 115/230V, ST1152$41099 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$34499 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$34099 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399 Century ST1072 full rated 0.75 HP pool pump motor, 115/230V Century Pump Motor, Full Rated, 0.75 HP, 115/230v, ST1072$28899 Century Pro HSQ260 square flange pool and spa pump motor, 2.6 HP, 230 V, 48Y frame Century Pro HSQ260 Square Flange Pump Motor, 2.6 HP, 3450 RPM, 230V, 48Y$56099 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Century B2982 1 HP two speed full rated pool pump motor, 230 V, Y56Y frame Century 1 HP Pool Motor, 2 Speed, Energy Efficient Full Rate, 230V, B2982$46099 Century QC1102 1 HP full rated 48Y square flange pool pump motor Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102)$38099

Product details

The Century B2841V1 is a 1 HP square flange pool and spa pump motor from the E-Plus line. It runs 3450 RPM on 115 or 208-230 V, in a 56Y frame with a threaded shaft.

Full-rated, and why that matters

Full-rated means the motor makes its 1 HP as its working rating rather than reaching it through the service factor. Two motors can both say 1 HP on the nameplate and not be the same motor. If the pump you are repairing came with a full-rated motor, replacing it with an up-rated one loses you flow.

The three things to check

Frame, flange and shaft decide whether a replacement motor works. This one is 56Y frame, square flange, threaded shaft. Compare all three against the motor coming off the pump, along with the horsepower and the voltage available at your pad.

Fitting

The threaded shaft takes a threaded impeller, which is the standard arrangement on the pumps this motor is built to replace. Replace the shaft seal whenever the motor comes off, since disturbing the old one is what turns a motor swap into a leak.

Specifications
Brand Century
Manufacturer part number B2841V1
UPC 786674061270
Series E-Plus
Type Pool and spa pump motor
Horsepower 1 HP
Rating Full-rated
Speed 3450 RPM
Voltage 115/208-230 V
Frame 56Y
Flange Square flange
Shaft Threaded
Shipping weight 30 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What does full-rated mean?
A full-rated motor delivers its stated horsepower without leaning on the service factor. An up-rated motor of the same nameplate horsepower does less work, so a full-rated 1 HP is the stronger of the two.
Will this fit my pump?
It is a 56Y frame square flange motor with a threaded shaft. Check those three things against your existing motor, since they are what decide whether it bolts up and takes your impeller.
Can I run it on 115 V?
Yes. It is listed at 115/208-230 V, so it can be wired for either supply.
Is it single speed?
Yes. 3450 RPM, a single speed motor.
Ask your own question
