Century Centurion Pro HSQ165 1.65 THP square flange pool and spa pump motor, 48Y frameCentury 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165 In stock$33999

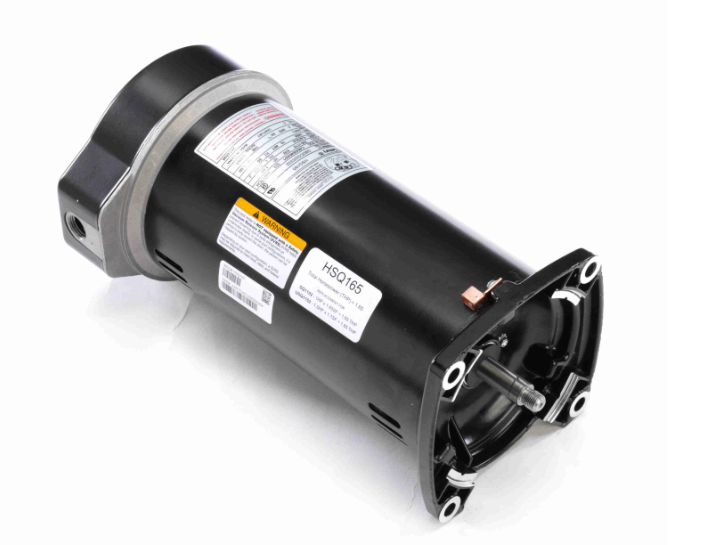

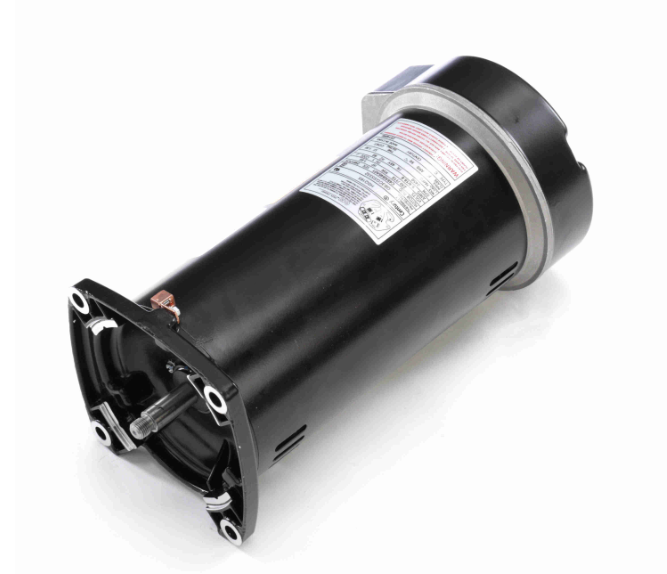

Century Centurion Pro HSQ165 1.65 THP square flange pool and spa pump motor, 48Y frame
Shop all Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

Ask a questionMPN HSQ165
$33999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1.65 THP, 3450 RPM Single speed, two pole motor rated 1.65 horsepower with a 1.0 service factor.
  • Dual voltage Runs on 115 V or 230 V, drawing 18.8 A or 9.4 A, with a voltage change device on board.
  • 48Y square flange, threaded shaft The mount and 1/2 in. threaded shaft used by square flange pool pumps.
  • Sealed bearings both ends Premium 203 bearings, with triple seal protection on the pump end bearing.
  • Easy to wire Open, accessible terminal board and wiring compartment, plus a 7/16 in. wrench flat on the shaft for holding it during impeller work.
  • Not for California This motor is not California Title 20 compliant and cannot ship to California. Century V-Green EVO models are the compliant alternative.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165, SKU AOS-60-2723. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Century Full-Rated Two-Speed Motor, 1.5 HP 1.47 SF 230V (B2983)
Century Motors

Century Full-Rated Two-Speed Motor, 1.5 HP 1.47 SF 230V (B2983)

$57099
Subtotal

Similar products

Other products people compare with this one.

Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$27599 Century UST1072 up rated .75 HP pool pump motor, 115/230 V, 56J frame, front view Century Pump Motor, Up Rated, .75 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft, UST1072$25499 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$27799 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$32399 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$32199 Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V$29199 Century Centurion Pro HST225 2.25 HP pool pump motor, 56J frame threaded shaft Century Centurion Pro HST225 Motor, 2.25 HP, 3450 RPM, 115/208-230 V, 56J, Threaded Shaft$41199 Century B129 threaded shaft pool pump motor, 1.5 HP, 115/230V Century Threaded Shaft Pool Pump Motor, 1.5 HP, 115/230V, B129$42999
Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$34499 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$34099 Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$26999 Hayward SPX1600Z1M threaded shaft motor, 1/2 HP 115 V Hayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M$37799 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century B625 .75 HP threaded shaft motor for the Polaris booster pump, 115/230V Century Threaded .75 HP Polaris P61 Booster Pump Motor 115/230V, B625$30899 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399

Product details

The Century Centurion Pro HSQ165 is a single speed replacement motor for square flange pool and spa pumps. It is rated 1.65 total horsepower at 3450 RPM with a 1.0 service factor, on a 48Y frame with a threaded 303 stainless steel shaft.

Electrical

The motor is single phase, 60 Hz, and runs on either 115 V or 230 V through an on board voltage change device, drawing 18.8 A or 9.4 A. It is a capacitor start, induction run design with automatic thermal protection, class F insulation and an open drip proof enclosure rated for 50 degree C ambient. UL 1081 design, UL recognized and CSA listed.

Built for the pump end

Sealed 203 bearings at both ends, with triple seal protection on the pump end bearing where water is most likely to reach. The terminal board and wiring compartment are open and accessible, and the shaft has a 7/16 in. wrench flat so you can hold it while threading the impeller on or off. Overall length is 14.12 in.

California buyers

The HSQ165 is not California Title 20 compliant and cannot be shipped to California. Century makes CEC compliant V-Green EVO variable speed motors, including the square flange EVQ130, EVQ165 and EVQ225, for that market.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Century
Manufacturer part number HSQ165
UPC 786674069764
Output 1.65 HP (1.2 kW)
Voltage 230/115 V
Current 9.4/18.8 A
Speed 3450 rpm, 1 speed
Frame 48Y
Flange Square
Shaft 1/2 in. thread, 303 stainless steel, 0.625 in. diameter
Service factor 1
Phase and frequency 1 phase, 60 Hz
Enclosure Open drip proof
Thermal protection Automatic
Insulation class F
Overall length 14.12 in
California Not Title 20 compliant, cannot ship to California
Shipping weight 26.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Will it ship to California?
No. The HSQ165 is not California Title 20 compliant and cannot be shipped to California addresses. Century V-Green EVO models such as the EVQ165 meet the CEC standard.
Is it 115 V or 230 V?
Both. It has a voltage change device and runs on either supply, drawing 18.8 A at 115 V or 9.4 A at 230 V. Set the voltage to match your circuit before wiring.
What does 1.65 THP mean?
Total horsepower is the rated horsepower multiplied by the service factor. This motor is rated 1.65 HP with a 1.0 service factor, so it delivers 1.65 THP. Match THP, frame and flange to the motor you are replacing.
How do I hold the shaft to remove the impeller?
The shaft end has a flat for a 7/16 in. wrench. Hold it there while unscrewing the impeller from the threaded shaft.
Ask your own question
