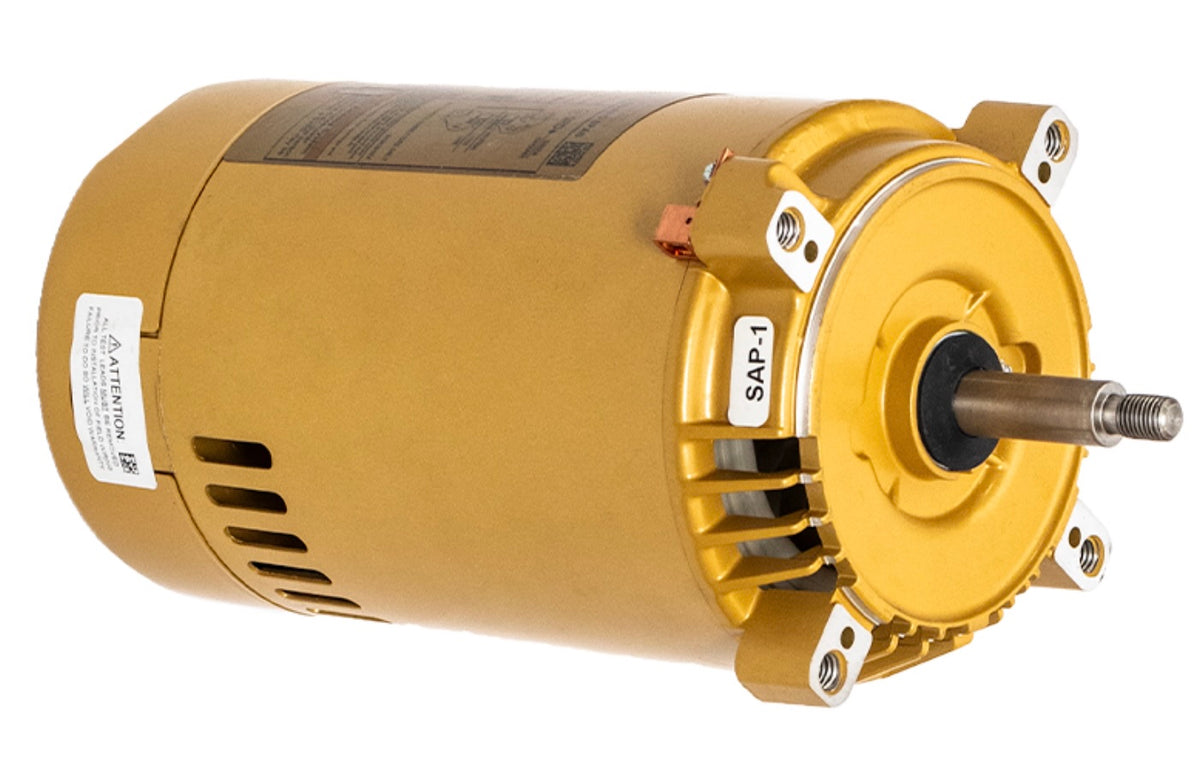

Hayward SPX1600Z1M threaded shaft motor, 1/2 HP 115 VHayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M In stock$37799
Hayward SPX1600Z1M threaded shaft motor, 1/2 HP 115 V
Shop all Hayward

Hayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M

Ask a questionMPN SPX1600Z1M
$37799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory motor SPX1600Z1M, matched to the pumps it serves.
  • Threaded shaft The threaded shaft type, where the impeller screws directly onto the shaft.
  • Half horsepower at 115 volts Rated 0.5 HP, 115 V, 60 Hz.
  • Super Pump fit Serves the Super Pump SP1600X and SP2600X series.
  • Max-Flo fit Also serves the Max-Flo SP1800X and SP2800X series.
  • Check the shaft before ordering Hayward has used both threaded and keyed shafts, so confirm how your impeller attaches.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M, SKU HAY-101-2084. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M
Hayward

Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M

$37799
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M
Hayward

1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M

$39199
Hayward Super Pump Strainer Cover Gasket, SPX1600S
Hayward

Super Pump Strainer Cover Gasket, SPX1600S

$2399
Hayward Slinger for Motor Shaft, SPX0125F
Hayward

Slinger for Motor Shaft, SPX0125F

$1399
Hayward 2 HP Super Pump Drive Train Upgrade Kit, SPX2615CKIT
Hayward

2 HP Super Pump Drive Train Upgrade Kit, SPX2615CKIT

$22099
Hayward Super Pump Basket (OEM), SPX1600M
Hayward

Super Pump Basket (OEM), SPX1600M

$2999
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX1605Z1M MaxRate 3/4 HP threaded shaft pool pump motor Hayward MaxRate Motor for Super Pump SP1600X Pool Pumps, 3/4 HP, SPX1605Z1M$35699 Hayward SPX2603Z1VSPE Super Pump variable speed power end assembly Hayward Super Pump Variable Speed Power End Assembly, SPX2603Z1VSPE$1,21799

Product details

The Hayward SPX1600Z1M is the 1/2 HP threaded shaft motor for Super Pump and Max-Flo pumps, rated 0.5 HP at 115 V, 60 Hz. It is the genuine Hayward part.

Which pumps it serves

Hayward lists it for the Super Pump SP1600X and SP2600X series and for the Max-Flo SP1800X and SP2800X series. Those pumps use a threaded shaft, meaning the impeller screws directly onto the motor shaft rather than being keyed to it.

Check the shaft type

Hayward has used both threaded and keyed shafts across its pump range, and the two are not interchangeable. Look at how your impeller attaches before ordering, and read the horsepower and voltage off the motor nameplate to confirm the rating matches.

Fitting

Replacing a motor means taking the impeller off, which disturbs the shaft seal. Fit a new seal at the same time. A disturbed seal rarely reseats, and discovering that after the pump is back together means doing the whole job twice.

Specifications
Brand Hayward
Manufacturer part number SPX1600Z1M
UPC 0610377040136
Type Threaded shaft motor
Horsepower 0.5 HP
Voltage 115 V
Frequency 60 Hz
Shaft Threaded
Fits Hayward Super Pump SP1600X and SP2600X series, Max-Flo SP1800X and SP2800X series
Shipping weight 15.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What are the electrical ratings?
0.5 HP, 115 V, 60 Hz.
Which pumps does it fit?
Hayward Super Pump SP1600X and SP2600X series, and Max-Flo SP1800X and SP2800X series.
Is this a threaded shaft or a keyed shaft motor?
Threaded. The impeller screws onto the shaft rather than being keyed to it.
Should I replace the shaft seal at the same time?
Plan on it. Fitting a motor means taking the impeller off, and a shaft seal that has been disturbed rarely reseats reliably.
