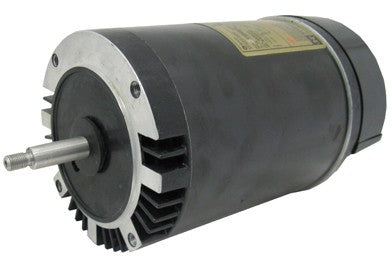

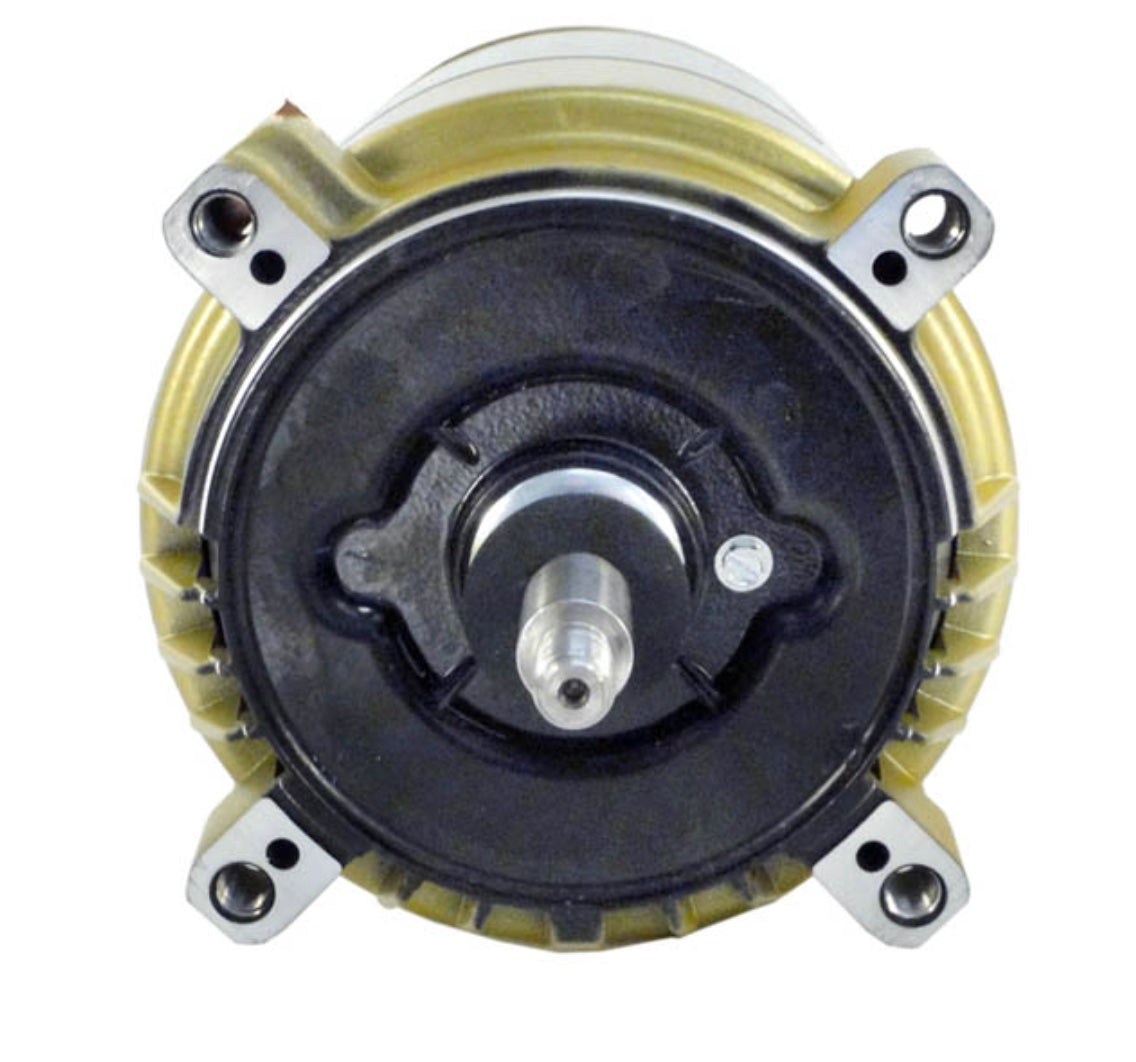

Hayward SPX1607Z1M 1 HP threaded shaft single phase pump motor, 115/230VHayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M In stock$40399
Hayward SPX1607Z1M 1 HP threaded shaft single phase pump motor, 115/230V
Shop all Hayward

Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M

Ask a questionMPN SPX1607Z1M
$40399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits three Hayward pumps Super Pump, Max-Flo and Super II.
  • 1 HP, threaded shaft Single phase, 60 cycle, dual voltage 115/230V.
  • Century built Manufactured by Century, a Regal brand.
  • Not for California Does not meet CEC Title 20 pool motor efficiency rules and cannot be sold or installed there.
  • Possible substitution Under DOE efficiency regulations the compatible SP26110Z1MEG may ship in its place.
  • Rebuild kit not included Go-Kit seals and gaskets for each pump family are sold separately.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M, SKU HAY-101-9934. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M
Hayward

1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M

$40399
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1799
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward Super Pump Strainer Cover Gasket, SPX1600S
Hayward

Super Pump Strainer Cover Gasket, SPX1600S

$2499
Hayward Slinger for Motor Shaft, SPX0125F
Hayward

Slinger for Motor Shaft, SPX0125F

$1399
Hayward 2 HP Super Pump Drive Train Upgrade Kit, SPX2615CKIT
Hayward

2 HP Super Pump Drive Train Upgrade Kit, SPX2615CKIT

$22799
Hayward Super Pump Basket (OEM), SPX1600M
Hayward

Super Pump Basket (OEM), SPX1600M

$3099
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX1600Z1M threaded shaft motor, 1/2 HP 115 V Hayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M$38999 Hayward SPX1605Z1M MaxRate 3/4 HP threaded shaft pool pump motor Hayward MaxRate Motor for Super Pump SP1600X Pool Pumps, 3/4 HP, SPX1605Z1M$36799 Hayward SPX2603Z1VSPE Super Pump variable speed power end assembly Hayward Super Pump Variable Speed Power End Assembly, SPX2603Z1VSPE$1,25499

Product details

The Hayward SPX1607Z1M is a 1 HP single phase replacement motor with a threaded shaft, wired for 115 or 230 volts at 60 cycles. It fits the Hayward Max-Flo, Super Pump and Super II.

What to know before ordering

The motor is built by Century, a Regal brand. Because of DOE energy efficiency regulations it may be replaced with the compatible SP26110Z1MEG, so do not be surprised if that part number arrives instead.

California

This motor does not meet the California Energy Commission Title 20 efficiency standard for pool pumps and replacement motors. It cannot be sold or installed in California. Century makes CEC compliant alternatives in its V-Green EVO range, the EVC130, EVC165, EVC225, EVQ130, EVQ165 and EVQ225.

Finish the job

A motor swap opens the pump wet end, so plan on a new shaft seal and gaskets. Rebuild kits for the Super Pump, Max-Flo and Super II are sold separately.

Specifications
Brand Hayward
Manufacturer part number SPX1607Z1M
UPC 610377040280
Horsepower 1 HP
Shaft Threaded
Phase Single phase
Frequency 60 cycle
Voltage 115/230V
Fits Hayward Max-Flo, Super Pump, Super II
Motor manufacturer Century, a Regal brand
California Not CEC compliant, cannot be sold or installed in California
May be substituted by SP26110Z1MEG
Shipping weight 21.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this motor fit?
The Hayward Super Pump, Max-Flo and Super II.
Can I buy this in California?
No. The motor does not meet the California Energy Commission Title 20 efficiency standard for pool pump motors, so it cannot be sold or installed in California.
Why might I receive an SP26110Z1MEG instead?
DOE energy efficiency regulations apply to replacement motors. Hayward may substitute the compatible SP26110Z1MEG for this part.
Is it 115 or 230 volt?
Both. It is a dual voltage motor rated 115/230V, single phase, 60 cycle.
