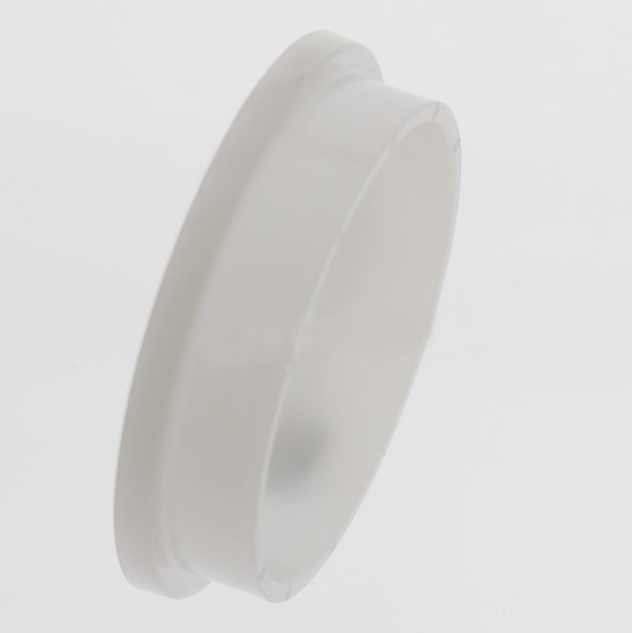

Hayward SPX3021R impeller ring, 2-3/4 in. OD, for 3/4 to 3 HP pumpsHayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R In stock$1799
Hayward SPX3021R impeller ring, 2-3/4 in. OD, for 3/4 to 3 HP pumps
Shop all Hayward

Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

Ask a questionMPN SPX3021R
$1799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Part number SPX3021R, with SP3021R molded on the part.
  • 3/4 HP to 3 HP The Max-Rate impeller ring used across this motor range.
  • Measure to confirm 2-3/4 in. outside diameter and 2-3/16 in. inside diameter.
  • Fits three pump families Super II SP3000 and SP3000X, Northstar from 1998 onward and TriStar SP3200 and SP3200EE.
  • Plastic A light molded ring that seats in the diffuser around the impeller eye.
  • UPC 610377041393.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R, SKU HAY-101-6391. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1799
Hayward Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M
Hayward

Genuine OEM Max Rate Threaded Shaft Motor 2 HP, SPX1615Z1M

$55799
Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$6199
Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M
Hayward

1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M

$39199
Hayward 2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE
Hayward

2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE

$1,70299
Hayward TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A
Hayward

TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A

$35199
Hayward Housing O-Ring SPX3200T
Hayward

Housing O-Ring SPX3200T

$2799
Subtotal

Similar products

Other products people compare with this one.

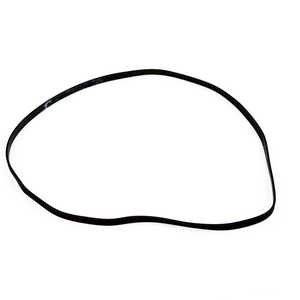

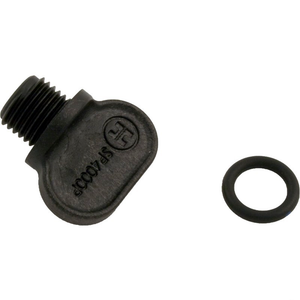

Hayward SPX3005R impeller ring, 2-3/8 in. outside diameter, for Super II pumps Hayward 0.75 HP to 1.5 HP Impeller Ring, 2-3/8 in. OD, SPX3005R$1699 Hayward SPX4000Z1 union o-ring, 2-3/8 inch inside diameter, for TriStar and Northstar pumps Hayward O-Ring, 2-3/8" ID, SPX4000Z1$2199 Hayward SPX3000S o-ring for the trap cover and strainer pot Hayward O-Ring for Trap Cover Strainer Pot, SPX3000S$2499 Hayward SPX3200Z1 impeller screw for TriStar pool pumps Hayward TriStar Impeller Screw, SPX3200Z1$1799 Hayward SPX0125F plastic motor shaft slinger for Super and Super II pumps Hayward Slinger for Motor Shaft, SPX0125F$1499 Hayward SPX1700FG drain plug with gasket for pool pumps made after 1991 Hayward Drain Plug with Gasket for Select Hayward Equipment, SPX1700FG$1099 Hayward SPX4000FG drain plug with gasket for pool pumps Hayward Drain Plug with Gasket, SPX4000FG$1199 Hayward SPX1600R Super Pump and Super II diffuser gasket o-ring Hayward Super Pump/Super II Diffuser Gasket, SPX1600R$1099 Hayward SPX0125Z44 motor cap screws, four per pack Hayward Motor Cap Screw (4 per Pack), SPX0125Z44$1899 Hayward SPX3000T housing gasket for 3000 series pumps Hayward Housing Gasket, 3000 Series, SPX3000T$2299

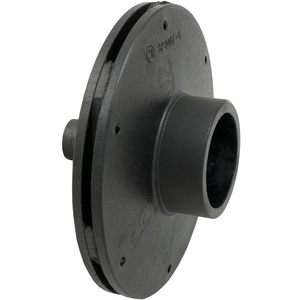

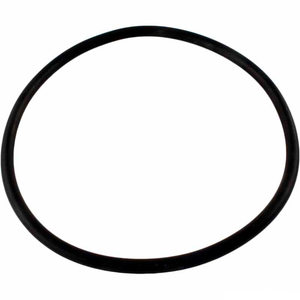

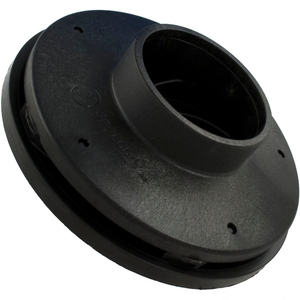

SuperPro B-207 generic strainer basket for Hayward Super II pool pumps SuperPro Strainer Basket Compatible with Hayward® Super II™, B-207$1099 CMP 27182-207-000 heavy duty pump basket for Hayward Super II pumps CMP Heavy Duty Pump Basket Compatible with Hayward® Super II™, 27182-207-000$2099 Hayward SPX3200Z8 diffuser screws, two per pack, for TriStar pumps Hayward Diffuser Screws for TriStar Pumps, 2 per Pack, SPX3200Z8$1999 Hayward SPX1600Z4 housing cap screw, 3/8-16 x 2 Hayward SPX1600Z4 Housing Cap Screw$1199 Hayward SPX1600Z52 mounting foot cap screws, set of two Hayward Mounting Foot Cap Screw, Set of 2, SPX1600Z52$1199 Hayward SPX3200S black rubber strainer cover o-ring for TriStar pumps Hayward TriStar Strainer Cover O-Ring, SPX3200S$2799 Hayward SPX2605C impeller for Super Pump and Super II pumps, stamped SP2605-C Hayward Impeller, 3/4 HP Max Rate, 1/2 HP Full Rate, SPX2605C$4799 Hayward SPX3210C TriStar 1 HP impeller with screw Hayward TriStar 1 HP Impeller with Screw, SPX3210C$5199 Hayward SPX3007C Super II pump impeller, 3/4 HP full rated Hayward Super II Impeller, 3/4 HP Full Rated, After 1987, SPX3007C$5299 Hayward SPX3215C TriStar 1.5 HP impeller with impeller screw Hayward 1.5HP Impeller with Screw, TriStar, SPX3215C$5699

Product details

The Hayward SPX3021R is the Max-Rate impeller ring for 3/4 HP to 3 HP pumps. It is a plastic ring, 2-3/4 in. outside diameter and 2-3/16 in. inside diameter, with SP3021R molded on the part.

Fit

It is used on the Super II SP3000 and SP3000X, the Northstar in both the 1998 to 2007 and 2008 to current designs, and the TriStar SP3200 and SP3200EE. Measure the old ring against the dimensions above to be sure.

Why it matters

The impeller ring is the wear surface at the impeller eye. As it wears, the clearance opens up, water recirculates inside the pump and flow falls off. It is a cheap part to replace whenever the pump is apart for a seal or an impeller.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

19 Key 19 on the Hayward Super II PumpFor the SP3015X20 (2 HP), SP3020X25 (2-1/2 HP), SP3025X30 (3 HP).See it on the diagramAll Hayward Super II Pump Parts 44 parts and the drawing11 Key 11 on the Hayward TriStar PumpFits every model in the drawing.See it on the diagramAll Hayward TriStar Pump Parts 27 parts and the drawing
Specifications
Brand Hayward
Manufacturer part number SPX3021R
UPC 610377041393
Type Impeller ring
Motor range 3/4 HP to 3 HP
Outside diameter 2-3/4 in.
Inside diameter 2-3/16 in.
Material Plastic
Marking SP3021R molded on part
Fits Hayward Super II (SP3000, SP3000X), Northstar (1998 to 2007 and 2008 to current), TriStar (SP3200, SP3200EE)
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which Hayward pumps use this ring?
The Super II SP3000 and SP3000X, the Northstar in both the 1998 to 2007 and 2008 to current versions, and the TriStar SP3200 and SP3200EE, in the 3/4 HP to 3 HP range.
How do I confirm it is the right size?
Measure the old ring. This one is 2-3/4 in. across the outside and 2-3/16 in. across the inside, and SP3021R is molded on the part.
What does the impeller ring do?
It is the wear ring at the impeller eye. When it wears, water recirculates inside the pump and flow drops, so it is worth replacing whenever the diffuser or impeller is out.
Is it plastic or metal?
Plastic, as the original.
