Hayward SPX3200UNKIT union connector kit with nut, connector and gasketHayward Union Connector Kit, SPX3200UNKIT In stock$5499

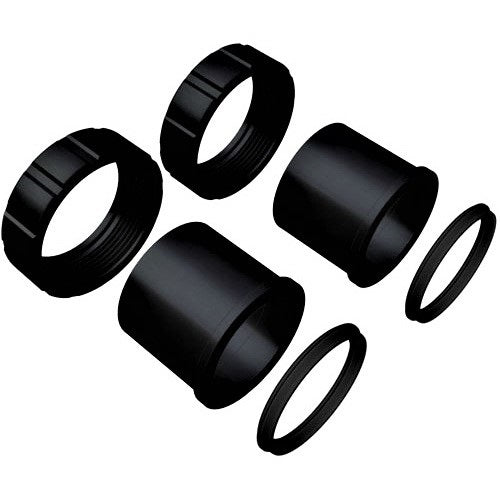

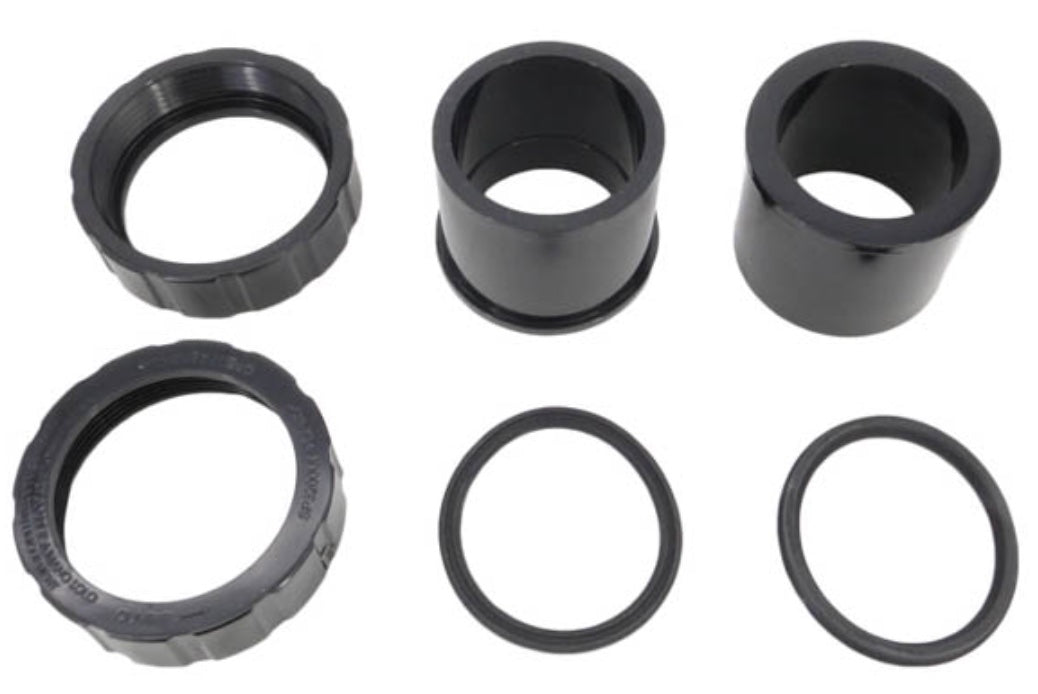

Hayward SPX3200UNKIT union connector kit with nut, connector and gasket
Shop all Hayward

Hayward Union Connector Kit, SPX3200UNKIT

Ask a questionMPN SPX3200UNKIT
$5499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three pieces union nut, connector and gasket, one complete union.
  • TriStar, EcoStar, NorthStar the union for TriStar SP3200EE, SP3200X, SP3600 and SP3200VSP, TriStar XE, VS 900 and 950, EcoStar SP3400VSP and EcoStar C, and NorthStar SP4000 and SP4000X from 2008 on.
  • SwimClear filters too fits SwimClear C2030, C3030, C4030, C5030 and C100S, C150S, C200S, plus HCF commercial filters.
  • Heaters and heat pumps fits H-Series heaters and HeatPro 4T, Summit, EasyTemp and HeatMaster heat pumps.
  • Genuine Hayward part SPX3200UNKIT.
  • Gasket alone available the T-seal union gasket is sold separately in a pair if only the seal has failed.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Union Connector Kit, SPX3200UNKIT, SKU HAY-101-3206. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$5499
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1799
Hayward 2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE
Hayward

2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE

$1,74999
Hayward TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A
Hayward

TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A

$35699
Hayward Housing O-Ring SPX3200T
Hayward

Housing O-Ring SPX3200T

$2899
Hayward SPX3200SA TriStar Shaft Seal Assembly
Hayward

SPX3200SA TriStar Shaft Seal Assembly

$4099
Hayward TriStar Strainer Cover O-Ring, SPX3200S
Hayward

TriStar Strainer Cover O-Ring, SPX3200S

$2499
Subtotal

Similar products

Other products people compare with this one.

Hayward SPXHKIT100 H-Kit quick pump repair kit Hayward H-Kit Quick Pump Repair, SPXHKIT100$4899 Hayward SPX3200Z211 TriStar housing insert and seal plate spacer kit Hayward TriStar Housing Insert & Seal Plate Spacer Kit, SPX3200Z211$3799 Hayward SPX3200E TriStar pump seal plate Hayward TriStar Seal Plate, SPX3200E$7399 Hayward SPX3200B3 TriStar pump diffuser Hayward TriStar Diffuser, SPX3200B3$4999 Hayward SPX3220C 2 HP TriStar impeller with screw Hayward TriStar 2 HP Impeller with Screw, SPX3220C$7699 Hayward SPX3210C TriStar 1 HP impeller with screw Hayward TriStar 1 HP Impeller with Screw, SPX3210C$5399 Hayward SPX3200M strainer basket for TriStar SP3200 and SP3200EE pumps Hayward Strainer Basket for TriStar Pumps, SPX3200M$3199 Hayward SPX3215C TriStar 1.5 HP impeller with impeller screw Hayward 1.5HP Impeller with Screw, TriStar, SPX3215C$6199 Hayward SPX3207CM TriStar 3/4 HP impeller with screw Hayward TriStar 3/4 HP Impeller with Screw, SPX3207CM$6099 Hayward SPX3200UG union gasket T-seal for Northstar and TriStar pump unions Hayward Union Gasket (T-seal), Qty 2, SPX3200UG$2399
Hayward SPX3200DLS TriStar strainer cover kit with lock ring and O-ring Hayward TriStar Strainer Cover Kit, SPX3200DLS$11299 Hayward SPX4000Z1 union o-ring, 2-3/8 inch inside diameter, for TriStar and Northstar pumps Hayward O-Ring, 2-3/8" ID, SPX4000Z1$2299 Hayward SPX3200Z8 diffuser screws, two per pack, for TriStar pumps Hayward Diffuser Screws for TriStar Pumps, 2 per Pack, SPX3200Z8$2099 Hayward SPX4000FG drain plug with gasket for pool pumps Hayward Drain Plug with Gasket, SPX4000FG$1499 Hayward SPX3200Z1 impeller screw for TriStar pool pumps Hayward TriStar Impeller Screw, SPX3200Z1$1499 Hayward SPX3207X10Z1PE TriStar power end, 1 HP UR Hayward 1 HP UR TriStar Power End, SPX3207X10Z1PE$52599 Hayward SPX3210X15Z1PE 1.5 HP UR TriStar pump power end Hayward 1.5 HP UR TriStar Power End, SPX3210X15Z1PE$57399 Hayward SPX3202Z1VSPE TriStar VS 1.85 power end motor unit assembly, front view Hayward TriStar VS 1.85 Power End Motor Unit Assembly (Non-SVRS), SPX3202Z1VSPE$1,44399

Product details

The Hayward SPX3200UNKIT is a complete union: the nut, the connector and the gasket, in one kit. It is the genuine Hayward part and it is shared across a wide range of Hayward equipment, which makes it one of the more useful spares to keep on the truck.

Pumps

TriStar SP3200EE, SP3200X and SP3600, TriStar VS SP3200VSP and VS 900 and 950, TriStar XE, EcoStar SP3400VSP and EcoStar C commercial pumps, and NorthStar SP4000 and SP4000X pumps built 2008 and later.

Filters, heaters and heat pumps

The same union is used on SwimClear cartridge filters C2030, C3030, C4030 and C5030 and C100S, C150S and C200S, on HCF commercial filters, on Universal H-Series heaters H150FD through H400FD, and on HeatPro 4T, Summit, EasyTemp and HeatMaster heat pumps.

One kit does one union. If only the gasket has gone, the T-seal union gasket is sold separately in a pair.

Specifications
Brand Hayward
Manufacturer part number SPX3200UNKIT
UPC 610377912068
Includes Nut, connector, gasket
Fits pumps Hayward TriStar SP3200EE, SP3200X, SP3600, TriStar VS SP3200VSP, TriStar VS 900 and 950, TriStar XE, EcoStar SP3400VSP, EcoStar C, NorthStar SP4000 and SP4000X (2008 and later)
Fits filters Hayward SwimClear C2030, C3030, C4030, C5030, C100S, C150S, C200S, HCF commercial filters
Fits heaters Hayward H-Series heaters H150FD, H200FD, H250FD, H300FD, H350FD, H400FD
Fits heat pumps HeatPro HP21404T, HP21004T, HP21254T, HP31154T, HP31204T; Summit SUM25TA, SUM3TA, SUM4TA, SUM5TA, SUM8TA; EasyTemp HCB50TA, HCB65TA, HCB80TA, HCB110TA, HCB125TA; HeatMaster HML50TA, HML65TA, HML80TA, HML110TA, HML125TA
Shipping weight 0.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What is in the kit?
One union nut, one connector and one gasket, enough for one union. A pump has a suction and a discharge union, so order two kits if you are replacing both.
Does it fit the TriStar VS?
Yes. It fits TriStar VS SP3200VSP and VS 900 and 950, as well as TriStar SP3200EE, SP3200X, SP3600 and TriStar XE.
Will it fit my NorthStar?
NorthStar SP4000 and SP4000X pumps made in 2008 and later. Check the manufacture date on an older NorthStar before ordering.
I only need the gasket. Do I have to buy the kit?
No. The union gasket, a T-seal, is sold separately as a pair.
Ask your own question
