Hayward SPX3210C TriStar 1 HP impeller with screwHayward TriStar 1 HP Impeller with Screw, SPX3210C In stock$5199

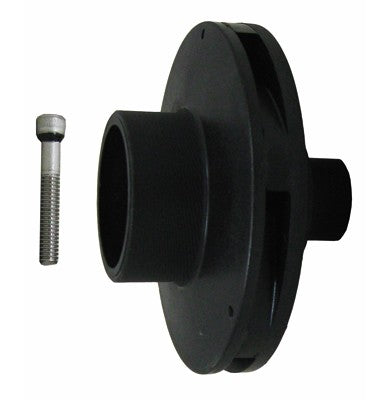

Hayward SPX3210C TriStar 1 HP impeller with screw
Shop all Hayward

Hayward TriStar 1 HP Impeller with Screw, SPX3210C

Ask a questionMPN SPX3210C
$5199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part The factory SPX3210C impeller, not an aftermarket copy.
  • Screw included The impeller screw comes in the kit, so you are not hunting for the fastener at reassembly.
  • 1 HP, 1.85 THP Rated 1 horsepower with a total horsepower of 1.85, so match it to the rating on your motor.
  • Fits TriStar SP3202VSP and SP3202VSPDN Listed for those two variable speed TriStar models, and Hayward notes it may fit other Hayward pumps.
  • Restores lost flow A worn or cracked impeller starves the pump, and no amount of basket cleaning brings the flow back.
  • Sized by horsepower Impellers are horsepower specific, so confirm the 1 HP rating before ordering.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward TriStar 1 HP Impeller with Screw, SPX3210C, SKU HAY-101-3210. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward TriStar 1 HP Impeller with Screw, SPX3210C
Hayward

TriStar 1 HP Impeller with Screw, SPX3210C

$5199
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1699
Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$6199
Hayward 2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE
Hayward

2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE

$1,69799
Hayward TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A
Hayward

TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A

$35199
Hayward Housing O-Ring SPX3200T
Hayward

Housing O-Ring SPX3200T

$2799
Hayward SPX3200SA TriStar Shaft Seal Assembly
Hayward

SPX3200SA TriStar Shaft Seal Assembly

$3999
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX3220C 2 HP TriStar impeller with screw Hayward TriStar 2 HP Impeller with Screw, SPX3220C$7499 Hayward SPX3215C TriStar 1.5 HP impeller with impeller screw Hayward 1.5HP Impeller with Screw, TriStar, SPX3215C$5999 Hayward SPX3207CM TriStar 3/4 HP impeller with screw Hayward TriStar 3/4 HP Impeller with Screw, SPX3207CM$5899 Hayward SPX3200E TriStar pump seal plate Hayward TriStar Seal Plate, SPX3200E$7199 Hayward SPX3200B3 TriStar pump diffuser Hayward TriStar Diffuser, SPX3200B3$4999 Hayward SPX3200Z211 TriStar housing insert and seal plate spacer kit Hayward TriStar Housing Insert & Seal Plate Spacer Kit, SPX3200Z211$3699 Hayward SPX3200M strainer basket for TriStar SP3200 and SP3200EE pumps Hayward Strainer Basket for TriStar Pumps, SPX3200M$3099 Hayward SPXHKIT100 H-Kit quick pump repair kit Hayward H-Kit Quick Pump Repair, SPXHKIT100$4699 Hayward SPX3200Z1 impeller screw for TriStar pool pumps Hayward TriStar Impeller Screw, SPX3200Z1$1499 Hayward SPX3200S black rubber strainer cover o-ring for TriStar pumps Hayward TriStar Strainer Cover O-Ring, SPX3200S$2499
Hayward SPX3200Z8 diffuser screws, two per pack, for TriStar pumps Hayward Diffuser Screws for TriStar Pumps, 2 per Pack, SPX3200Z8$1999 Hayward SPX4000FG drain plug with gasket for pool pumps Hayward Drain Plug with Gasket, SPX4000FG$1499 Hayward SPX3200DLS TriStar strainer cover kit with lock ring and O-ring Hayward TriStar Strainer Cover Kit, SPX3200DLS$10999 Hayward SPX3207X10Z1PE TriStar power end, 1 HP UR Hayward 1 HP UR TriStar Power End, SPX3207X10Z1PE$51099 Hayward SPX3210X15Z1PE 1.5 HP UR TriStar pump power end Hayward 1.5 HP UR TriStar Power End, SPX3210X15Z1PE$55699 Hayward SPX3202Z1VSPE TriStar VS 1.85 power end motor unit assembly, front view Hayward TriStar VS 1.85 Power End Motor Unit Assembly (Non-SVRS), SPX3202Z1VSPE$1,39999 Hayward SPX3200UG union gasket T-seal for Northstar and TriStar pump unions Hayward Union Gasket (T-seal), Qty 2, SPX3200UG$2299 Hayward SPX4000Z1 union o-ring, 2-3/8 inch inside diameter, for TriStar and Northstar pumps Hayward O-Ring, 2-3/8" ID, SPX4000Z1$2299

Product details

The Hayward SPX3210C is the 1 horsepower impeller for TriStar pumps, rated 1.85 total horsepower. It ships as a kit with the impeller screw included.

What the impeller does

The impeller is the spinning part that actually moves the water. It sits behind the seal plate on the motor shaft, and everything downstream of the pump depends on it: filter pressure, heater flow, skimmer pull and the reach of your return jets. When it wears, clogs with debris or cracks, flow drops away and no amount of basket cleaning recovers it.

Fitment

This impeller is listed for the Hayward TriStar SP3202VSP and SP3202VSPDN. Hayward notes it may fit other Hayward model pumps. Impellers are horsepower specific, so confirm the 1 HP and 1.85 THP rating against the plate on your motor rather than going by pump family alone.

While you are in there

The impeller sits directly behind the shaft seal. If you have the wet end open far enough to change the impeller, it is worth replacing the shaft seal and lubricating the housing o-ring at the same time.

Specifications
Brand Hayward
Manufacturer part number SPX3210C
UPC 610377912105
Part type Pool Pump Part
Type Impeller with screw
Horsepower 1 HP
Total horsepower 1.85 THP
Fits Hayward TriStar SP3202VSP and SP3202VSPDN; may fit other Hayward model pumps
Included Impeller and impeller screw
Shipping weight 0.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Does the impeller screw come with it?
Yes. SPX3210C is supplied as the impeller plus the screw that retains it.
Which pumps does it fit?
It is listed for the Hayward TriStar SP3202VSP and SP3202VSPDN. Hayward notes it may fit other Hayward model pumps, so check your impeller against the part number before ordering.
What horsepower is this impeller?
1 HP, with a total horsepower rating of 1.85 THP. Impellers are matched to the motor rating, so a mismatch will not perform correctly.
How do I know the impeller is the problem?
Weak flow that does not improve after you clear the strainer basket and the skimmer, especially with no leak on the suction side, usually points at a worn, clogged or cracked impeller.
Ask your own question
