Hayward SPX3200B3 TriStar pump diffuserHayward TriStar Diffuser, SPX3200B3 In stock$4999

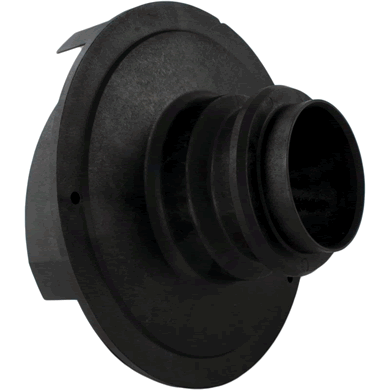

Hayward SPX3200B3 TriStar pump diffuser
Shop all Hayward

Hayward TriStar Diffuser, SPX3200B3

Ask a questionMPN SPX3200B3
$4999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory part SPX3200B3.
  • TriStar fitment Listed for the Hayward TriStar pump models SP3200 and SP3200EE.
  • Shapes the flow off the impeller The diffuser is what turns impeller speed into pressure at the pump discharge.
  • A quiet cause of lost flow A cracked or worn diffuser lets water recirculate inside the pump, so the motor runs normally while the system loses performance.
  • Diffuser only The screws that hold it and the sealing O-ring are separate Hayward parts.
  • Worth doing with a rebuild If the pump is already open for a seal, the diffuser is a sensible thing to inspect.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward TriStar Diffuser, SPX3200B3, SKU HAY-101-3207. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward TriStar Diffuser, SPX3200B3
Hayward

TriStar Diffuser, SPX3200B3

$4999
Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R
Hayward

3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R

$1799
Hayward Union Connector Kit, SPX3200UNKIT
Hayward

Union Connector Kit, SPX3200UNKIT

$5499
Hayward 2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE
Hayward

2.7 HP TriStar VS G3 Pump Power End Assembly, SPX3206Z1VSPE

$1,74999
Hayward TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A
Hayward

TriStar Pump Strainer Housing 2" x 2" with Drain Plugs, Threaded, SPX3200A

$35699
Hayward Housing O-Ring SPX3200T
Hayward

Housing O-Ring SPX3200T

$2899
Hayward SPX3200SA TriStar Shaft Seal Assembly
Hayward

SPX3200SA TriStar Shaft Seal Assembly

$4099
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX3200E TriStar pump seal plate Hayward TriStar Seal Plate, SPX3200E$7399 Hayward SPX3200Z211 TriStar housing insert and seal plate spacer kit Hayward TriStar Housing Insert & Seal Plate Spacer Kit, SPX3200Z211$3799 Hayward SPX3210C TriStar 1 HP impeller with screw Hayward TriStar 1 HP Impeller with Screw, SPX3210C$5399 Hayward SPX3200M strainer basket for TriStar SP3200 and SP3200EE pumps Hayward Strainer Basket for TriStar Pumps, SPX3200M$3199 Hayward SPX3215C TriStar 1.5 HP impeller with impeller screw Hayward 1.5HP Impeller with Screw, TriStar, SPX3215C$6199 Hayward SPX3207CM TriStar 3/4 HP impeller with screw Hayward TriStar 3/4 HP Impeller with Screw, SPX3207CM$6099 Hayward SPXHKIT100 H-Kit quick pump repair kit Hayward H-Kit Quick Pump Repair, SPXHKIT100$4899 Hayward SPX3200Z8 diffuser screws, two per pack, for TriStar pumps Hayward Diffuser Screws for TriStar Pumps, 2 per Pack, SPX3200Z8$2099 Hayward SPX3200S black rubber strainer cover o-ring for TriStar pumps Hayward TriStar Strainer Cover O-Ring, SPX3200S$2499 Hayward SPX3220C 2 HP TriStar impeller with screw Hayward TriStar 2 HP Impeller with Screw, SPX3220C$7699
Hayward SPX3200Z1 impeller screw for TriStar pool pumps Hayward TriStar Impeller Screw, SPX3200Z1$1499 Hayward SPX3200DLS TriStar strainer cover kit with lock ring and O-ring Hayward TriStar Strainer Cover Kit, SPX3200DLS$11299 Hayward SPX3207X10Z1PE TriStar power end, 1 HP UR Hayward 1 HP UR TriStar Power End, SPX3207X10Z1PE$52599 Hayward SPX3210X15Z1PE 1.5 HP UR TriStar pump power end Hayward 1.5 HP UR TriStar Power End, SPX3210X15Z1PE$57399 Hayward SPX3202Z1VSPE TriStar VS 1.85 power end motor unit assembly, front view Hayward TriStar VS 1.85 Power End Motor Unit Assembly (Non-SVRS), SPX3202Z1VSPE$1,44399 Hayward SPX3200UG union gasket T-seal for Northstar and TriStar pump unions Hayward Union Gasket (T-seal), Qty 2, SPX3200UG$2399 Hayward SPX4000Z1 union o-ring, 2-3/8 inch inside diameter, for TriStar and Northstar pumps Hayward O-Ring, 2-3/8" ID, SPX4000Z1$2299 Hayward SPX4000FG drain plug with gasket for pool pumps Hayward Drain Plug with Gasket, SPX4000FG$1499

Product details

The Hayward SPX3200B3 is the diffuser for the TriStar pump, listed for the SP3200 and SP3200EE models. It is the genuine Hayward part.

What the diffuser does

It sits around the impeller and converts the speed of the water leaving it into pressure at the discharge. That conversion is where a centrifugal pump gets most of its head, so the condition of the diffuser has a direct effect on how the whole system performs.

Symptoms of a worn one

A pump that sounds normal and pulls normal current but moves noticeably less water, with a clean pump basket and a clean filter, is often running a cracked or worn diffuser. The wear usually shows at the nose where it meets the impeller. This listing is the diffuser on its own: the screws that hold it in place and the sealing O-ring are separate Hayward part numbers.

Specifications
Brand Hayward
Manufacturer part number SPX3200B3
UPC 610377911924
Part type Pool pump part
Type Diffuser
Fits Hayward TriStar SP3200, SP3200EE
Shipping weight 0.65 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps take this diffuser?
Hayward lists SPX3200B3 for the TriStar pump models SP3200 and SP3200EE.
Do the screws come with it?
No. The diffuser screws are a separate Hayward part, sold two per pack.
Is it a genuine Hayward part?
Yes. It is the factory diffuser, SPX3200B3.
How do I tell if the diffuser is the problem?
Look for cracks, a worn or grooved nose, or a loose fit against the impeller. A pump that draws normal current but delivers noticeably less flow than it used to, with a clean basket and filter, points this way.
