Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56JCentury Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V In stock$29199
Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J
Shop all Century Motors

Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V

Ask a questionMPN HST110
$29199
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • C-face motor The threaded shaft C-face format used by a wide range of pool and spa pumps.
  • 1.1 total horsepower Rated 1.1 THP.
  • 3450 RPM A single speed motor running at full pump speed.
  • 115/230 V Wired for either supply voltage.
  • 56J frame The standard 56J pool motor frame with a threaded shaft.
  • Century by Regal Century builds motors specifically for leisure water applications rather than adapting general purpose motors.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V, SKU AOS-60-2725. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V
Century Motors

Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V

$29199
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$32199 Century BN40SS 2 HP thru-bolt pool and spa pump motor, 115/230V, 48Y frame Century ODP Thru-Bolt Pool and Spa Pump Motor, 2 HP, 115/230V, 48Y Frame, BN40SS$32799 Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$27799 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$34499 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$32399 Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$27599 Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$26999 Century B129 threaded shaft pool pump motor, 1.5 HP, 115/230V Century Threaded Shaft Pool Pump Motor, 1.5 HP, 115/230V, B129$42999 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599
Century ST1152 energy efficient full rated 1.5 HP pool pump motor, front view Century Energy Efficient Pump Motor, Full Rated, 1.5 HP, 115/230V, ST1152$41099 Century B625 .75 HP threaded shaft motor for the Polaris booster pump, 115/230V Century Threaded .75 HP Polaris P61 Booster Pump Motor 115/230V, B625$30899 Century UST1152 up rated 1.5 HP pool pump motor, 115/230V Century Pump Motor, Up Rated, 1.5 HP, 115/230V, UST1152$32699 Century HSQ220 Centurion Pro square flange pool and spa pump motor, 48Y frame Century Pro Square Flange Motor, 2.2 THP, 3450 RPM, 230V, 48Y, Threaded Shaft, HSQ220$41599 Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095$27499 Century BN51 2 HP two speed 230V 48Y frame thru bolt pool pump motor Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51$40799 Century BN35V1 1.5 HP 115/230V 48Y frame thru bolt pool pump motor with stainless steel shaft Century BN35V1 Motor, 1.5 HP, 115/230V, 48Y Frame (SS)$28699 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century QC1072 full rated 3/4 HP 48Y frame pool pump motor, 115/230V Century Motor, Full Rated, 48Y Frame, .75 HP, 3450 RPM, 115/230V, QC1072$36599

Product details

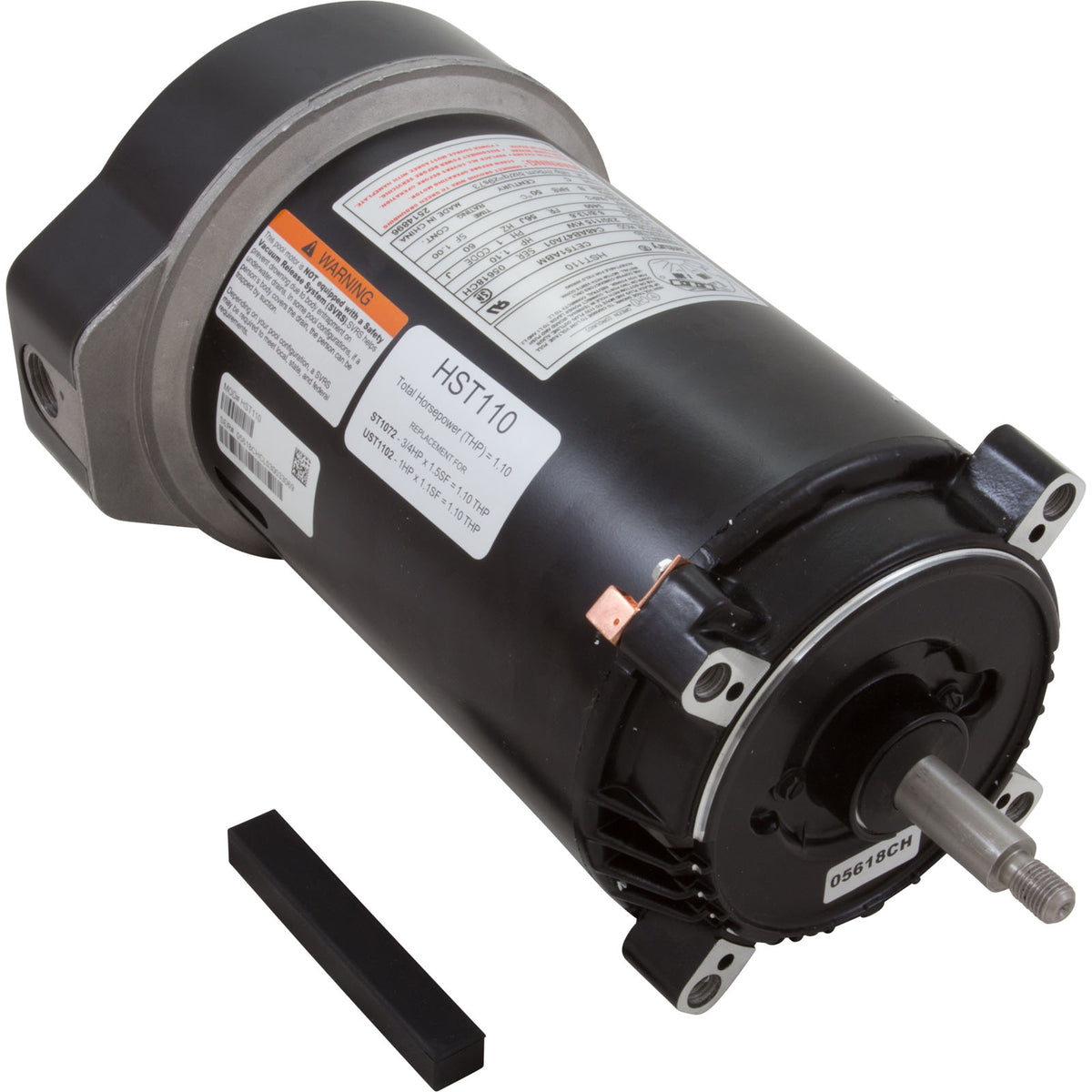

The Century Centurion Pro HST110 is a C-face pool and spa pump motor rated 1.1 total horsepower, running at 3450 RPM on 115 or 230 volts. It is built on the 56J frame with a threaded shaft.

What C-face and 56J mean for fitment

Pool motors are matched to pumps by frame, face and shaft, not by horsepower alone. A 56J C-face motor with a threaded shaft bolts to a pump built for that combination and takes an impeller that screws directly onto the shaft. Before ordering, read the nameplate on the motor you are replacing and confirm all three of those match, because a motor with the right horsepower and the wrong shaft simply will not go together.

Wiring

The motor is rated for both 115 and 230 volt supplies. Which one you use depends on the circuit already run to the equipment pad, and the motor has to be wired for that voltage before it is started.

About Century

Century, part of Regal, builds NEMA 48 and 56 frame motors specifically for leisure water: in ground and above ground pools, spas, pool cleaners and jetted tubs.

Specifications
Brand Century
Manufacturer part number HST110
UPC 786674069795
Series Centurion Pro
Type C-face pool and spa pump motor
Horsepower 1.1 THP
Speed 3450 RPM
Voltage 115/230 V
Frame 56J
Shaft Threaded
Shipping weight 21.35 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What frame is this motor?
56J, with a threaded shaft, in the C-face format.
Is it single speed or variable speed?
Single speed. It runs at 3450 RPM.
Can I run it on 115 volts?
It is rated 115/230 V, so it can be wired for either. Check the voltage plate and the wiring instructions on the motor before you connect it.
How do I know this is the right motor for my pump?
Match the frame, the shaft and the horsepower to what is on the old motor nameplate. A 56J threaded shaft C-face motor will not fit a pump built for a square flange or a keyed shaft.
