Century BN51 2 HP two speed 230V 48Y frame thru bolt pool pump motorCentury 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51 In stock$43299

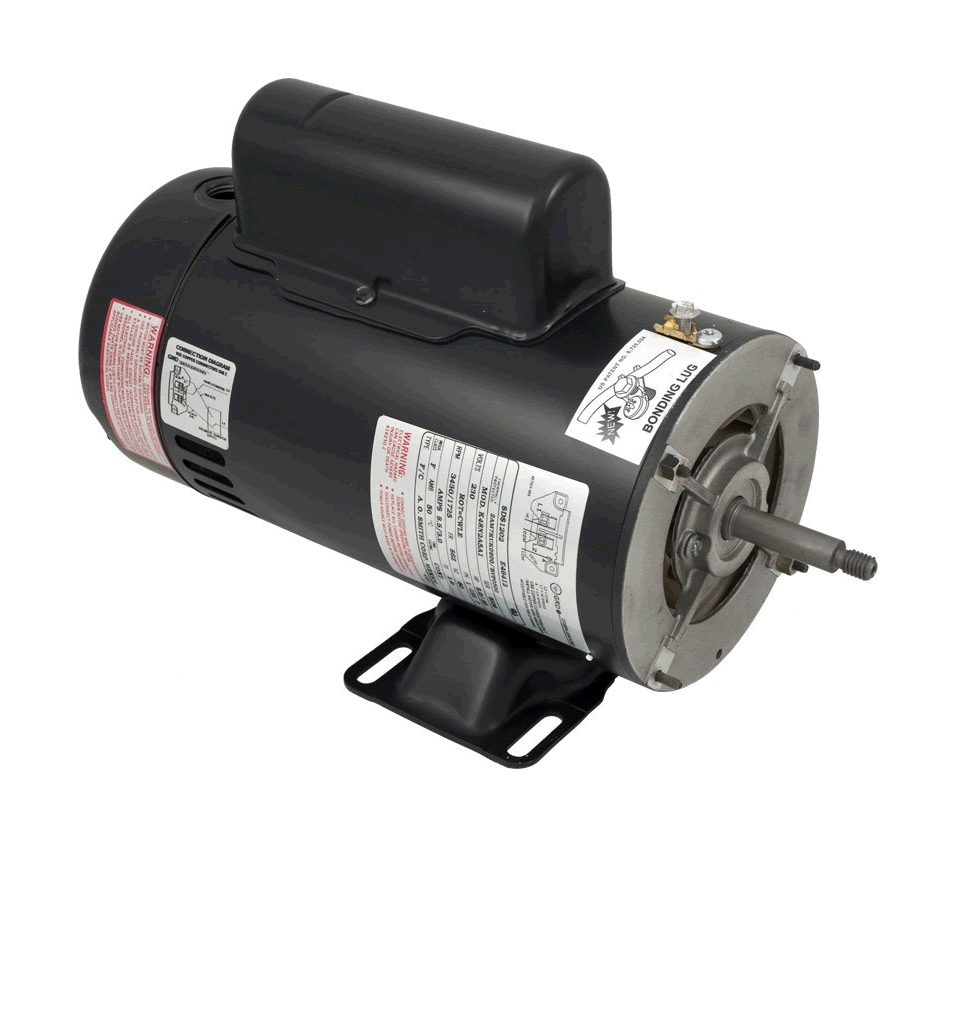

Century BN51 2 HP two speed 230V 48Y frame thru bolt pool pump motor
Shop all Century Motors

Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51

Ask a questionMPN BN51
$43299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speed Runs 1750 RPM on low and 3450 RPM on high, so filtering can happen on the quiet, cheap speed.
  • 2 HP at 230V Drawing 10.5 amps on high and 2.6 amps on low.
  • 48Y frame, thru bolt The 48Y frame in thru bolt construction, which is how it fastens to the pump wet end.
  • 1.0 service factor A full rated 2 HP motor at a service factor of 1.0.
  • Genuine Century Century part number BN51, the replacement motor rather than a rewound unit.
  • Match before you order Compare frame, horsepower, service factor, speed and voltage on your old motor nameplate before ordering, because the wet end has to match the frame.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51, SKU MGT-60-5201. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51
Century Motors

Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51

$43299
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century EVC165 VGreen Evo variable speed C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 1.65 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC165$62999 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century EVC130 VGreen Evo 1.30 THP C flange variable speed pool pump motor Century VGreen Evo Variable Speed 1.30 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC130$57299 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$55099 Century B2977 2.5 HP 56J frame two speed C-face pool pump motor Century C-Face Pool Pump Motor, 2.5 HP, 56J Frame, 2-Speed, B2977$46399 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$56999 Century B2982 1 HP two speed full rated pool pump motor, 230 V, Y56Y frame Century 1 HP Pool Motor, 2 Speed, Energy Efficient Full Rate, 230V, B2982$46099 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century STS1152R energy efficient two speed pool pump motor, 1.5 x 1/4 HP, 230V Century Energy Efficient Two Speed Pump Motor, Full Rated, 1.5 x 1/4 HP, 230V, STS1152R$59399 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899
Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$34499 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$27799 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$32199 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$56999 Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$26999 Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V$29199 Century B129 threaded shaft pool pump motor, 1.5 HP, 115/230V Century Threaded Shaft Pool Pump Motor, 1.5 HP, 115/230V, B129$42999 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Century BN34V1 two speed 1.5 HP 230V 48Y frame pool pump motor Century Motor, 2 Speed, 1.5 HP, 230V, 48Y Frame, BN34V1$36399

Product details

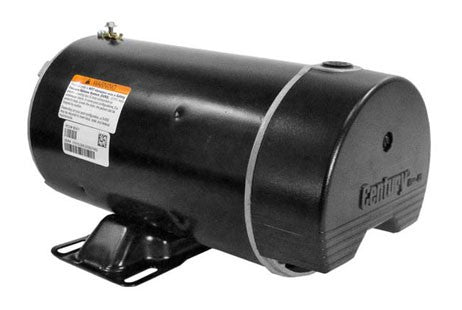

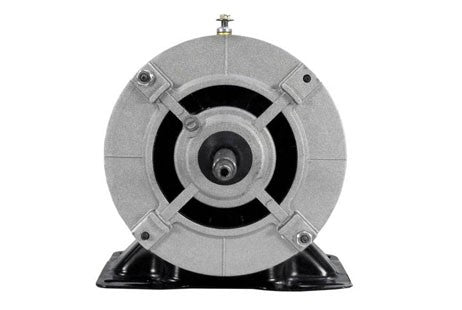

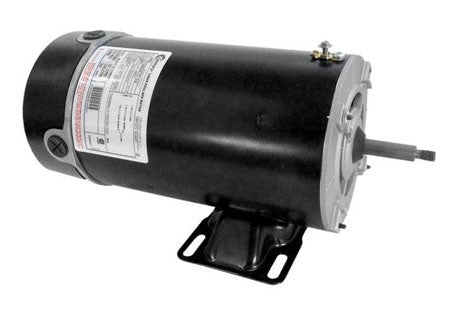

The Century BN51 is a 2 HP two speed replacement pool pump motor for 230V service, built on the 48Y frame in thru bolt construction. It runs 1750 RPM on low and 3450 RPM on high at a 1.0 service factor, drawing 10.5 amps on high and 2.6 amps on low.

Why two speed

Water only has to move slowly to be filtered. A two speed motor lets the pump spend most of its hours on low, where it is quieter and draws a small fraction of the power, and switch to high only when you need the flow: vacuuming, backwashing, or running a pressure side cleaner. On a pool that runs many hours a day, that difference is the whole reason two speed motors exist.

Making sure it fits

Motors are matched to the wet end by frame. Read the nameplate on the motor that is coming off and check the frame, the horsepower, the service factor, the speed count and the voltage against this one. Note that the data on this motor appears both as 230V and as 240V, which is the same nominal service, but a 115V pump is a different motor entirely.

Installation

A two speed motor needs to be wired for two speeds, which means the timer or controller has to be able to switch it. If your existing setup only ever ran a single speed motor, plan the control side along with the motor.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Century
Manufacturer part number BN51
UPC 786674014443
Type Replacement pool pump motor
Horsepower 2 HP
Speeds 2 speed
Voltage 230V
Voltage stated in the motor data 240V
Amps 10.5/2.6
RPM 1750/3450
Service factor 1.0
Frame 48Y
Construction Thru bolt
Shipping weight 28.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Is this motor 230V or 240V?
The listing calls it 230V and the motor data reads 240V. Both describe the same nominal residential service, so it goes on a 230/240V circuit. If your supply is 115V, this is not the motor.
What do the two speeds do for me?
Low speed at 1750 RPM turns the water over quietly and at a fraction of the power draw, which is where a pool should spend most of its filtering hours. High speed at 3450 RPM is there for vacuuming, backwashing and running a cleaner.
Will it fit my pump?
It is a 48Y frame thru bolt motor. Check the frame, horsepower, service factor and voltage on the nameplate of the motor you are replacing, because the wet end is built around a specific frame and the shaft has to match.
What does thru bolt mean?
It describes how the motor is assembled and mounted, with bolts running through the motor body. It is one of the standard 48 frame constructions, and it is worth confirming your existing motor is the same before ordering.
