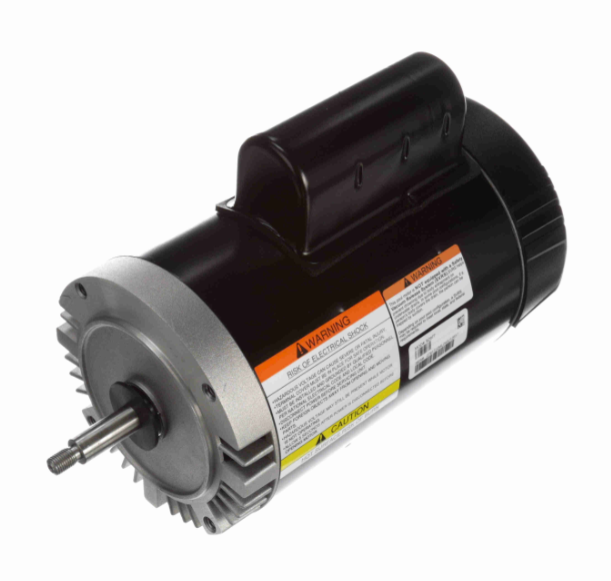

Century B2977 2.5 HP 56J frame two speed C-face pool pump motorCentury C-Face Pool Pump Motor, 2.5 HP, 56J Frame, 2-Speed, B2977 In stock$47999
Century B2977 2.5 HP 56J frame two speed C-face pool pump motor
Shop all Century Motors

Century C-Face Pool Pump Motor, 2.5 HP, 56J Frame, 2-Speed, B2977

Ask a questionMPN B2977
$47999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speeds Runs 3450 rpm on high and 1725 rpm on low, switchless on high with a microswitch on low.
  • 56J C-face The threaded shaft C-face format used by the pumps it serves, with a round mount and horizontal orientation.
  • Fits well known pumps Used with the Hayward® NorthStar after 2008, Jandy JHP and JHPU, HHP and HHPU, and the Jacuzzi Magnum Plus.
  • Sealed ball bearings Ball bearings at both the drive and opposite drive ends, in a rolled steel frame.
  • Stainless steel shaft A 7/16 in threaded 303 stainless steel shaft, 0.625 in diameter with a 2.57 in extension.
  • Physical size 13.05 in overall length with an 8.00 in frame length, worth checking against the motor you are removing.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century C-Face Pool Pump Motor, 2.5 HP, 56J Frame, 2-Speed, B2977, SKU MGT-60-2977. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century C-Face Pool Pump Motor, 2.5 HP, 56J Frame, 2-Speed, B2977
Century Motors

Century C-Face Pool Pump Motor, 2.5 HP, 56J Frame, 2-Speed, B2977

$47999
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century EVQ225 VGreen Evo 2.25 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ225$65299 Century BN51 2 HP two speed 230V 48Y frame thru bolt pool pump motor Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51$40799 Century B985 square flange two speed pool pump motor, 230V Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985$66899 Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$27799 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$54299 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$56999 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$58499 Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V$29199 Century BN40SS 2 HP thru-bolt pool and spa pump motor, 115/230V, 48Y frame Century ODP Thru-Bolt Pool and Spa Pump Motor, 2 HP, 115/230V, 48Y Frame, BN40SS$32799
Century B2982 1 HP two speed full rated pool pump motor, 230 V, Y56Y frame Century 1 HP Pool Motor, 2 Speed, Energy Efficient Full Rate, 230V, B2982$46099 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999 Century STS1152R energy efficient two speed pool pump motor, 1.5 x 1/4 HP, 230V Century Energy Efficient Two Speed Pump Motor, Full Rated, 1.5 x 1/4 HP, 230V, STS1152R$58399 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$34499 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$27599 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$32199

Product details

The Century B2977 is a two speed C-face pool pump motor, 2.5 HP on a 56J frame, running on 230 V single phase at 60 Hz.

Which pumps it serves

Century lists it for the Hayward® NorthStar built after 2008, the Jandy JHP and JHPU, the Jandy HHP and HHPU, and the Jacuzzi Magnum Plus. Match the frame, the shaft and the voltage to the motor you are removing before ordering.

How the two speeds work

High speed is 3450 rpm and is switchless. Low speed is 1725 rpm and runs through a microswitch. Running low for daily turnover and reserving high speed for vacuuming or backwashing is where a two speed motor earns its keep.

Construction and dimensions

It is a permanent split capacitor motor with sealed ball bearings at both ends, a rolled steel frame and a drip proof enclosure, with a 1.3 service factor. The shaft is 7/16 in threaded 303 stainless steel, 0.625 in in diameter with a 2.57 in extension. Overall length is 13.05 in over an 8.00 in frame, which is the measurement to check against the old motor.

Specifications
Brand Century
Manufacturer part number B2977
UPC 786674069627
Type C-face pool pump motor, 2 speed
Horsepower 2.5 HP
Nameplate output 1.1 kW
Voltage 230 V
Current 8.9 / 3.1 A
Service factor amps 8.7 / 1.9 A
Speed 3450 / 1725 rpm
Frame 56J
Phase 1 phase, 60 Hz
Service factor 1.3
Enclosure Drip proof
Bearings Sealed ball bearings, drive end and opposite drive end
Shaft 7/16 in threaded, 303 stainless steel
Fits Hayward® NorthStar after 2008, Jandy JHP and JHPU, Jandy HHP and HHPU, Jacuzzi Magnum Plus
Shipping weight 33 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps use this motor?
Century lists it for the Hayward® NorthStar built after 2008, the Jandy JHP and JHPU, the Jandy HHP and HHPU, and the Jacuzzi Magnum Plus.
What are the two speeds?
3450 rpm on high and 1725 rpm on low. High speed is switchless and low speed runs through a microswitch.
What supply does it need?
230 V single phase at 60 Hz. Rated current is 8.9 A on high and 3.1 A on low, with service factor amps listed at 8.7 and 1.9 A.
What size is the shaft?
A 7/16 in threaded shaft in 303 stainless steel, 0.625 in diameter with a 2.57 in extension. Overall motor length is 13.05 in.
