Century B985 square flange two speed pool pump motor, 230VCentury Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985 In stock$66899

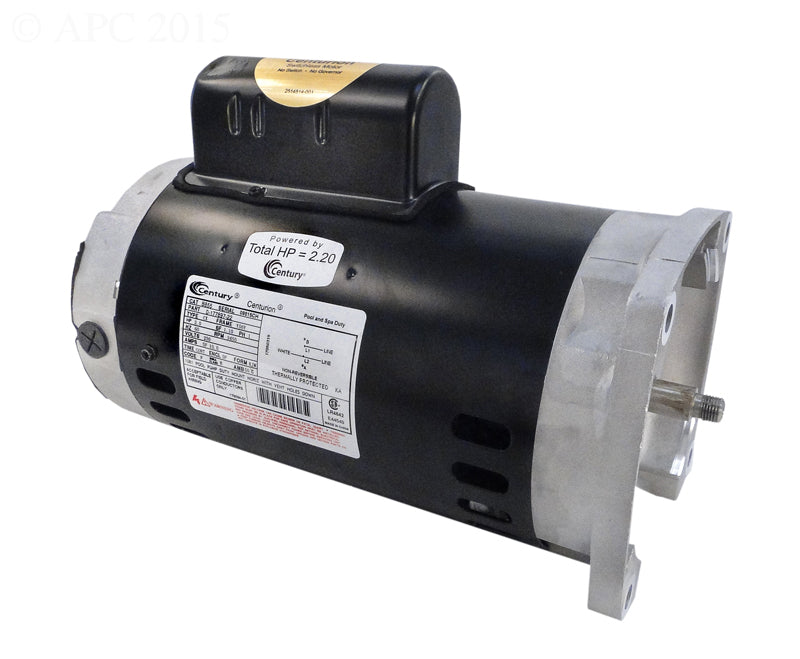

Century B985 square flange two speed pool pump motor, 230V
Shop all Century Motors

Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985

Ask a questionMPN B985
$66899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speed 3450 RPM on high and 1725 RPM on low, so the pump can filter quietly at half speed.
  • 56Y square flange The standard square flange C-face format used across most threaded shaft pool pumps.
  • 230 volt Single phase, 60 Hz, drawing 10.0 amps on high and 3.5 amps on low.
  • Open dripproof ODP enclosure with automatic thermal protection and class B insulation.
  • Stainless shaft A 303 stainless threaded shaft, 5/8 inch diameter and 1-7/8 inch long, on ball bearings.
  • Rating listed two ways The product title calls it full rated while the manufacturer description calls it up rated, so confirm the rating against your pump before ordering.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985, SKU MGT-60-5136. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985
Century Motors

Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985

$66899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frame Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R$71899 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$54299 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$58499 Century EVQ225 VGreen Evo 2.25 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ225$65299 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$56999 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999 Century EVC165 VGreen Evo variable speed C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 1.65 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC165$62999
Century EVC225 VGreen Evo variable speed 2.25 THP C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 2.25 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC225$66199 Century STS1152R energy efficient two speed pool pump motor, 1.5 x 1/4 HP, 230V Century Energy Efficient Two Speed Pump Motor, Full Rated, 1.5 x 1/4 HP, 230V, STS1152R$58399 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century EVC130 VGreen Evo 1.30 THP C flange variable speed pool pump motor Century VGreen Evo Variable Speed 1.30 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC130$57299 Century Pro HSQ260 square flange pool and spa pump motor, 2.6 HP, 230 V, 48Y frame Century Pro HSQ260 Square Flange Pump Motor, 2.6 HP, 3450 RPM, 230V, 48Y$56099 Century H755 square flange 3 HP three phase pool pump motor Century Square Flange Pool Pump Motor, 3 HP, 3 Phase, 208/230/460V, H755$64499 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motor Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152$50799 Century BN51 2 HP two speed 230V 48Y frame thru bolt pool pump motor Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51$40799 Century B2983 full rated two speed pool pump motor, 1.5 HP 1.47 SF 230V Century Full-Rated Two-Speed Motor, 1.5 HP 1.47 SF 230V (B2983)$57099

Product details

The Century B985 is a two speed square flange pool and spa pump motor for 230 volt service, running 3450 RPM on high and 1725 RPM on low.

Why two speeds

Half speed cuts noise and energy draw sharply while still turning the water over, so most of the filtering day can run low and the high speed is kept for vacuuming, heating and backwash. The motor uses a capacitor start and run design on the low speed and a PSC arrangement on high.

Construction

It is a 56Y frame motor in an open dripproof enclosure with automatic thermal protection, class B insulation and a 1.10 service factor. The square flange is aluminum, the shaft is 303 stainless in a threaded 5/8 inch diameter and 1-7/8 inch length, and it turns on ball bearings rated for a 50 degree C ambient. Overall length is 14.40 inches on a 6-1/2 inch body.

Check the rating

The listing carries two different descriptions of the rating. The product title calls it full rated at 2 HP, while the manufacturer copy describes an up rated motor at 2/0.33 HP with 2.2 total HP. The total horsepower figure is the one to compare against your pump. This motor is also flagged as not for sale in California.

Specifications
Brand Century
Manufacturer part number B985
UPC 786674013545
Type Pool and spa pump motor, CXPM-Type
Horsepower 2/0.33 HP
Total HP 2.2 THP
Speeds 2 speed, 3450/1725 RPM
Frame 56Y
Voltage 230 V
Amps 10.0/3.5 A
Frequency 60 Hz, 1-Phase
Enclosure Open Dripproof
Motor design Capacitor start/run on low speed, PSC on high speed
Mounting C-Face, Square Flange, aluminum flange
Shaft 303 stainless steel, threaded, 5/8 inch diameter, 1-7/8 inch length
Dimensions 14.40 inch overall length, 6-1/2 inch diameter
Other ratings Auto thermal protection, Class B insulation, 1.10 service factor, ball bearing, 50 deg C ambient, continuous duty, CCWPE rotation
Shipping weight 35.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a full rated or an up rated motor?
The source is inconsistent. The product title lists it as full rated 2 HP while the manufacturer description calls it an up rated motor at 2/0.33 HP and 2.2 total HP. Match the total HP figure against your pump rather than the horsepower label.
What are the two speeds?
3450 RPM on high and 1725 RPM on low. It uses a capacitor start and run arrangement on low speed and PSC on high.
Will it bolt onto my pump?
It is a 56Y frame square flange C-face motor with a threaded 303 stainless shaft, 5/8 inch diameter and 1-7/8 inch long, which is the standard fit for square flange pool pumps. Compare your existing motor before ordering.
What voltage does it need?
230 volts, single phase, 60 Hz. It draws 10.0 amps on high speed and 3.5 amps on low.
