Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frameCentury Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R In stock$71899

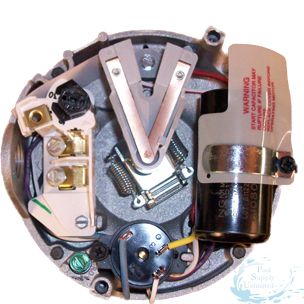

Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frame
Shop all Century Motors

Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R

Ask a questionMPN SQS1202R
$71899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speeds 2.0 HP at 3450 RPM on high and 0.33 HP at 1725 RPM on low.
  • Full rated, 2.6 THP A 1.3 service factor gives 2.6 total horsepower, the number to match when replacing a motor.
  • 48Y square flange Square flange mount with a 5/8 in. threaded shaft of 303 stainless steel.
  • 230V, 11.3 / 3.3 A Single phase, 60 Hz, drawing 11.3 A on high and 3.3 A on low.
  • Built for pool duty Open dripproof, all copper windings, Class B insulation, 50 C ambient and an automatic thermal protector.
  • Switch sold separately Ships without the hi/lo switch; the Century end cover and switch kit is part 615332.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R, SKU AOS-60-5078. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R
Century Motors

2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R

$71899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$54299 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$58499 Century B985 square flange two speed pool pump motor, 230V Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985$66899 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999 Century STS1152R energy efficient two speed pool pump motor, 1.5 x 1/4 HP, 230V Century Energy Efficient Two Speed Pump Motor, Full Rated, 1.5 x 1/4 HP, 230V, STS1152R$58399 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century B2983 full rated two speed pool pump motor, 1.5 HP 1.47 SF 230V Century Full-Rated Two-Speed Motor, 1.5 HP 1.47 SF 230V (B2983)$57099 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$56999
Century H637 square flange full rated 2HP three phase pool pump motor Century Square Flange Full Rated 2HP 3 Phase 208/230/460V Pump Motor, H637$60299 Century B2982 1 HP two speed full rated pool pump motor, 230 V, Y56Y frame Century 1 HP Pool Motor, 2 Speed, Energy Efficient Full Rate, 230V, B2982$46099 Century ST1152 energy efficient full rated 1.5 HP pool pump motor, front view Century Energy Efficient Pump Motor, Full Rated, 1.5 HP, 115/230V, ST1152$41099 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century EVC165 VGreen Evo variable speed C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 1.65 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC165$62999 Century EVC225 VGreen Evo variable speed 2.25 THP C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 2.25 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC225$66199 Century EVC130 VGreen Evo 1.30 THP C flange variable speed pool pump motor Century VGreen Evo Variable Speed 1.30 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC130$57299 Century H755 square flange 3 HP three phase pool pump motor Century Square Flange Pool Pump Motor, 3 HP, 3 Phase, 208/230/460V, H755$64499 Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motor Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152$50799 Century BN51 2 HP two speed 230V 48Y frame thru bolt pool pump motor Century 2 HP 2 Speed 230V 48 Frame Pool Pump Motor, BN51$40799

Product details

The Century SQS1202R is a full rated, two-speed square flange pool pump motor: 2.0 HP on high and 0.33 HP on low at 230 V, on a 48Y frame with a 1.3 service factor for 2.6 total horsepower. Century lists it as used on many Sta-Rite, Red Jacket and Sears jet and pool pumps.

Specifications

High speed runs 3450 RPM at 11.3 A and low speed runs 1725 RPM at 3.3 A, single phase, 60 Hz, continuous duty. Century builds it with all copper windings, capacitor start on low speed and PSC on high speed, Class B insulation for a 50 C ambient, an open dripproof enclosure and an automatic thermal protector. The 5/8 in. shaft is 303 stainless steel with a 1/2-20 UNF-2A thread, and wrench flats on the shaft are reached by removing the end cover. Rotation is counterclockwise at the pump end, and the motor measures about 5-5/8 in. in diameter and 13-13/16 in. long.

Choosing a replacement

Century's rule is that a replacement motor's total horsepower, nameplate HP times service factor, must equal or exceed the motor coming out. Match the 48Y square flange, the threaded shaft, the 230 V supply and the two speeds as well.

Before you install

Century ships its two-speed motors without the hi/lo switch, for remote operation; the end cover and switch kit is part 615332, sold separately. Wire the motor by its nameplate diagram, to the National Electrical Code and local requirements. Century notes that this motor has no Safety Vacuum Release System, which some pools need to meet local, state or federal rules.

Specifications
Brand Century
Manufacturer part number SQS1202R
Horsepower 2.0 HP high / 0.33 HP low
Speeds and RPM Two-speed, 3450 / 1725 RPM
Electrical 230 V, single phase, 60 Hz
Amps 11.3 A high / 3.3 A low
Service factor 1.3 (2.6 total HP)
Frame and mount 48Y, square flange
Shaft 5/8 in. diameter, threaded 1/2-20 UNF-2A, 303 stainless steel
Motor design Capacitor start on low speed, PSC on high speed; all copper windings
Enclosure and protection Open dripproof (ODP); automatic thermal protector
Insulation and duty Class B insulation, 50 C ambient, continuous duty
Rotation Counterclockwise, pump end
Size 5-5/8 in. diameter; approx. 13-13/16 in. long (AG)
Certifications UL 1081; UL component file E46412; CSA file LR43341
Fits Used on many Sta-Rite, Red Jacket and Sears jet and pool pumps
Not included Hi/lo switch; end cover and switch kit 615332 sold separately
Shipping weight 32.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Will the Century SQS1202R replace the motor on my pump?
Century lists the SQS1202R as used on many Sta-Rite, Red Jacket and Sears jet and pool pumps. Confirm the old motor is a 48Y square flange, two-speed, 230V motor with a threaded shaft, and that its total horsepower is 2.6 or less.
How do I work out total horsepower for a replacement motor?
Multiply nameplate horsepower by service factor. The Century SQS1202R is 2.0 HP with a 1.3 service factor, or 2.6 total HP, and Century says a replacement must equal or exceed the total horsepower of the motor it replaces.
Does the SQS1202R come with a two-speed switch?
No. Century ships its two-speed motors, including the SQS1202R, without the hi/lo switch, for remote operation. The end cover and switch kit is Century part 615332, sold separately.
What should I check before wiring the SQS1202R?
Make sure the nameplate voltage and frequency, 230 V and 60 Hz, match your power supply. Connect the motor by the diagram on its nameplate, with wiring, fusing and grounding done to the National Electrical Code and local requirements.
