Century B2843 square flange 2 HP 208/230V pool pump motorCentury Square Flange 2 HP EE 208/230V Pool Pump Motor B2843 In stock$57499
Century B2843 square flange 2 HP 208/230V pool pump motor
Shop all Century Motors

Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843

Ask a questionMPN B2843
$57499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2 HP at 208-230V Rated 2.0 horsepower on 208 to 230 volt service, drawing 11.0/10.0 amps.
  • Service factor 1.30 A 1.30 service factor on top of the 2.0 horsepower rating.
  • Square flange The square flange mounting, so it goes on square flange pool pumps.
  • Energy efficient range Century lists this one in its EE, energy efficient, line.
  • Ball bearings Ball bearing construction, with rotation counterclockwise viewed from the pump end.
  • Stainless steel shaft A stainless shaft resists the corrosion that welds an impeller onto a plain steel one.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843, SKU MGT-60-5143. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843
Century Motors

Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843

$57499
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$36999 Century B985 square flange two speed pool pump motor, 230V Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985$66899 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$55899 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$60399 Century H755 square flange 3 HP three phase pool pump motor Century Square Flange Pool Pump Motor, 3 HP, 3 Phase, 208/230/460V, H755$66499 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$30599 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$45099 Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frame Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R$74099 Century EVQ225 VGreen Evo 2.25 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ225$65299 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499
Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$39199 Century B2844 energy efficient 3 HP square flange pool pump motor Century Energy Efficient 3 HP Square Flange Motor 208/230V, B2844$61499 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$58699 Century Pro HSQ260 square flange pool and spa pump motor, 2.6 HP, 230 V, 48Y frame Century Pro HSQ260 Square Flange Pump Motor, 2.6 HP, 3450 RPM, 230V, 48Y$57799 Century H637 square flange full rated 2HP three phase pool pump motor Century Square Flange Full Rated 2HP 3 Phase 208/230/460V Pump Motor, H637$62099 Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motor Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152$52399 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century EVC165 VGreen Evo variable speed C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 1.65 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC165$62999 Century EVC225 VGreen Evo variable speed 2.25 THP C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 2.25 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC225$66199 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$35499

Product details

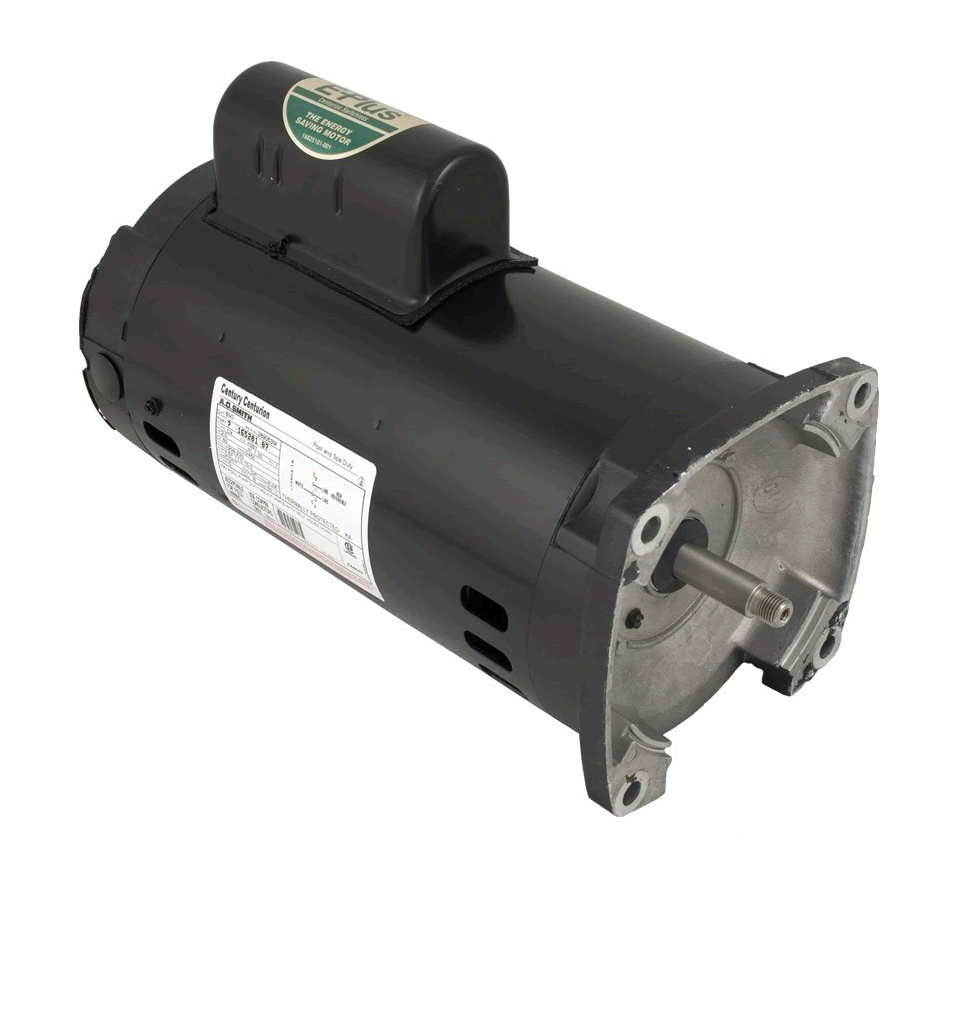

The Century B2843 is a square flange 2.0 HP pool pump replacement motor for 208 to 230 volt service, with a 1.30 service factor. It is the motor A.O. Smith listed as the SQ1202.

Electrical and mechanical

Two horsepower at 208-230V, drawing 11.0 amps at the lower voltage and 10.0 at the higher. Rotation is counterclockwise viewed from the pump end. It runs on ball bearings rather than sleeve bearings and carries a stainless steel shaft, which matters more than it sounds: a plain shaft corrodes over the years and an impeller can seize onto it hard enough that the next rebuild becomes a motor replacement.

Getting the replacement right

Match three things before ordering: the mounting, which is square flange here, the horsepower and service factor, and the supply voltage. Those are printed on the label of the motor you are removing. The same motor turns up under a long list of numbers, including B843, SQ1202, AOSB843, 38533, 5324-0, 663001726104 and 0-193995-07, so a part number that does not match exactly is worth checking against that list before you rule it out.

Specifications
Brand Century
Manufacturer part number B2843
UPC 786674012227
A.O. Smith number SQ1202
Substitute part numbers B843, SQ1202, B2843, AOSB843, 38533, 5324-0, 663001726104, 0-193995-07
Horsepower 2.0
Voltage 208-230
Amps 11.0/10.0
Service factor 1.30
Frame 56Y
Mounting Square flange
Bearings Ball bearings
Rotation CCW pump end
Shaft Stainless steel
Part type Replacement motor
Shipping weight 29.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Will it run on 115V?
No. The B2843 is a 208 to 230 volt motor, drawing 11.0/10.0 amps.
Which way does it turn?
Counterclockwise viewed from the pump end.
Is this the same as the A.O. Smith SQ1202?
Yes. Century B2843 is listed against A.O. Smith SQ1202, and also under B843, AOSB843, 38533, 5324-0, 663001726104 and 0-193995-07.
How do I know it fits my pump?
Match the mounting, the horsepower and the voltage. This is a square flange, 2.0 HP, 208-230V motor with a 1.30 service factor. Compare all three against the label on the motor you are replacing.
