Century USQ1152 up rated 1.5 HP square flange pool pump motor, front viewCentury Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152 In stock$35899

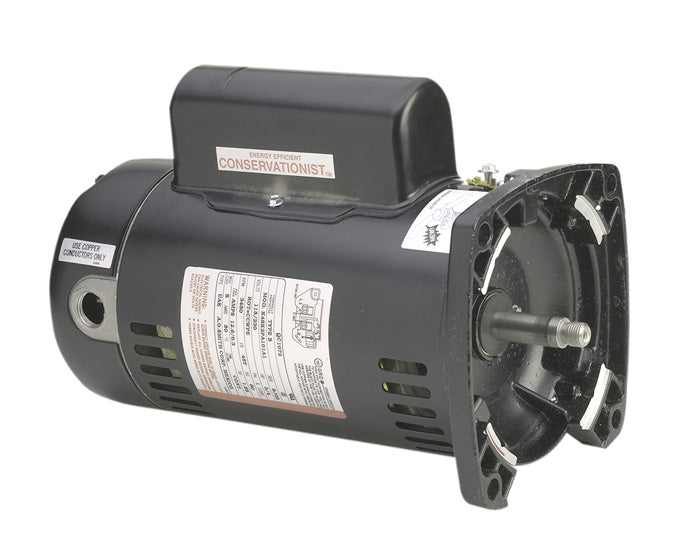

Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view
Shop all Century Motors

Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152

Ask a questionMPN USQ1152
$35899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Square flange 48Y The standard square flange, 48Y frame format used by Sta-Rite Max-E-Glas and Dura-Glas pumps.
  • Up rated 1-1/2 HP An up rated motor, so read the horsepower alongside the 1.1 service factor when matching your old one.
  • Dual voltage Wired for 230 or 115 V, 8.75 A at 230 V and 17.5 A at 115 V.
  • Sealed ball bearings Ball bearings at both ends, with capacitor start and across the line starting.
  • Stainless steel shaft A 303 stainless shaft with a 1/2 inch thread resists the corrosion that seizes plain steel.
  • Open drip proof An open drip proof enclosure rated for continuous duty.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152, SKU AOS-60-5075. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152
Century Motors

Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152

$35899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century SQ1072 3/4 HP square flange pool pump motor, front view Century 3/4 HP Square Flange Pool Pump Motor, 115/230V, SQ1072$29599 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus Square Flange Full-Rated Pool Pump Motor, 1 HP, B2841V1$37999 Century B229SE 1.5 HP threaded shaft up rated pool pump motor Century Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V, B229SE$34499 Century B2858 1.5 HP full rated pool pump motor, front right view Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$47199 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399 Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$32199 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Century ST1152 energy efficient full rated 1.5 HP pool pump motor, front view Century Energy Efficient Pump Motor, Full Rated, 1.5 HP, 115/230V, ST1152$41099 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599
Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$27799 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors Square Flange Pool and Spa Motor, 56Y Frame, 115/230V, ASB848$32399 Century UST1152 up rated 1.5 HP pool pump motor, 115/230V Century Pump Motor, Up Rated, 1.5 HP, 115/230V, UST1152$32699 Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$26999 Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J Century Pro C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V, HST110$29199 Century B129 threaded shaft pool pump motor, 1.5 HP, 115/230V Century Threaded Shaft Pool Pump Motor, 1.5 HP, 115/230V, B129$42999 Century Q3152 square flange 1.5 HP three phase 230/460V pool pump motor Century Square Flange 1.5 HP 3 Phase 230/460V Pool Pump Motor, Q3152$51899 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152$36399 Century B130 full rate 2 HP 230V 56J frame threaded shaft pool pump motor Century Threaded Full Rate 2HP 230V Pool Pump Motor, B130$46799 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor, 0.75 HP, 115V/230V, Threaded Full-Rate, B2847V1$34299

Product details

The Century USQ1152 is an up rated, square flange pool pump motor rated at 1-1/2 HP on 230 or 115 volts. It is the 48Y frame format used by Sta-Rite Max-E-Glas, Dura-Glas I and II, and Max-E-Pro pumps.

Matching your old motor

Horsepower on its own does not identify a pool motor. Read the nameplate on the one you are removing and match the frame, the flange, the horsepower and the service factor together. This one is 48Y, square flange, 1-1/2 HP with a 1.1 service factor, 3450 rpm, single phase, 60 Hz. Current draw is 8.75 A at 230 V and 17.5 A at 115 V, so check the breaker and wiring for the voltage you intend to run.

Build

Ball bearings at both ends, capacitor start with across the line starting, an open drip proof enclosure and continuous duty rating, class B insulation and automatic thermal protection. The shaft is 303 stainless steel with a 1/2 inch thread and a 0.625 inch diameter, which matters on a pump that sits wet for years. Overall length is 13.82 inch and rotation is counterclockwise viewed from the pump end.

While the motor is off

A motor change is the natural time to replace the shaft seal and the pump gaskets. Fitting a new motor behind a tired seal usually means taking the pump apart again a few weeks later.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Century
Manufacturer part number USQ1152
UPC 786674033253
Type Up rated square flange pool pump motor
Horsepower 1-1/2 HP, up rated
Output 1.1 kW
Voltage 230/115 V
Current 8.75/17.5 A
Speed 3450 rpm
Service factor 1.1
Frame 48Y
Enclosure Open drip proof
Bearings Ball, drive end and opposite drive end
Starting Capacitor start, across the line
Shaft 303 stainless steel, 1/2 inch thread, 0.625 inch diameter
Overall length 13.82 inch
Fits Sta-Rite Max-E-Glas, Dura-Glas I and II, Max-E-Pro
Shipping weight 25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this motor fit?
Sta-Rite Max-E-Glas, Dura-Glas I and II, and Max-E-Pro. It is the square flange, 48Y frame format those pumps use.
What does up rated mean?
An up rated motor carries a lower service factor for the stated horsepower, 1.1 here. When you replace a motor, match the horsepower and the service factor together rather than the horsepower alone.
Can it run on 115 volts?
Yes. It is a dual voltage motor, 230 or 115 V, drawing 8.75 A at 230 V and 17.5 A at 115 V.
Does it come with a seal or a shaft seal kit?
No. This is the motor. Seals and gaskets are ordered separately, and a rebuild kit for the pump is the usual companion when the motor is changed.
Ask your own question
