Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072 In stock$265⁹⁹

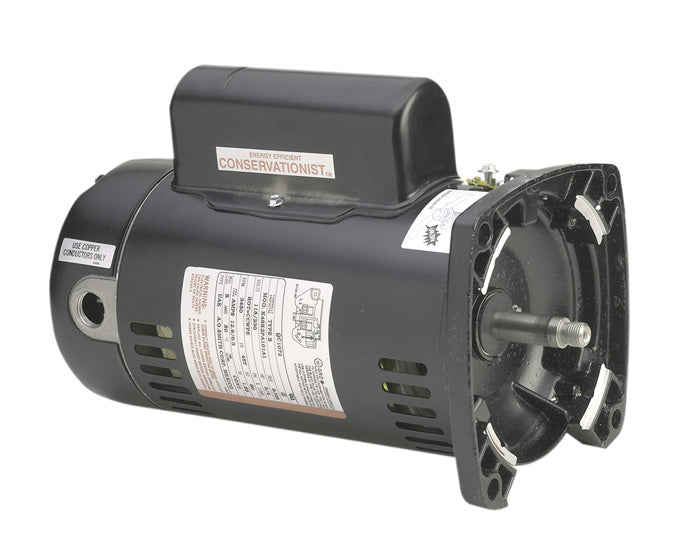

Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V

Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072

Name: Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072
Brand: Century Motors
SKU: AOS-60-5206
Price: 265.99 USD
Availability: InStock

Ask a questionMPN USQ1072

$265⁹⁹

FREE Delivery

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Square flange mount The square flange pattern, so it bolts to pumps built for that mounting rather than a round flange.
Three quarter horsepower up-rate The 3/4 HP up-rate rating, which is how these motors are labeled on the pumps that use them.
Dual voltage Wired for 115 or 230 volts to suit the supply at the pad.
Not California compliant This motor is not California Title 20 compliant. The EVQ130 is the replacement to use in California.
Century USQ1072 The manufacturer part number for this square flange up-rate motor.
Common across several pump families Listed with Sta-Rite Dura-Glas II, Max-E-Glas II, Dyna-Glas, Dyna-Max, Max-E-Pro and Hayward® Max-Flo II parts breakdowns.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072

Century Motors

Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072

$265⁹⁹

Select

Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$339⁹⁹

Select

Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$619⁹⁹

Select

Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$411⁹⁹

Select

Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$339⁹⁹

Select

Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$319⁹⁹

Select

Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$287⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$313⁹⁹

Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view

Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$358⁹⁹

Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V

Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$313⁹⁹

Century SQ1072 3/4 HP square flange pool pump motor, front view

Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$295⁹⁹

Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152$363⁹⁹

U.S. Motors ASB848 square flange 56Y frame pool and spa motor

U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$323⁹⁹

Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y

Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095$207⁹⁹

Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661$367⁹⁹

Century BN35V1 1.5 HP 115/230V 48Y frame thru bolt pool pump motor with stainless steel shaft

Century BN35V1 Motor, 1.5 HP, 115/230V, 48Y Frame (SS)$286⁹⁹

Century E-Plus B2841V1 1 HP square flange pool pump motor

Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$379⁹⁹

Century B229SE 1.5 HP threaded shaft up rated pool pump motor

Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$344⁹⁹

Century B127 3/4 HP pool pump motor, front view

Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$277⁹⁹

Century B625 .75 HP threaded shaft motor for the Polaris booster pump, 115/230V

Century Threaded .75 HP Polaris P61 Booster Pump Motor 115/230V, B625$308⁹⁹

Century QC1072 full rated 3/4 HP 48Y frame pool pump motor, 115/230V

Century Motor, Full Rated, 48Y Frame, .75 HP, 3450 RPM, 115/230V, QC1072$365⁹⁹

Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$275⁹⁹

Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V

Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$321⁹⁹

Century UST1152 up rated 1.5 HP pool pump motor, 115/230V

Century Pump Motor, Up Rated, 1.5 HP, 115/230V, UST1152$326⁹⁹

Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor

Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$269⁹⁹

Nidec ASB841A square flange 56Y pool pump motor in almond

Nidec Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A$351⁹⁹

Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J

Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V$291⁹⁹

Product details

The Century USQ1072 is a square flange replacement pool pump motor rated 3/4 horsepower up-rate, wired for either 115 or 230 volts.

Matching the motor to the pump

Three things have to line up: the flange, the horsepower rating and the voltage. This is the square flange version, so it will not bolt to a pump built for a round flange. The 3/4 HP up-rate label is what to compare against the plate on your existing motor, since an up-rate and a full rate motor of the same nominal horsepower are not the same machine.

Where it is used

USQ1072 appears in the parts breakdowns for the Sta-Rite Max-E-Glas II and Dura-Glas II, the Max-E-Glas and Dura-Glas, the Dyna-Glas and Dyna-Max, the Max-E-Pro, and the Hayward® Max-Flo II.

California buyers

This motor is not California Title 20 compliant and cannot be used for a pool pump installation in that state. The specified alternative is the EVQ130. Check your local requirements before ordering, since other jurisdictions have adopted similar efficiency rules.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Specifications
Brand	Century
Manufacturer part number	USQ1072
UPC	786674033239
Type	Replacement pool pump motor
Horsepower	3/4 HP
Rating	Up-rate
Flange	Square flange
Voltage	115/230V
California Title 20	Not compliant, use EVQ130
Listed in parts diagrams for	Sta-Rite Max-E-Glas II and Dura-Glas II, Max-E-Glas and Dura-Glas, Dyna-Glas and Dyna-Max, Max-E-Pro, and Hayward® Max-Flo II pumps
Shipping weight	17.6 lb
Ships	Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Can I buy this in California?

No. This motor is not California Title 20 compliant. The EVQ130 is the specified alternative for California installations.

What does up-rate mean?

Up-rate motors are labeled at a higher horsepower than their full rate equivalent for the same real output. The label on your existing motor tells you which one your pump was built around, so match it rather than guessing.

Which flange do I need?

This is the square flange version. If your pump takes a round flange motor, this will not bolt up, so check the mounting face before ordering.

What voltage does it run on?

It is a dual voltage motor for 115 or 230 volts. Wire it to match the supply already at the equipment pad.
