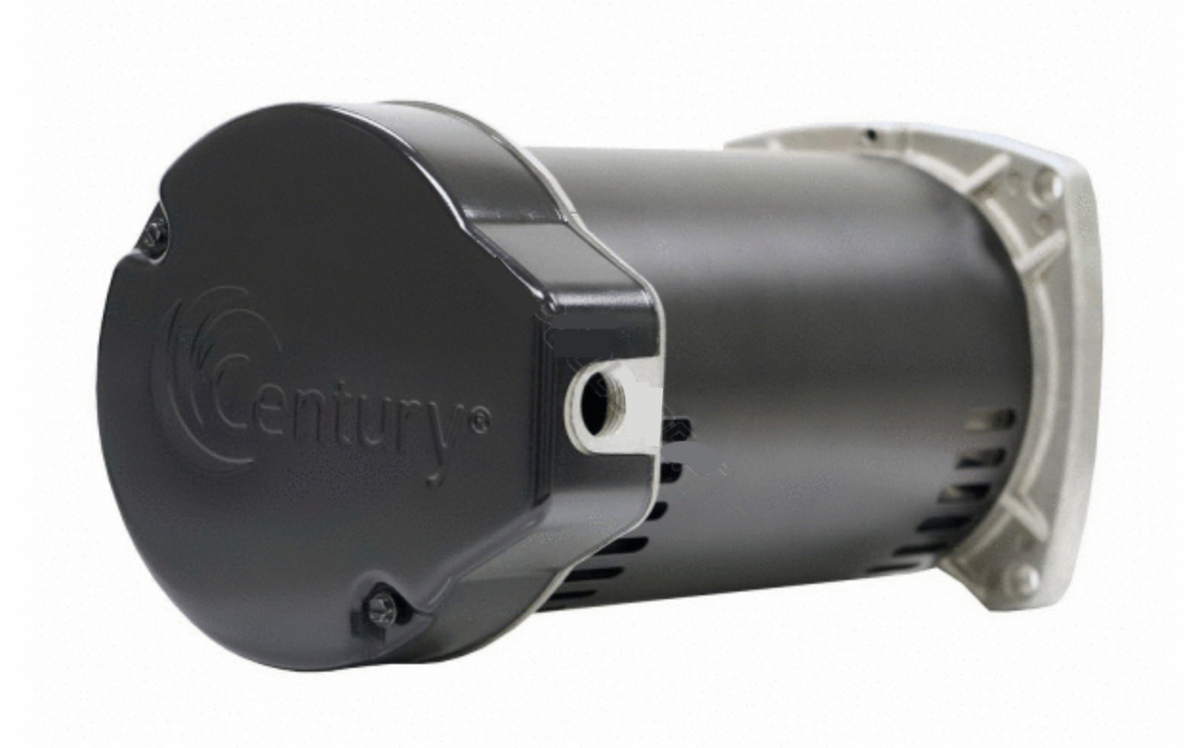

Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48YCentury Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095 In stock$20799
Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y
Shop all Century Motors

Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095

Ask a questionMPN HSQ095
$20799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Square flange 48Y The square flange 48Y frame with a threaded shaft, the pattern most residential pool pumps use.
  • Dual voltage Wired for 115 V or 230 V service, so it suits either supply at the pad.
  • Hybrid end frame The Centurion Pro end frame uses a different BX hole placement and terminal board layout to leave room for feeding heavier gauge wire.
  • PCB terminal board The larger terminal board is formed from durable PCB material and laid out to be worked by hand or with a tool.
  • Voltage change plug A dedicated plug seats on one clearly marked set of angled spade terminals, which takes the guesswork out of switching voltage.
  • Shaft access designed in A defined shaft access path shows the installer where and how to hold the shaft during service.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095, SKU AOS-60-2721. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095
Century Motors

Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095

$20799
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century UST1072 up rated .75 HP pool pump motor, 115/230 V, 56J frame, front view Century Pump Motor, Up Rated, .75 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft, UST1072$25499 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century B127 3/4 HP pool pump motor, front view Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$27799 Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V$29199 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Century B625 .75 HP threaded shaft motor for the Polaris booster pump, 115/230V Century Threaded .75 HP Polaris P61 Booster Pump Motor 115/230V, B625$30899 Century B2846 square flange full rated pool and spa pump motor, 0.5 HP Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$27599 Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$26999 Century Motors A.O Smith Motor Sq .5HP 115-230V | SQ1052 Century Motors A.O Smith Motor Sq .5HP 115-230V | SQ1052$26999 Century Motors Magnetek Motor Thru Bolt 48 Frame 1.5HP 115/230V Stainless Steel | BN35SS Century Motors Magnetek Motor Thru Bolt 48 Frame 1.5HP 115/230V Stainless Steel | BN35SS$29099
Hayward SMX300055036 1/3 HP 825 RPM fan motor Hayward 1/3 Horsepower, 825 RPM Fan Motor Replacement for Summit and HeatPro, SMX300055036$29499 Century BN24V1 up rated 0.75 HP pool pump motor, 115v, 48Y frame Century Motor, Up Rated, .75 HP, 115v, Flex 48, BN24V1$21299 Century Motors Magnetek Motor Thru Bolt 48 Frame .75HP 2SP 115V CBS2072 | BN36 Century Motors Magnetek Motor Thru Bolt 48 Frame .75HP 2SP 115V CBS2072 | BN36$27899 Century 2517501-002 V-Green 270 automation adapter kit in black Century V-Green 270 Automation Adapter Kit, Black 2517501-002$16499 CaliMar FB2030-M 3 HP 230 volt replacement pool pump motor CaliMar Replacement Motor, 230V 3HP, FB2030-M$15199 CaliMar FB2030-MD motor drive CaliMar Motor Drive FB2030-MD$28899 Century Centurion Pro HST225 2.25 HP pool pump motor, 56J frame threaded shaft Century Centurion Pro HST225 Motor, 2.25 HP, 3450 RPM, 115/208-230 V, 56J, Threaded Shaft$41199 Century EVQ130 VGreen Evo 1.30 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 1.30 THP Square Flange Pool Pump Motor, 230/115 Volt, EVQ130$56999 Century EVC130 VGreen Evo 1.30 THP C flange variable speed pool pump motor Century VGreen Evo Variable Speed 1.30 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC130$57299 Century EVC165 VGreen Evo variable speed C flange pool pump motor, 56J frame Century VGreen Evo Variable Speed 1.65 THP C Flange Pool Pump Motor, 230/115 V, 56J Frame, EVC165$62999

Product details

The Century Centurion Pro HSQ095 is a square flange pool and spa pump motor rated 0.95 THP at 3450 RPM, wired for 115 or 230 volts, on a 48Y frame with a threaded shaft. It runs 203 bearings at both ends.

Built around the installer

The Centurion Pro line is a professional grade motor, and most of what separates it from a plain replacement shows up during the swap rather than during running. The hybrid end frame moves the BX holes and reworks the terminal board so there is room to feed even heavy gauge wire in with clear access. The terminal board itself is formed from durable PCB material and laid out to be handled by hand or with a tool.

Wiring and service

Voltage is set with a change plug that seats on one of two clearly defined sets of angled spade terminals, so the wrong configuration does not go together by accident. Century also designed in a definitive shaft access path, which tells the installer where to hold the shaft and what to hold it with during installation or later service.

Check before you order

A motor replacement lives or dies on the frame, flange and shaft matching what came off. This one is a 48Y square flange with a threaded shaft, so measure and compare against the old motor before you buy.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Century
Manufacturer part number HSQ095
UPC 786674033239
Series Centurion Pro
Type Square flange pool and spa pump motor
Total horsepower 0.95 THP
Speed 3450 RPM
Voltage 115/230 V
Frame 48Y
Shaft Threaded
Bearings 203 bearings both ends
Grade Professional grade
Shipping weight 18.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What frame and shaft is this motor?
A 48Y square flange frame with a threaded shaft, rated 0.95 THP at 3450 RPM.
Can it run on 115 V?
Yes. It is a 115/230 V motor. The Centurion Pro uses a voltage change plug that fits only one of two clearly marked sets of angled spade terminals, which is there to prevent mis-wiring.
Will my existing impeller and seal fit?
Motor swaps are decided by the frame, the shaft and the flange. This is a 48Y square flange with a threaded shaft, so compare that against what came off the pump before ordering wet end parts.
What bearings does it use?
203 bearings at both ends.
