Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP In stock$275⁹⁹

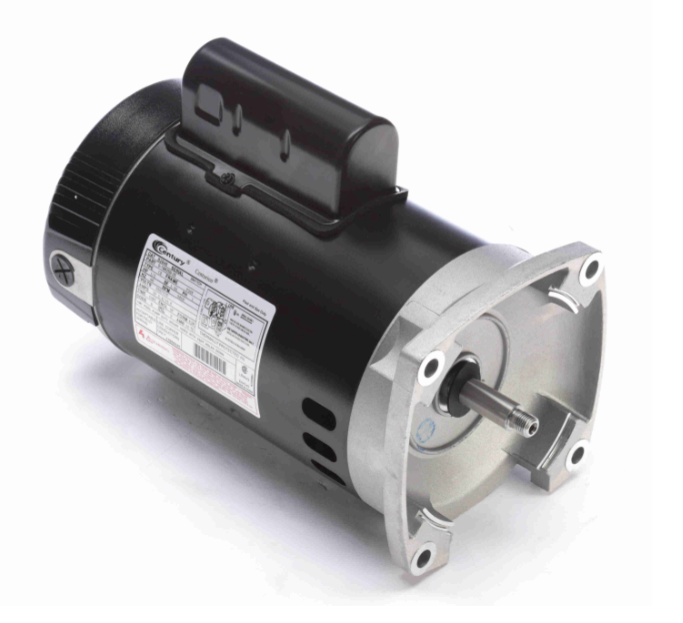

Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP

Name: Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP
Brand: Century Motors
SKU: MGT-60-2846
Price: 275.99 USD
Availability: InStock

Ask a questionMPN B2846

$275⁹⁹

FREE Delivery

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Square flange 56Y The square flange, 56Y frame format used across a wide range of pool pumps.
Full rated 1/2 HP Full rated output at 3450 rpm with a 1.95 service factor.
Dual voltage Single phase, wired for 230 or 115 volts at 60 Hz.
Threaded stainless shaft A 1/2 inch threaded stainless steel shaft, 0.625 diameter with a 0.91 inch extension.
Sealed ball bearings Ball bearings at both ends, open dripproof enclosure, rated to a 50 C ambient.
Known pump fits Used with Pentair Challenger, Pentair Pinnacle and Jandy Stealth SHPF/SHPM pumps.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP

Century Motors

Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP

$275⁹⁹

Select

Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$339⁹⁹

Select

Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$619⁹⁹

Select

Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$411⁹⁹

Select

Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$339⁹⁹

Select

Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$319⁹⁹

Select

Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$287⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Century E-Plus B2841V1 1 HP square flange pool pump motor

Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$379⁹⁹

Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V

Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$321⁹⁹

Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view

Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$358⁹⁹

U.S. Motors ASB848 square flange 56Y frame pool and spa motor

U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$323⁹⁹

Century Centurion Pro HST110 C-face pool and spa pump motor, 1.1 THP 56J

Century Pro HST110 C-Face Pool and Spa Pump Motor, 1.1 THP, 115/230V$291⁹⁹

Century SQ1072 3/4 HP square flange pool pump motor, front view

Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$295⁹⁹

Century BN40SS 2 HP thru-bolt pool and spa pump motor, 115/230V, 48Y frame

Century ODP Thru-Bolt Pool and Spa Pump Motor, 2 HP, 115/230V, 48Y Frame, BN40SS$327⁹⁹

Century ST1152 energy efficient full rated 1.5 HP pool pump motor, front view

Century Energy Efficient Pump Motor, Full Rated, 1.5 HP, 115/230V, ST1152$410⁹⁹

Century B229SE 1.5 HP threaded shaft up rated pool pump motor

Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$344⁹⁹

Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$340⁹⁹

Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V

Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$313⁹⁹

Century ST1072 full rated 0.75 HP pool pump motor, 115/230V

Century Pump Motor, Full Rated, 0.75 HP, 115/230v, ST1072$288⁹⁹

Century QC1102 1 HP full rated 48Y square flange pool pump motor

Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102)$380⁹⁹

Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V

Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$265⁹⁹

Century B127 3/4 HP pool pump motor, front view

Century 3/4 HP Pool Pump Motor, 115/230V, C-Face Threaded Shaft, B127$277⁹⁹

Century QC1072 full rated 3/4 HP 48Y frame pool pump motor, 115/230V

Century Motor, Full Rated, 48Y Frame, .75 HP, 3450 RPM, 115/230V, QC1072$365⁹⁹

Century SQ1152 energy efficient 1.5 HP square flange pool pump motor, front view

Century Energy Efficient Motor, Full Rated, 1.5 HP, 230v, SQ1152$407⁹⁹

Century B227SE 3/4 HP 56J frame threaded shaft pool pump motor

Century 56J Threaded UR .75 HP 115/230V Pool Pump Motor, B227SE$269⁹⁹

Century Centurion Pro HSQ095 square flange pool pump motor, 0.95 THP 48Y

Century Centurion Pro Square Flange Motor, 0.95 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, HSQ095$274⁹⁹

Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661$367⁹⁹

Product details

The Century B2846 is a full rated square flange pool and spa pump motor. It produces 1/2 HP, or 0.37 kW, at 3450 rpm on 230/115 volts, single phase, in a 56Y frame with a threaded shaft.

Nameplate detail

Service factor is 1.95, current is listed at SF 5.4/10.8 A, and the motor is thermally protected with an open dripproof enclosure rated to a 50 C ambient. Insulation is class F, it runs on two poles, and rotation is counterclockwise viewed from the pump end. Overall length is 12.40 inches with a frame length of 8.00 inches.

Shaft and bearings

The shaft is 1/2 inch threaded stainless steel, 0.625 in diameter with a 0.91 inch extension. Ball bearings sit at both the drive end and the opposite drive end, and the frame is rolled steel. It is a permanent split capacitor design, switchless, built to UL 1081.

Fitment

Century lists this motor for use with the Pentair Challenger, the Pentair Pinnacle, and the Jandy Stealth SHPF/SHPM series. Square flange motors look alike, so check the flange, the frame and the shaft against the motor you are pulling off before you order.

Specifications
Brand	Century
Manufacturer part number	B2846
UPC	786674012241
Type	Full rated square flange pool and spa pump motor
Horsepower	1/2 Hp, 0.37 kW
Speed	3450 rpm
Voltage	230/115 V
Service factor	1.95
Frame	56Y, nameplate P56Y
Enclosure	Open dripproof
Thermal protection	Thermally protected
Ambient temperature	50 C
Current	SF 5.4/10.8 A
Shaft	1/2 threaded, stainless steel
Bearings	Sealed ball, drive end and opposite drive end
Overall length	12.40"
Fits	Pentair Challenger, Pentair Pinnacle, Jandy Stealth SHPF/SHPM
Shipping weight	23.65 lb
Ships	Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a full rated or an up rated motor?

Full rated. Century lists the B2846 as a full rated 1/2 HP motor with a 1.95 service factor.

What voltage does it run on?

It is a single phase dual voltage motor listed at 230/115 V, 60 Hz.

Which pumps does it go on?

It is listed for the Pentair Challenger and Pinnacle pumps and the Jandy Stealth SHPF/SHPM series. Confirm frame, flange and shaft against the motor you are removing.

What are the shaft and frame?

A 56Y frame, shown on the nameplate as P56Y, with a 1/2 inch threaded stainless steel shaft. Shaft diameter is listed at 0.625 and shaft extension at 0.91 inches.
