Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102) In stock$380⁹⁹

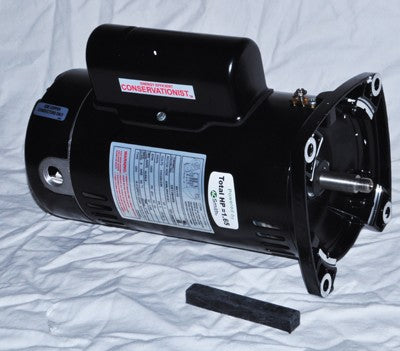

Century QC1102 1 HP full rated 48Y square flange pool pump motor

Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102)

Name: Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102)
Brand: Century Motors
SKU: AOS-60-5216
Price: 380.99 USD
Availability: InStock

Ask a questionMPN QC1102

$380⁹⁹

FREE Delivery

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Full rated 1 HP true 1 HP output, not an up rated label on a smaller motor.
Dual voltage wires for 115 V or 208-230 V single phase, 3450 RPM.
48Y square flange threaded shaft and square flange, the standard Sta-Rite pump mount.
Sta-Rite fit replaces the motor on Dura-Glas II and Max-E-Glas II P4R, P4RA, P4E and P4EA pumps.
Two-compartment design a Century two-compartment pool and filter motor with the wiring separated from the motor body.
Not for California this motor does not meet California Title 20 and cannot be shipped to or installed in California.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102)

Century Motors

Century Energy Efficient Motor Full Rated 1 HP, 115/208 (QC1102)

$380⁹⁹

Select

Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$339⁹⁹

Select

Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$619⁹⁹

Select

Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$411⁹⁹

Select

Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$339⁹⁹

Select

Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$319⁹⁹

Select

Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$287⁹⁹

Subtotal

Similar products

Other products people compare with this one.

Century ST1152 energy efficient full rated 1.5 HP pool pump motor, front view

Century Energy Efficient Pump Motor, Full Rated, 1.5 HP, 115/230V, ST1152$410⁹⁹

Century USN1152 energy efficient pool pump motor, 1.5 HP

Century Energy Efficient Motor, Max Rated, 1.5 HP, 115/208-230V, USN1152$490⁹⁹

Century B2982 1 HP two speed full rated pool pump motor, 230 V, Y56Y frame

Century 1 HP Pool Motor, 2 Speed, Energy Efficient Full Rate, 230V, B2982$460⁹⁹

Century B2858 1.5 HP full rated pool pump motor, front right view

Century 1.5 HP Full Rated Pool Pump Motor, 115/230V, Single Speed, B2858$471⁹⁹

Century QC1072 full rated 3/4 HP 48Y frame pool pump motor, 115/230V

Century Motor, Full Rated, 48Y Frame, .75 HP, 3450 RPM, 115/230V, QC1072$365⁹⁹

Century B122 1 HP keyed full rated pool and spa pump motor, 115/230V

Century Keyed Full Rated Pool and Spa Pump Motor, 1 HP, 115/230V, B122$321⁹⁹

Century ST1072 full rated 0.75 HP pool pump motor, 115/230V

Century Pump Motor, Full Rated, 0.75 HP, 115/230v, ST1072$288⁹⁹

Century Motors AO Smith Threaded Shaft Motor 1HP 115V/230V 56 Round Frame Full-Rate Energy Efficient | CT1102$383⁹⁹

Century Motors A.O. Smith Keyed Motor 1.5HP 115V-230V Full-Rate Energy Efficient | SK1152$409⁹⁹

Century SN1152 1.5 HP full rated NorthStar replacement pool pump motor, 56J C-face with threaded shaft

Century NorthStar Replacement Pool Pump Motor, 1.5 HP Full Rated, 208-230/115V, 56J Threaded Shaft, SN1152$536⁹⁹

Century B2983 full rated two speed pool pump motor, 1.5 HP 1.47 SF 230V

Century Full-Rated Two-Speed Motor, 1.5 HP 1.47 SF 230V (B2983)$570⁹⁹

Century B2748 square flange full rated 2 HP pool and spa pump motor

Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$524⁹⁹

Century E-Plus B2841V1 1 HP square flange pool pump motor

Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$379⁹⁹

Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view

Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$358⁹⁹

Century B229SE 1.5 HP threaded shaft up rated pool pump motor

Century B229SE Threaded Up Rated 1.5 HP Pool Pump Motor, 115/230V$344⁹⁹

Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V

Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$313⁹⁹

Century B2846 Square Flange Full Rated Pool and Spa Pump Motor, 0.5 HP$275⁹⁹

Century SQS1102R square flange 1 HP two speed 230V pool pump motor

Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$550⁹⁹

Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor

Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$569⁹⁹

Century UST1202 2 HP up rated 56J round flange pool pump motor

Century 2 HP Up Rated 56J Motor, 115/230V, UST1202$403⁹⁹

Product details

The Century QC1102 is a full rated 1 HP, two-compartment pool and filter motor: 3450 RPM, 115/208-230 V, 48Y frame, square flange, threaded shaft. It is the replacement motor for Sta-Rite Dura-Glas II and Max-E-Glas II pumps, models P4R, P4RA, P4E and P4EA.

Matching the old motor

Full rated means the nameplate 1 HP is real, with the service factor on top. If the motor coming off is a full rated 1 HP with a square flange and threaded shaft, this is the like for like swap. The dual voltage windings run on 115 V or 208-230 V single phase, set by the connection on the motor.

California

The QC1102 is not compliant with California Title 20, Section 1605.3(g)6, the energy efficiency rule for pool pumps and replacement motors. It cannot be sold or installed in California and we do not ship it there. Century's compliant V-Green EVO variable speed motors, EVC130, EVC165, EVC225, EVQ130, EVQ165 and EVQ225, are the alternative for California pools.

About Century

Century, a Regal brand, builds NEMA 48 and 56 frame motors for in-ground and above ground pools, spas, pool cleaners and jetted tubs.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Specifications
Brand	Century
Manufacturer part number	QC1102
UPC	786674029331
Type	Two-compartment pool filter motor
Horsepower	1 HP, full rated
Speed	3450 RPM
Voltage	115/208-230 V
Frame	48Y
Flange	Square
Shaft	Threaded
Fits	Sta-Rite Dura-Glas II and Max-E-Glas II P4R, P4RA, P4E, P4EA pumps
California	Not Title 20 compliant, cannot ship to California
Shipping weight	28.8 lb
Ships	Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this motor fit?

It is the replacement motor for Sta-Rite Dura-Glas II and Max-E-Glas II pumps, models P4R, P4RA, P4E and P4EA, and any other pump that takes a 48Y square flange motor with a threaded shaft at 1 HP.

Can you ship this to California?

No. The QC1102 is not compliant with California Title 20 energy regulations for pool pump motors and cannot be sold or installed in California. Century's V-Green EVO motors, EVC130, EVC165, EVC225, EVQ130, EVQ165 and EVQ225, are the compliant alternatives.

What does full rated mean?

A full rated 1 HP motor delivers a genuine 1 HP with its service factor on top. An up rated motor labeled 1 HP actually delivers less. Match full rated to full rated when replacing.

What voltage does it run on?

Either 115 V or 208-230 V single phase. Check the wiring diagram on the motor and set it to match your supply before powering it.
